7.Detailed Descriptions
256

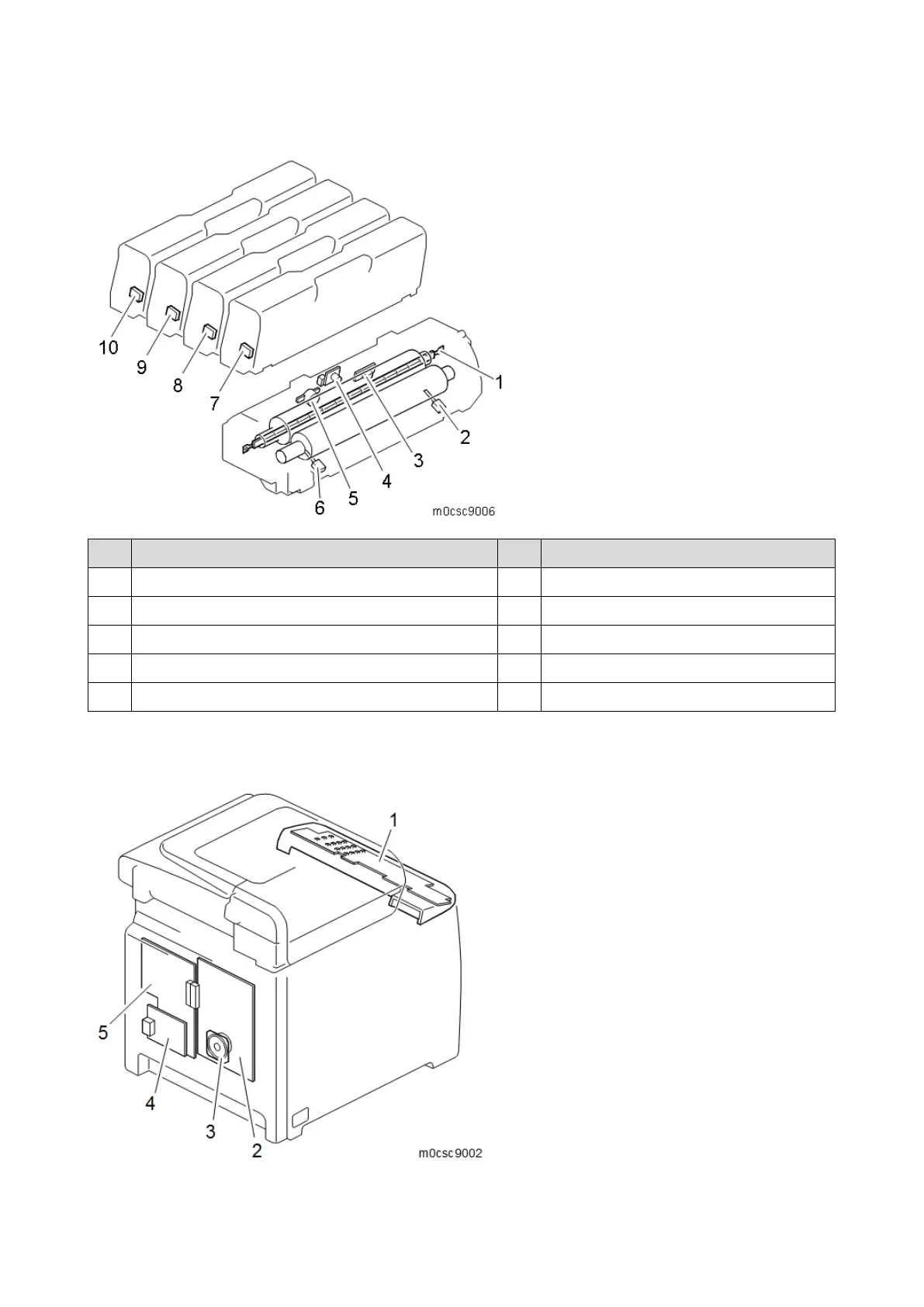

Fusing Unit, ID Chip
No.
Name
No.
Name
1
Fusing lamp (H1)
6
Pressure roller thermistor (end) (TH4)
2
Pressure roller thermistor (center) (TH3)
7
ID chip (K)
3
Fusing NC sensor (S1)
8
ID chip (Y)
4
Fusing thermopile (TH2) *At main machine side
9
ID chip (M)
5
Fusing thermostat (TH1)
10
ID chip (C)
Boards
