OPC Charge and Cleaning

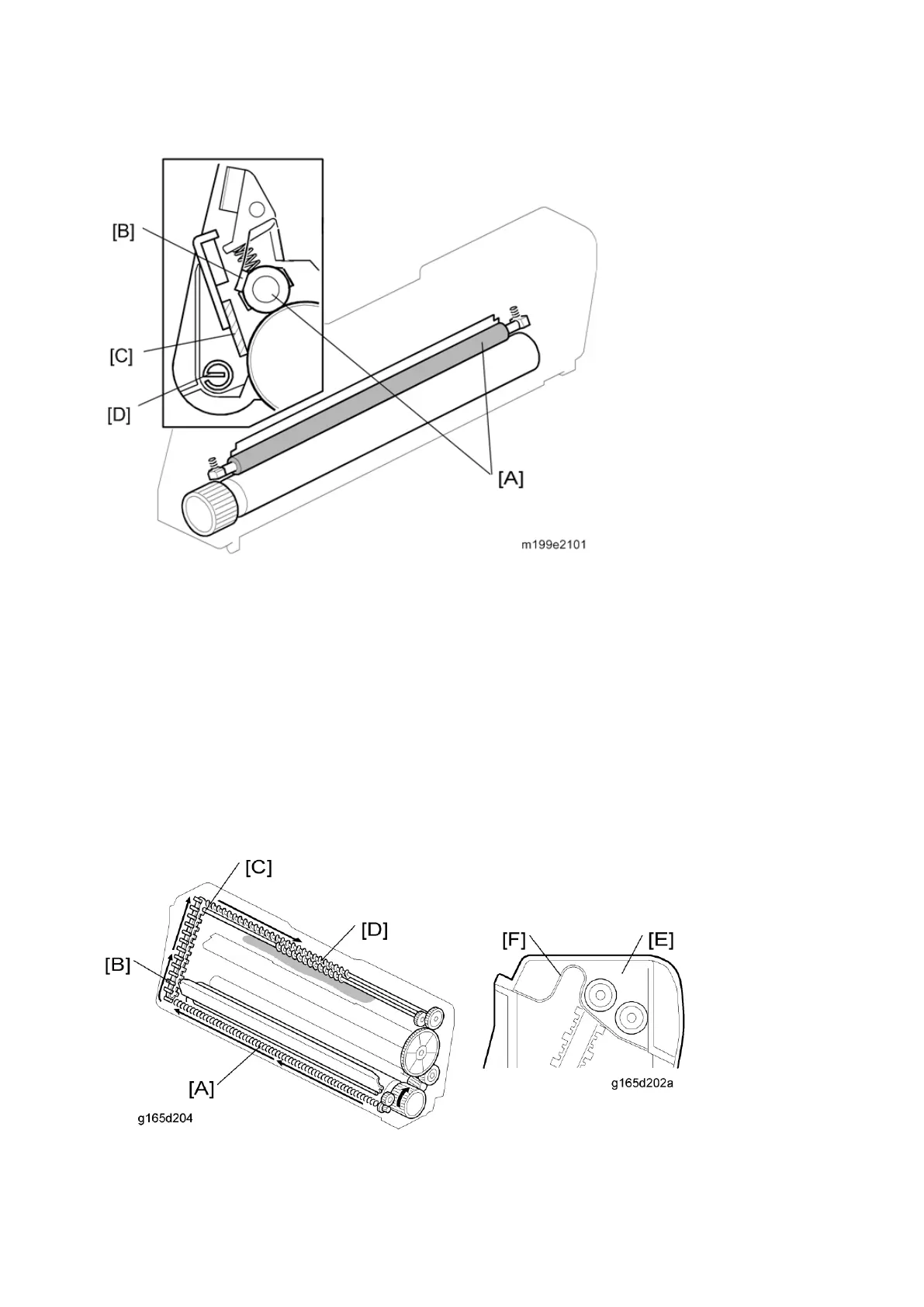

This machine uses a charge roller [A].
The charge roller gives the drum surface a negative charge. The high voltage supply board, which is at
the left side of the machine, applies a dc and ac voltage (at a constant current) to the roller. The ac
voltage helps to make sure that the charge given to the drum is as constant as possible.
The machine automatically controls the charge roller voltage when process control is done.
The charge roller cleaner [B], which always touch the charge roller, cleans the charge roller. The OPC
cleaning blade [C] removes the waste toner on the OPC. The toner collection coil [D] moves the toner to
the waste toner transport belt.
Waste Toner Collection
The waste toner collection coil [A] transports waste toner from the OPC to the right side of the AIO.
After that, the waste toner transport belt [B], which is driven by the transport belt shaft [C], lifts waste

Ricoh P C301W Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	9.4 s
Time to first page (color, normal)	9.8 s
Print speed (black, normal quality, A4/US Letter)	25 ppm
Internal memory	256 MB
Built-in processor	-
Sound pressure level (printing)	- dB
Cables included	AC
Included cartridge capacity (black)	1000 pages
USB 2.0 ports quantity	1
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Mobile printing technologies	Apple AirPrint, Google Cloud Print, Mopria Print Service
Duplex media weight	60 - 90 g/m²
Paper tray media types	Plain paper
Paper tray media weight	60 - 163 g/m²
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Total input capacity	250 sheets
Total output capacity	150 sheets
Maximum input capacity	751 sheets
Auto document feeder (ADF) input capacity	1 sheets
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (printing)	1300 W
Energy Star Typical Electricity Consumption (TEC)	0.3 kWh/week
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	65000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c, PCL 6, PostScript 3
Product color	Black, White
Market positioning	Home & office
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	450 mm
Width	400 mm
Height	334 mm
Weight	25000 g
