Ricoh P C301W Field Service Manual

7.Detailed Descriptions
267
toner up to the waste toner container [E].
The collected waste toner is moved to the left side of the AIO by the waste toner collection coil [D].
A flexible sheet [F] separates the unused toner area from the waste toner area. The waste toner area
becomes larger when toner is consumed.
Toner Mixing and Transport

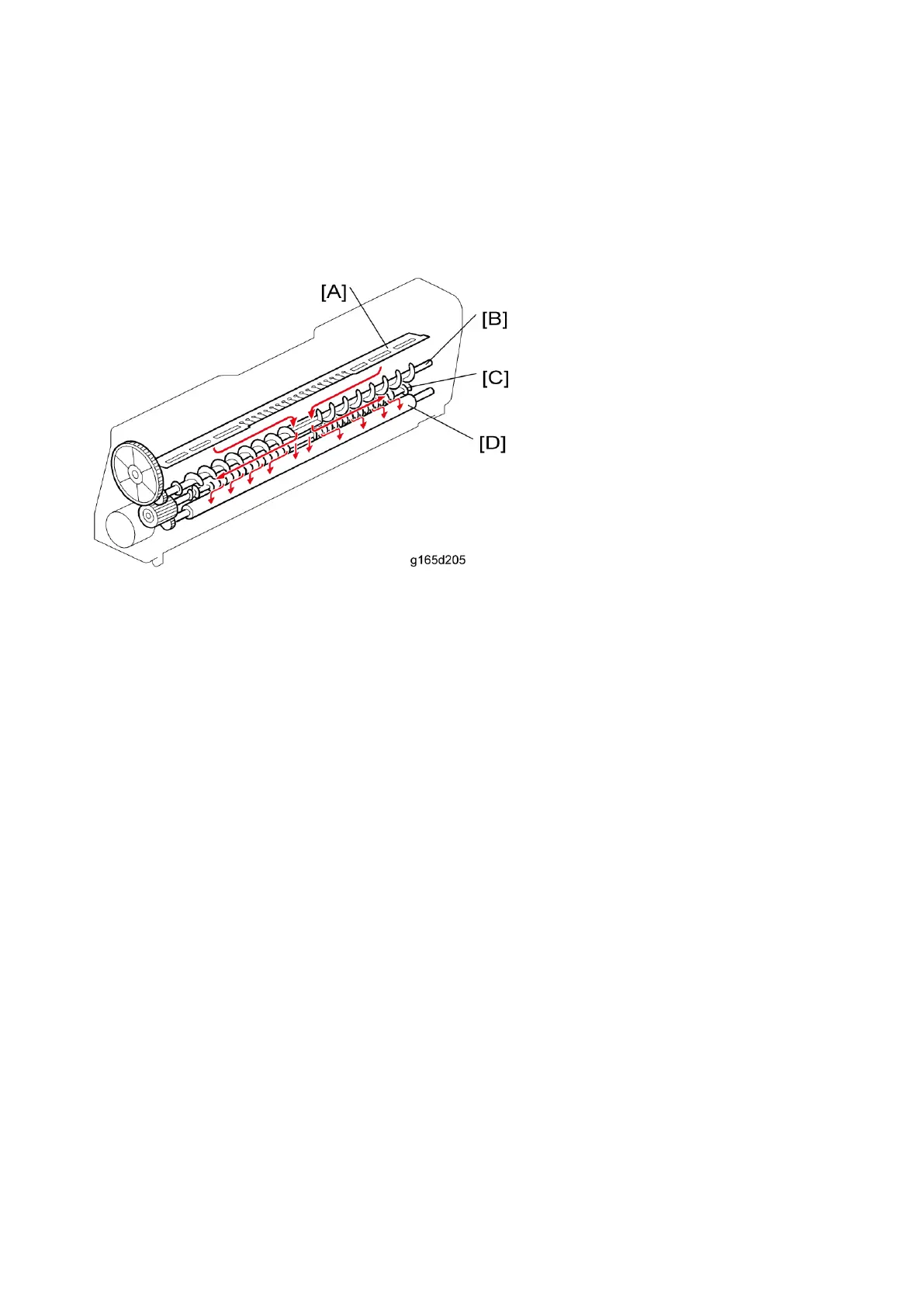

The toner moves as shown in the above drawing. The toner agitator [A] mixes the toner so that it is
transported evenly to the mixing rollers. The upper mixing roller [B] moves toner to the center, then the
lower mixing roller [C] moves toner to the right and left sides. Finally, the toner supply roller [D] supplies
toner to the development roller. This mixing mechanism prevents toner hardening and uneven image
density in the outputs.
Toner Near End/ End Detection
To detect the toner near-end and the toner end, the machine uses:
• Pixel count (memory chip on the AIO)
• AIO rotation distance (memory chip on the AIO)
After near-end, it is estimated that 200 pages (A4, 5% coverage) can be printed until toner end occurs.
When toner end detects, the machine halts.

Ricoh P C301W Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	9.4 s
Time to first page (color, normal)	9.8 s
Print speed (black, normal quality, A4/US Letter)	25 ppm
Internal memory	256 MB
Built-in processor	-
Sound pressure level (printing)	- dB
Cables included	AC
Included cartridge capacity (black)	1000 pages
USB 2.0 ports quantity	1
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Mobile printing technologies	Apple AirPrint, Google Cloud Print, Mopria Print Service
Duplex media weight	60 - 90 g/m²
Paper tray media types	Plain paper
Paper tray media weight	60 - 163 g/m²
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Total input capacity	250 sheets
Total output capacity	150 sheets
Maximum input capacity	751 sheets
Auto document feeder (ADF) input capacity	1 sheets
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (printing)	1300 W
Energy Star Typical Electricity Consumption (TEC)	0.3 kWh/week
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	65000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c, PCL 6, PostScript 3
Product color	Black, White
Market positioning	Home & office
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	450 mm
Width	400 mm
Height	334 mm
Weight	25000 g
