Ricoh P C301W Field Service Manual

7.Detailed Descriptions
277
The heat from the fusing lamp [A] is reflected by the reflector [B] and heats the fusing sleeve belt [C].
The nip pad [D] at the sleeve belt side is pushed against the pressure roller [E] and keeps the nip width
on the sleeve belt.
The pressure roller is operated by a gear train driven by the fusing motor. The fusing sleeve belts turns
with the rotation of the pressure roller (there is no drive mechanism for fusing sleeve belt itself).
The fusing entrance sensor in the fusing unit is provided to detect paper jams in the fusing unit.
Overheat Protection

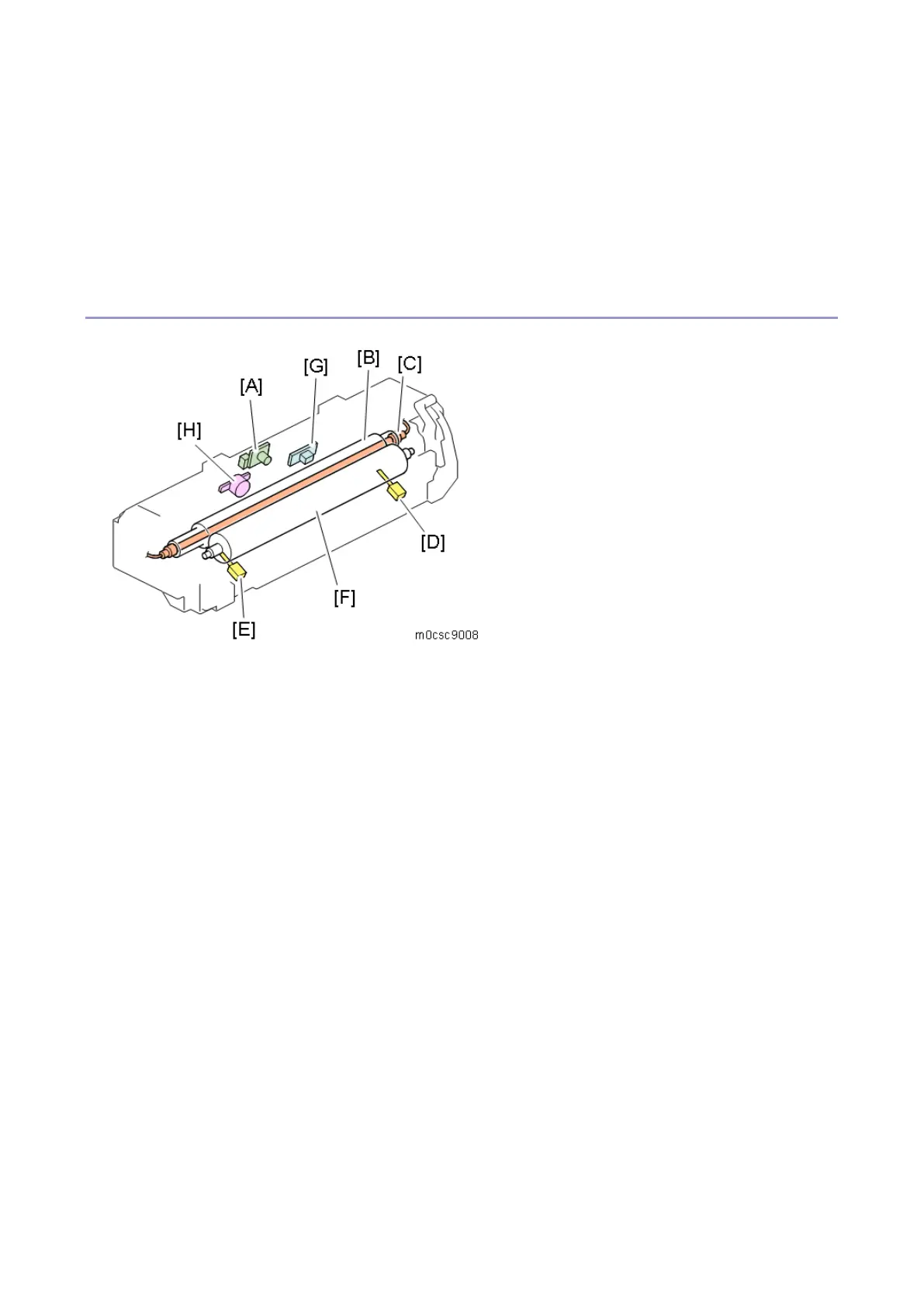

The fusing thermopile [A] on the machine side monitors the surface temperature of the fusing sleeve
belt [B] and turns off the power supply to the fusing lamp [C] if it detects a temperature above 240°C.
The pressure roller thermistor (center) [D] and pressure roller thermistor (end) [E] monitor the surface
temperature of the pressure roller [F] and turn off the power supply to the fusing lamp if either thermistor
detects a temperature higher than 248°C.
If a high temperature is detected, the machine will issue a high temperature (software) alert, SC543,
SC563, or SC573, and then shut down machine operation. After the SC code has been issued, you
must enter the SP mode to reset the error with SP menu.
The fusing NC sensor [G], which also monitors the surface temperature of the fusing sleeve belt, cuts
the power supply to the fusing lamp if it detects a high temperature. If this occurs the machine will issue
SC554-00, the high temperature (hardware) alert, and shut down machine operation.
After the machine issues SC554-00 there is a strong possibility that the fusing unit has been damaged,
so the fusing unit must be replaced with a new unit, followed by the execution of SC reset in the SP
mode.
The fusing thermostat [H] provides protection against overheating if either the fusing thermopile or
pressure roller thermistors fail. If the temperature reaches 185°C the bimetal strip in the thermostat will
cut the power supply to the machine and shut it down. After the bimetal of the thermostat triggers a

Ricoh P C301W Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	9.4 s
Time to first page (color, normal)	9.8 s
Print speed (black, normal quality, A4/US Letter)	25 ppm
Internal memory	256 MB
Built-in processor	-
Sound pressure level (printing)	- dB
Cables included	AC
Included cartridge capacity (black)	1000 pages
USB 2.0 ports quantity	1
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Mobile printing technologies	Apple AirPrint, Google Cloud Print, Mopria Print Service
Duplex media weight	60 - 90 g/m²
Paper tray media types	Plain paper
Paper tray media weight	60 - 163 g/m²
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Total input capacity	250 sheets
Total output capacity	150 sheets
Maximum input capacity	751 sheets
Auto document feeder (ADF) input capacity	1 sheets
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (printing)	1300 W
Energy Star Typical Electricity Consumption (TEC)	0.3 kWh/week
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	65000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c, PCL 6, PostScript 3
Product color	Black, White
Market positioning	Home & office
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	450 mm
Width	400 mm
Height	334 mm
Weight	25000 g
