4.Replacement and Adjustment
58
MF model:

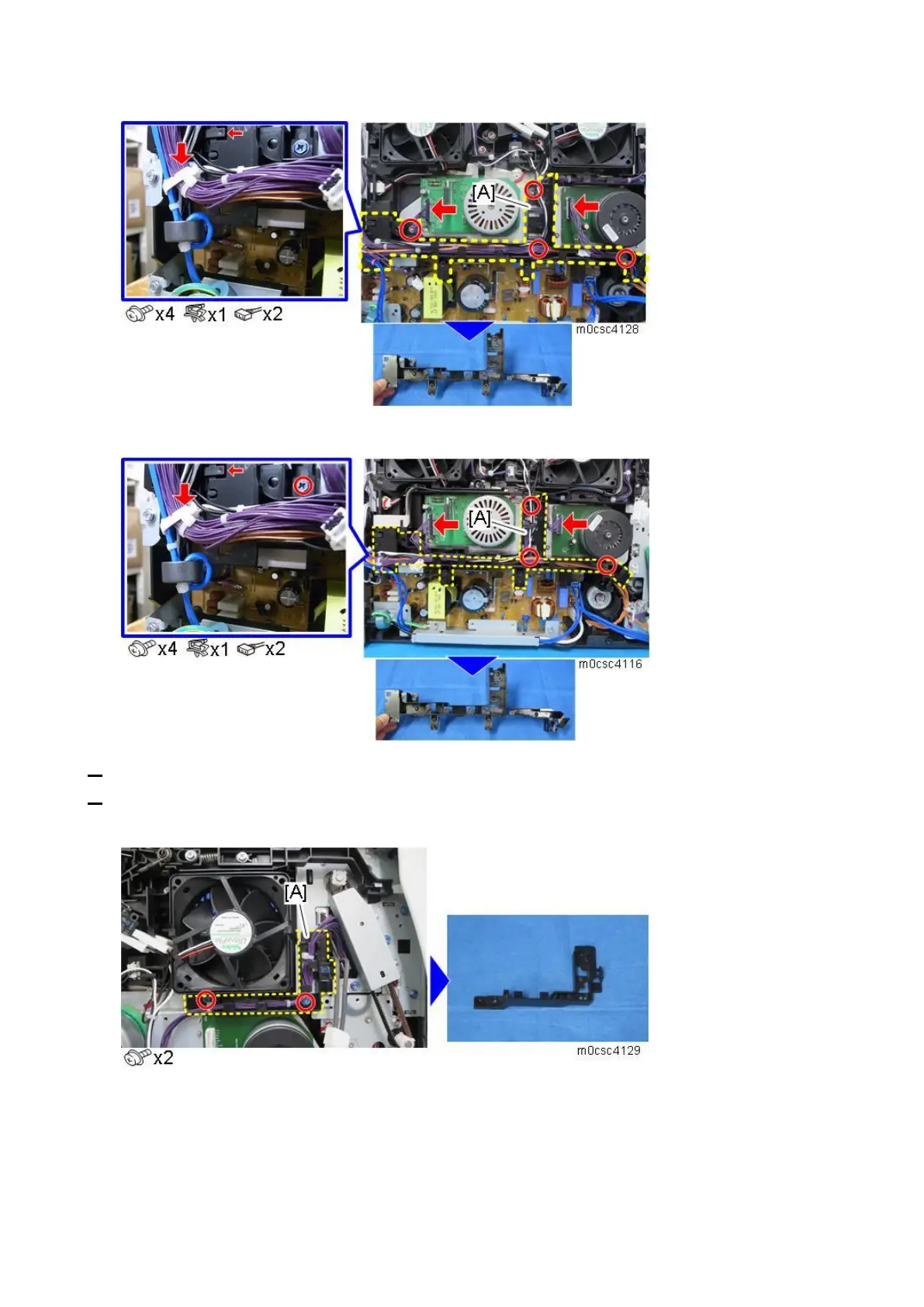

7. On the MF model only, remove the interlock switch base. (Interlock Switches (SW1/SW2/SW3))
8. Release all harnesses on the harness guide to remove the upper harness guide [A].
Printer model:
MF model:
