4.Replacement and Adjustment
59

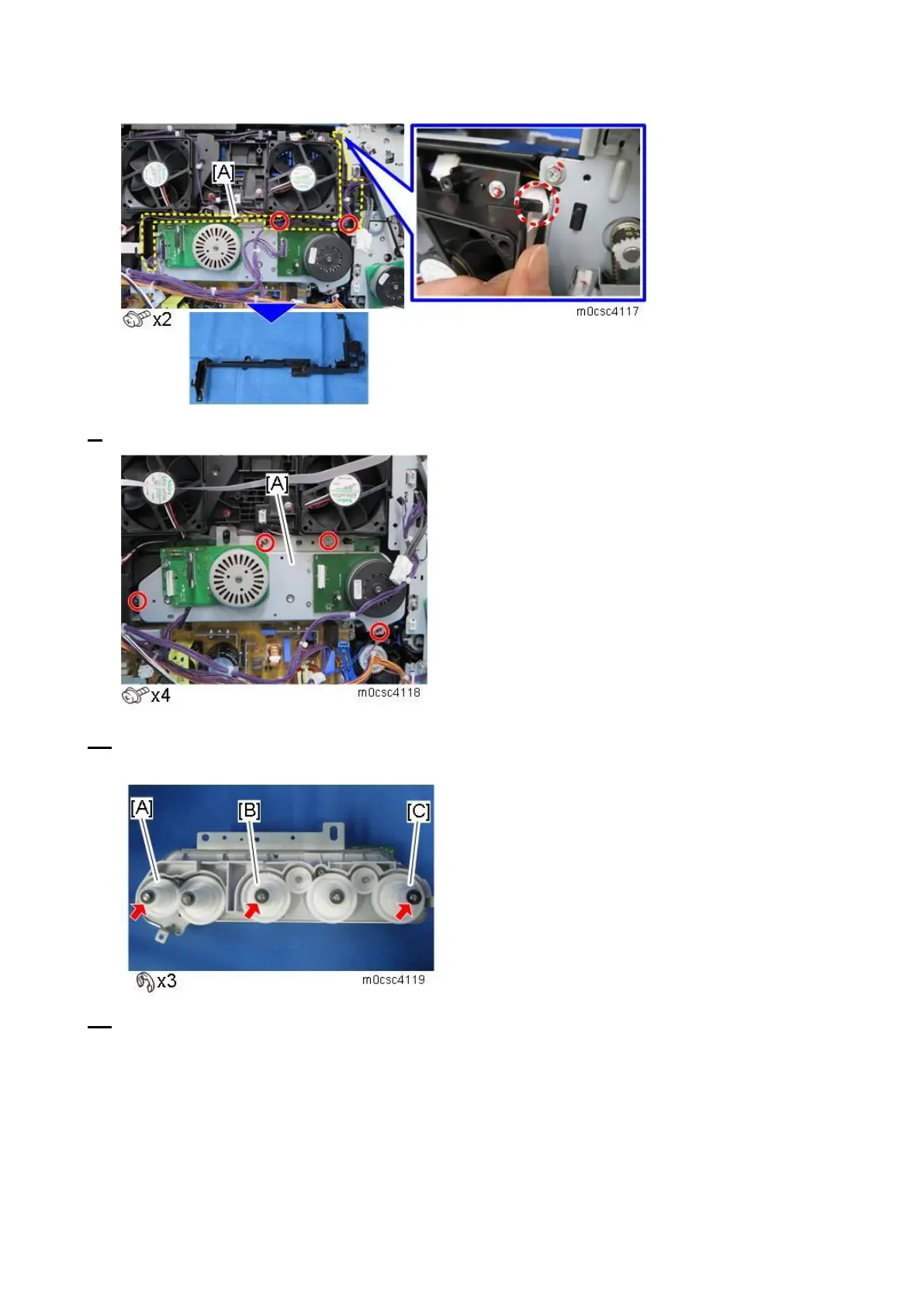

9. Remove the drive unit [A].
10. Release each snap ring and remove the black AIO gear [A], yellow AIO gear [B], and cyan AIO
gear [C].
11. Remove the drive unit guide [A].
