32 Instructions for Use · Version 13.0
2 General description cobas b 123 POC system
System components
Printer

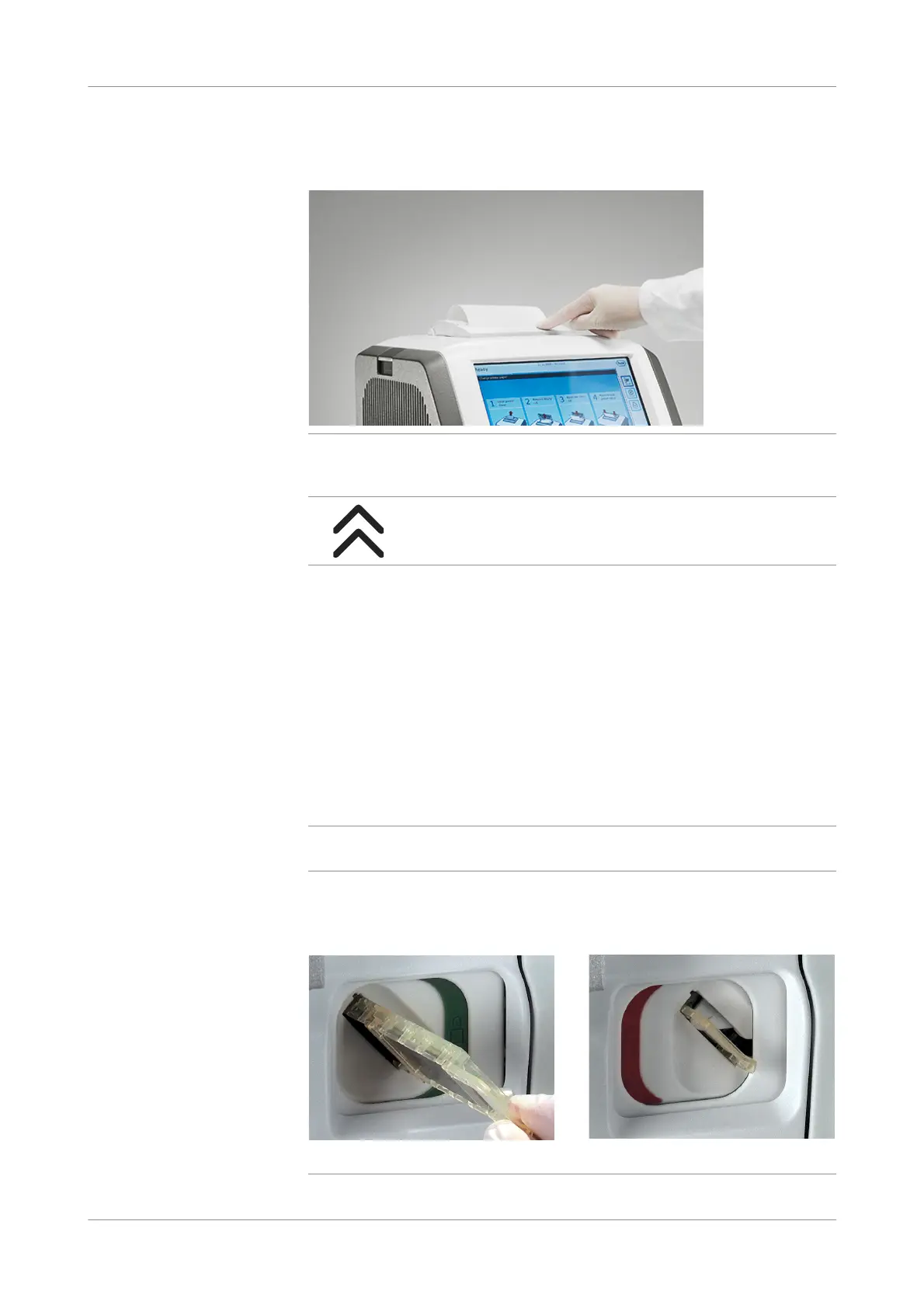

Figure 2-3 Thermal printer
The thermal printer is a part of the user interface module.
Front door
The measuring chamber module with the Sensor Cartridge, the Fluid Pack with the
sample input module, and the AutoQC module with the AutoQC Pack (optional) are
located behind the front door.
Measuring chamber module
The measuring chamber module is located behind the front door.
q
Make sure that the green area of the measuring chamber is visible before removing the
Sensor Cartridge from the measuring chamber module.
The measuring chamber has a red and a green area. When you see the red area, the
Sensor Cartridge cannot be removed from the measuring chamber module. When
you see the green area, the Sensor Cartridge can be removed.
Figure 2-4 Measuring chamber module
Paper feed button on the printer
A Position for replacement (green) B Position in normal operation (red)
