cobas b 123 POC system 5 Installation and put out of operation
Installing the instrument
Installing the instrument
WARNING
Installing the instrument
r You must perform a QC measurement on 3 levels after installing the instrument.
p To install the instrument
1
Connect the barcode scanner and, if necessary, the network connection to their
corresponding interfaces on the back of the instrument.

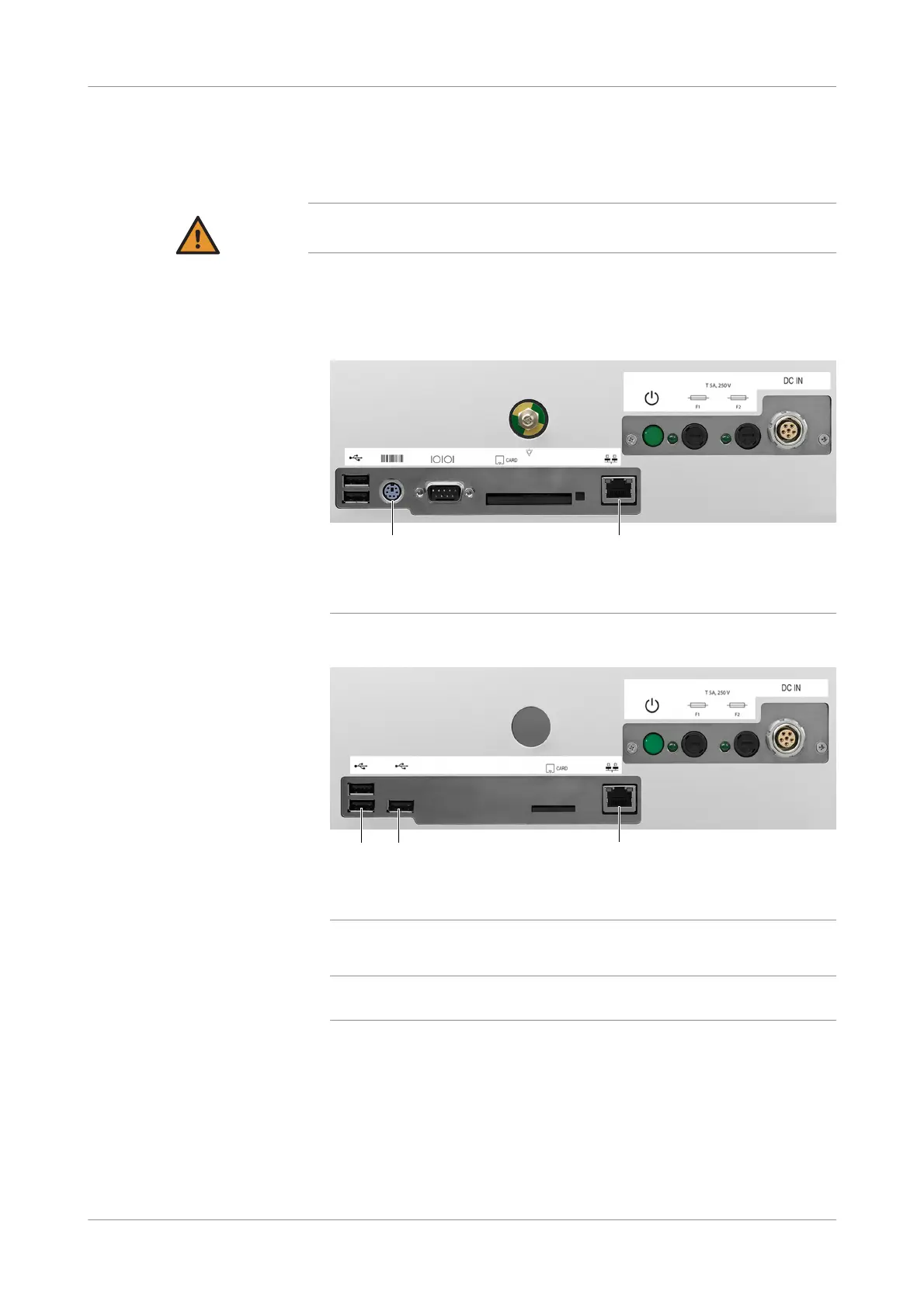

Figure 5-1 Barcode scanner and network connection interface locations:
Hardware version 1
Figure 5-2 Barcode scanner and network connection interface locations:
Hardware version 2
q
Do not hotplug the Barcode scanner. It will not be recognized when the instrument is
already running and the PS/2 port is electrically not specified for hot-plugging.
A Barcode scanner interface
B Network connection interface: Ethernet (RJ 45)
A USB interface
B Network connection interface: Ethernet (RJ 45)
A
B
A
B
A
