Schweitzer Engineering Laboratories SEL-701 - Figure 5.16 Set Relay\Front Serial Port Settings

Date Code 20010719 701 Motor Protection Relay
Front-Panel Operation
Front-Panel Main Menu
5.13

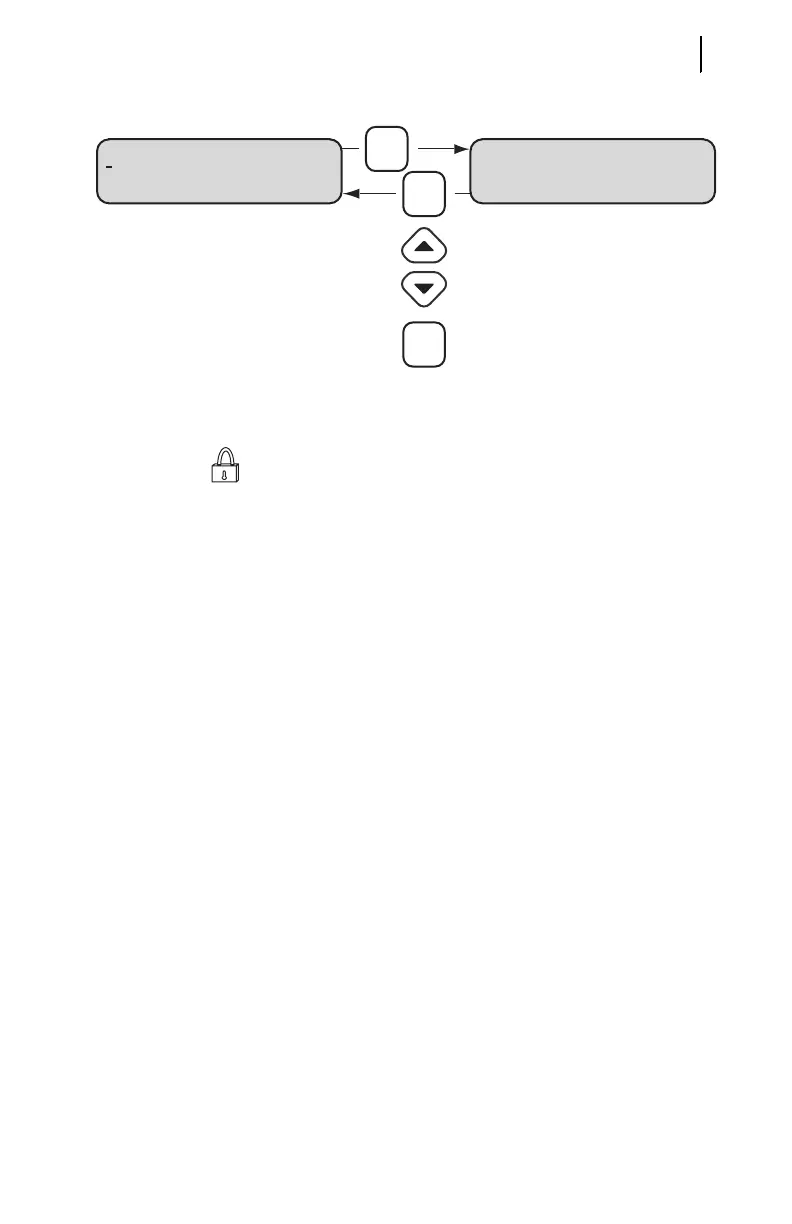

Figure 5.16 Set Relay\Front Serial Port Settings.
Front Port Baud rate (300-19200)
Press these keys to
move within the list.
Press this key to
select a setting category.
Set Relay Menu Item Front Serial Port Settings
SPEED=2400
Press {ENTER} to select
and edit a displayed setting.
You must be in
Access Level 2 to edit
a setting. The relay will
request the Level 2 password
if you have not entered it during
this session or if input IN4 is not asserted.
ESC
ENTER
ENTER
