Schweitzer Engineering Laboratories SEL-701 - Figure 5.36 Main Menu: Reset Thermal Model Function; Figure 5.37 Main Menu: Reset Learned Param Function; Figure 5.38 Reset Learned Param\Reset Cooling Time Function

701 Motor Protection Relay Date Code 20010719
Front-Panel Operation
Front-Panel Main Menu
5.22

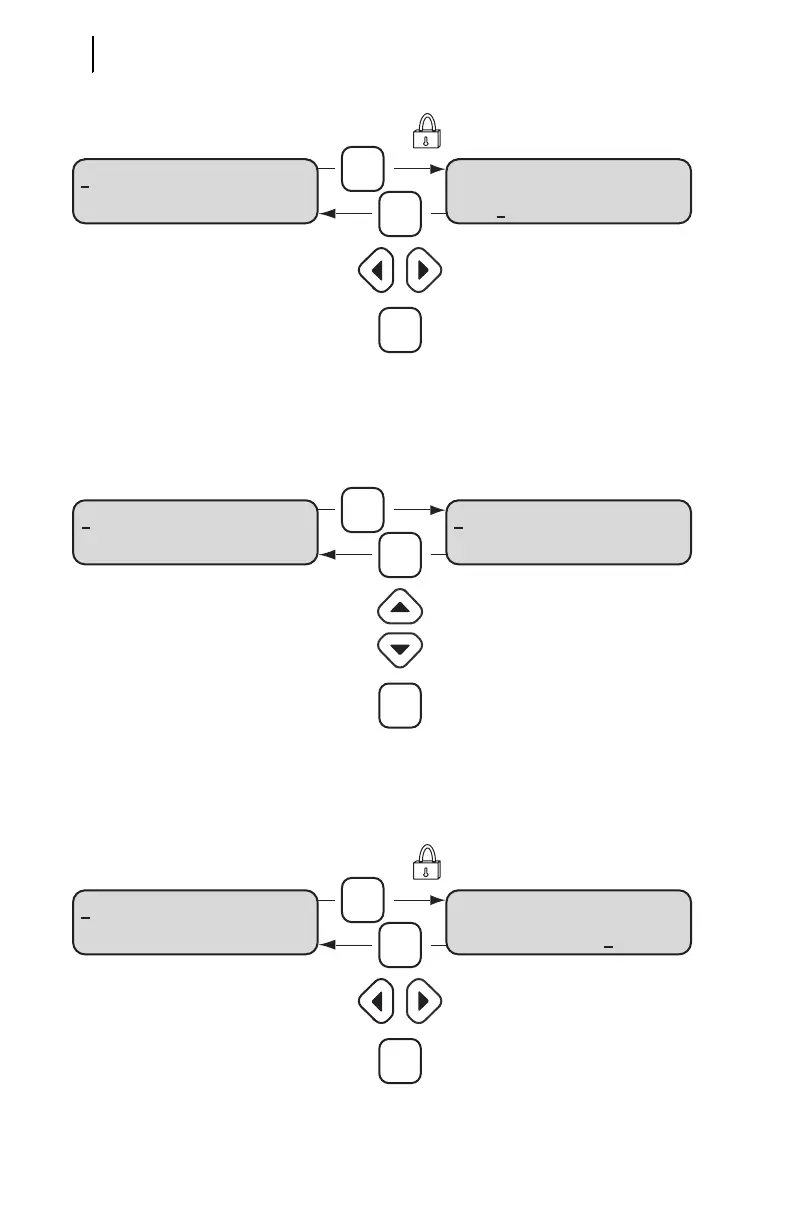

Figure 5.36 Main Menu: Reset Thermal Model Function.
Figure 5.37 Main Menu: Reset Learned Param Function.
Figure 5.38 Reset Learned Param\Reset Cooling Time Function.
To move between Yes and No.
Yes: Clears Thermal Model;
No: Returns to Main Menu.
To select underlined option.
Reset Thermal Model Reset Thermal Model?
Yes No
Main Menu Item
Reset Thermal Model Function
ESC
ENTER
ENTER
Reset Learned Param Reset Cooling Time
↑
Rst Start Therm Cap ↓
Press these keys
to move within the list.
Press this key to select
an underlined menu item.
Main Menu Item Reset Learned Param Menu
ESC
ENTER
ENTER
To move between Yes and No.
Yes: Resets Learned CoolingTime;
No: Returns to Reset Learned Param Menu.
To select underlined option.
Reset Cooling Time Reset Learned
Cooling Time? Yes No
Reset Learned Param Menu Item
Reset Learned Cooling Time Function
ESC
ENTER
ENTER
