Date Code 20010719 701 Motor Protection Relay

Front-Panel Operation

Front-Panel Main Menu

5.17

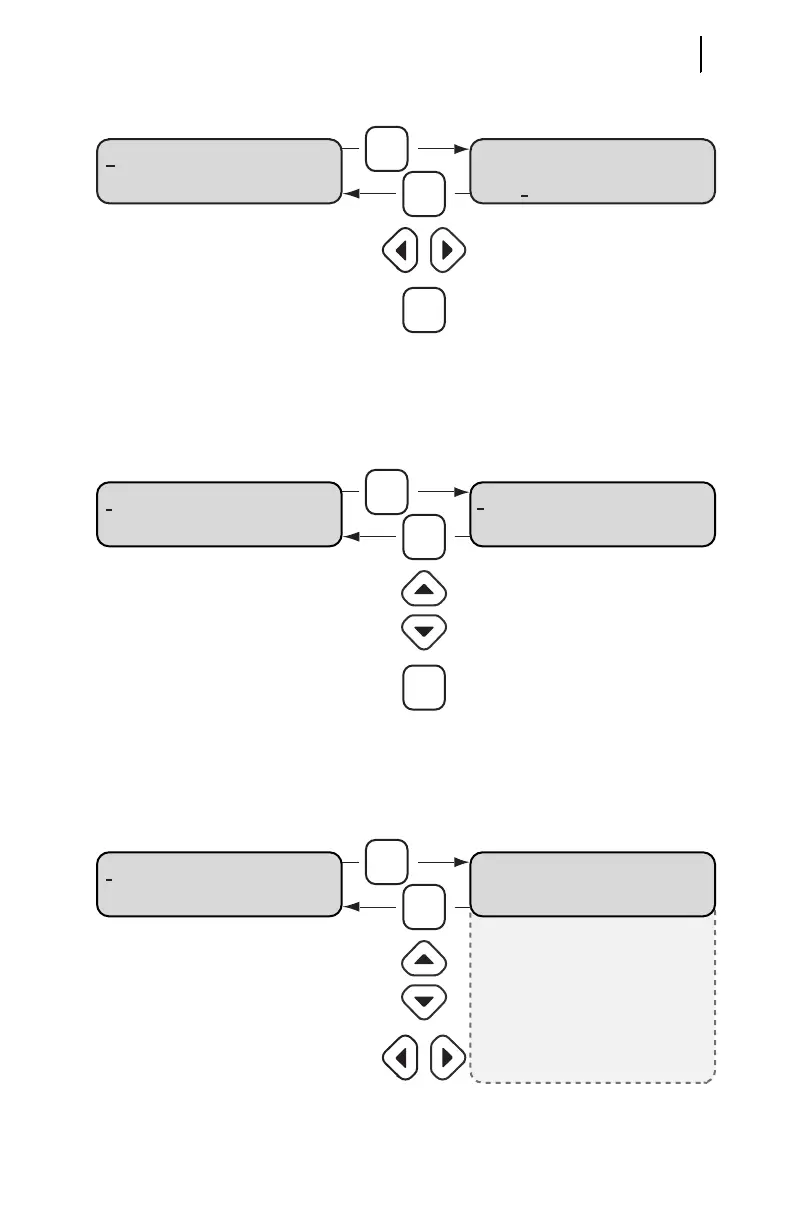

Figure 5.23 Meter Values Reset Functions.

Figure 5.24 Main Menu: History Data Function.

Figure 5.25 History Data\Display History Function.

To move between Yes and No.

Yes: Initiates action;

No: Returns to Meter Values Menu.

To select underlined option.

Reset Demand Peaks Reset Demand Peaks?

Yes No

Meter Values Menu Item Reset Demand Peaks Function

ESC

ENTER

History Data

Display History

Clear History

Main Menu Item

History Data Menu

Press these keys

to move within the list.

Press this key to select

an underlined menu item.

ESC

ENTER

Trip Type:

1 kVA= 452.6

PF = 0.85 LAG

Move among

data for this event.

Display History

1 Date: 03/18/1999

Time: 06:31:02.257

Move among events.

History Data Menu Item

ESC

ENTER

Display History Function

Main Page
