701 Motor Protection Relay Date Code 20010719

Front-Panel Operation

Front-Panel Main Menu

5.8

Front-Panel Main Menu

All access to information and relay settings through the front panel starts at the

relay Main Menu. The remainder of this section describes the use of the main and

lower level menus.

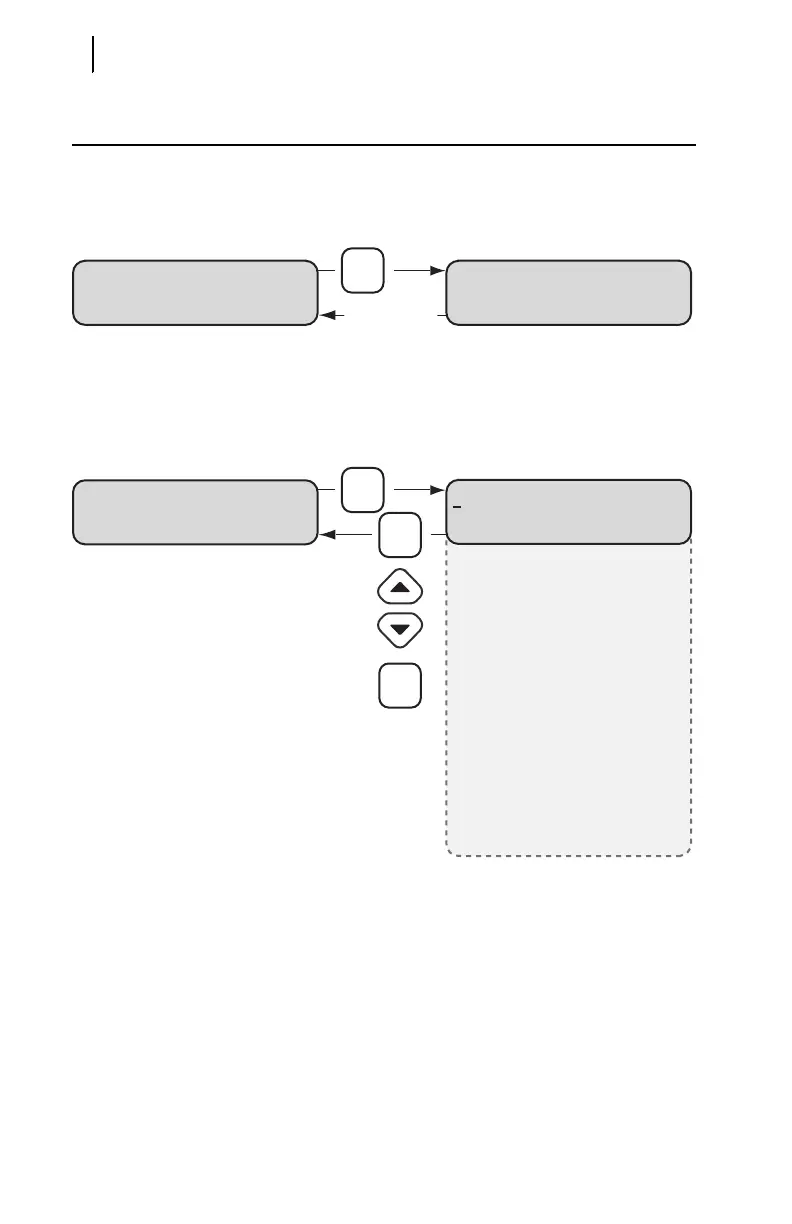

Figure 5.7 Activate Front-Panel Display.

Figure 5.8 Front-Panel Main Menu.

Blank Display Default Meter Display

IA= IB=

IC= V= V

Front-Panel

Timeout Expires

ESC

Press these keys

to move within the list.

Press this key to select

an underlined menu item.

Default Meter Display Main Menu

Start Motor ↑

Emergency Restart ↓

Stop Motor

Reset Trip/Targets

Set Relay

Meter Values

History Data

Motor Statistics

Status of Relay

View Relay Word

Pulse Out Contact

Reset Thermal Model

Reset Learned Param

IA= IB=

IC= V= V

ESC

ENTER
