Schweitzer Engineering Laboratories SEL-701 - Section 2: Installation; Figure 2.2 SEL-701 Relay Cut and Drill Dimensions

Date Code 20010719 701 Motor Protection Relay
Installation
Panel Cut & Drill Plans
2.3

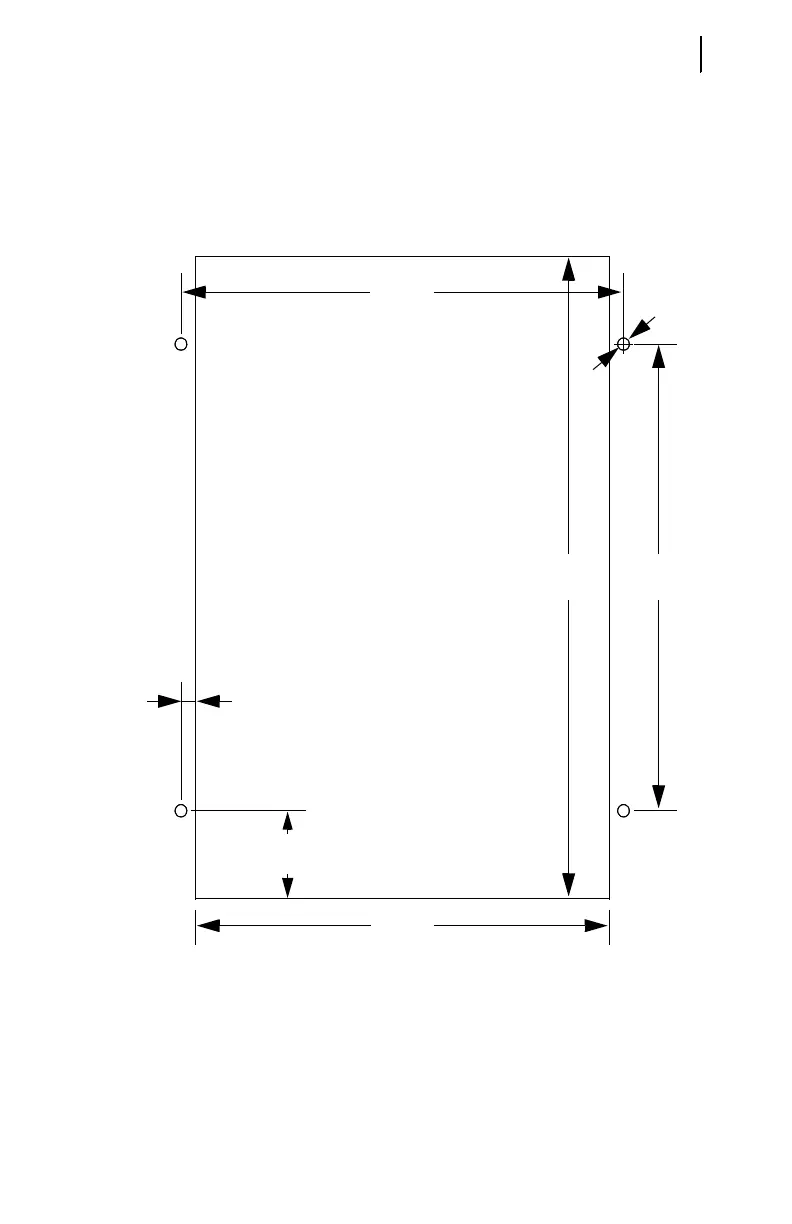

Figure 2.2 SEL-701 Relay Cut and Drill Dimensions.
5.88 in
(149.4 mm)
1.26 in (typ)
(32.0 mm)
5.50 in
(139.7 mm)
φ0.188 in
(4.78 mm)
4 places
5.88 in
(149.4 mm)
0.19 in (typ)
(4.8 mm)
8.40 in
(213.4 mm)
