Schweitzer Engineering Laboratories SEL-701 - Figure B.19 Load-Loss Logic; Voltage Option Included

To Next Page

To Previous Page

Date Code 20010719 701 Motor Protection Relay

SELOGIC

Control Equations & Relay Logic

Selected Relay Logic Diagrams

B.41

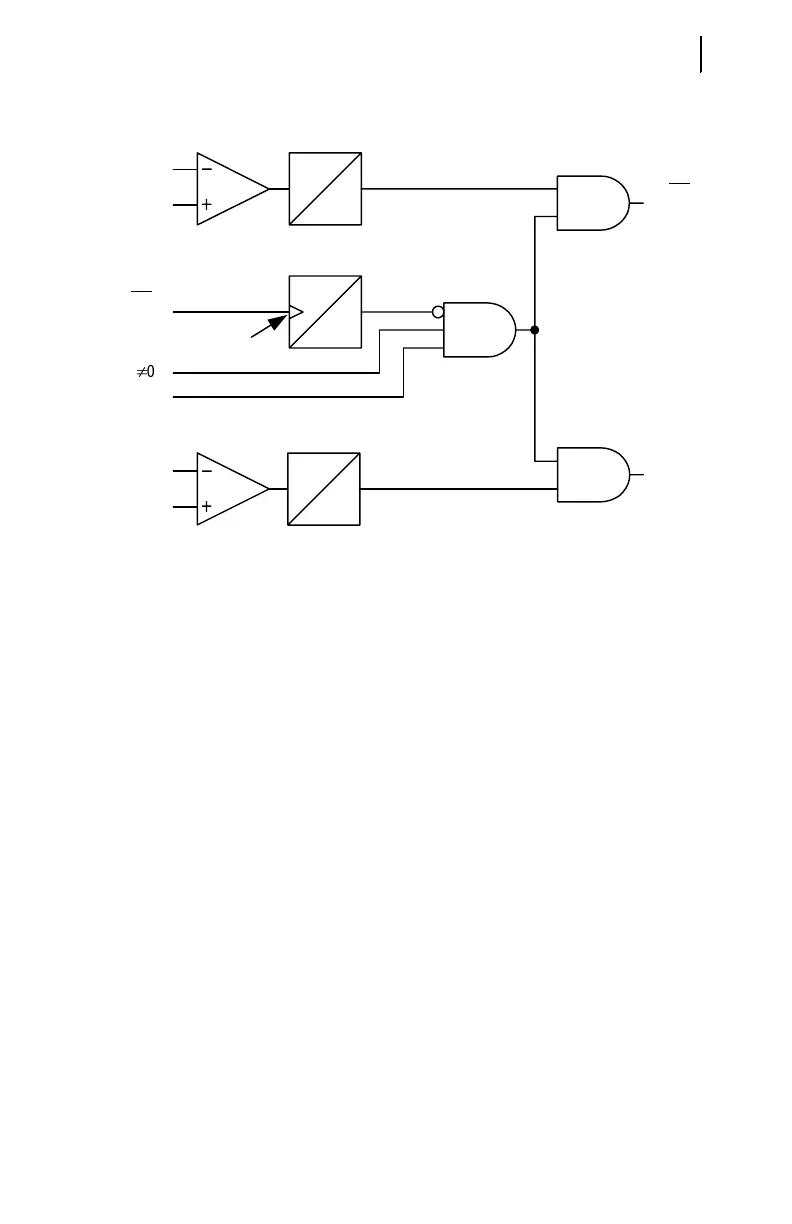

Figure B.19 Load-Loss Logic; Voltage Option Included.

LLTDLY =

LLSDLY =

LLADLY =

LLTPU =

LLAPU =

Load Loss Trip Delay Setting

Load Loss Start Delay Setting

Load Loss Alarm Delay Setting

Load LossTrip Pickup Setting

Load Loss Alarm Pickup Setting

STARTING =

RUNNING =

LOSSTRIP =

LOSSALRM =

P3 =

Motor is Starting

Motor is Running

Load Loss Trip

Load Loss Alarm

Three-Phase Power

STARTING

RUNNING

LLAPU



OFF

Rising

Edge Detect

Load Loss

Trip Delay Timer

Relay

Word

Bits

LOSSTRIP

LOSSALRM

LLTPU

LLAPU

Load Loss

Start Delay Timer

Relay

Word

Bits

LLTDLY

LLSDLY

Load Loss

Alarm Delay Timer

LLADLY
