Schweitzer Engineering Laboratories SEL-701 - Figure 5.17 Set Relay\Rear Serial Port Settings; Figure 5.18 Set Relay\Date Function

701 Motor Protection Relay Date Code 20010719
Front-Panel Operation
Front-Panel Main Menu
5.14

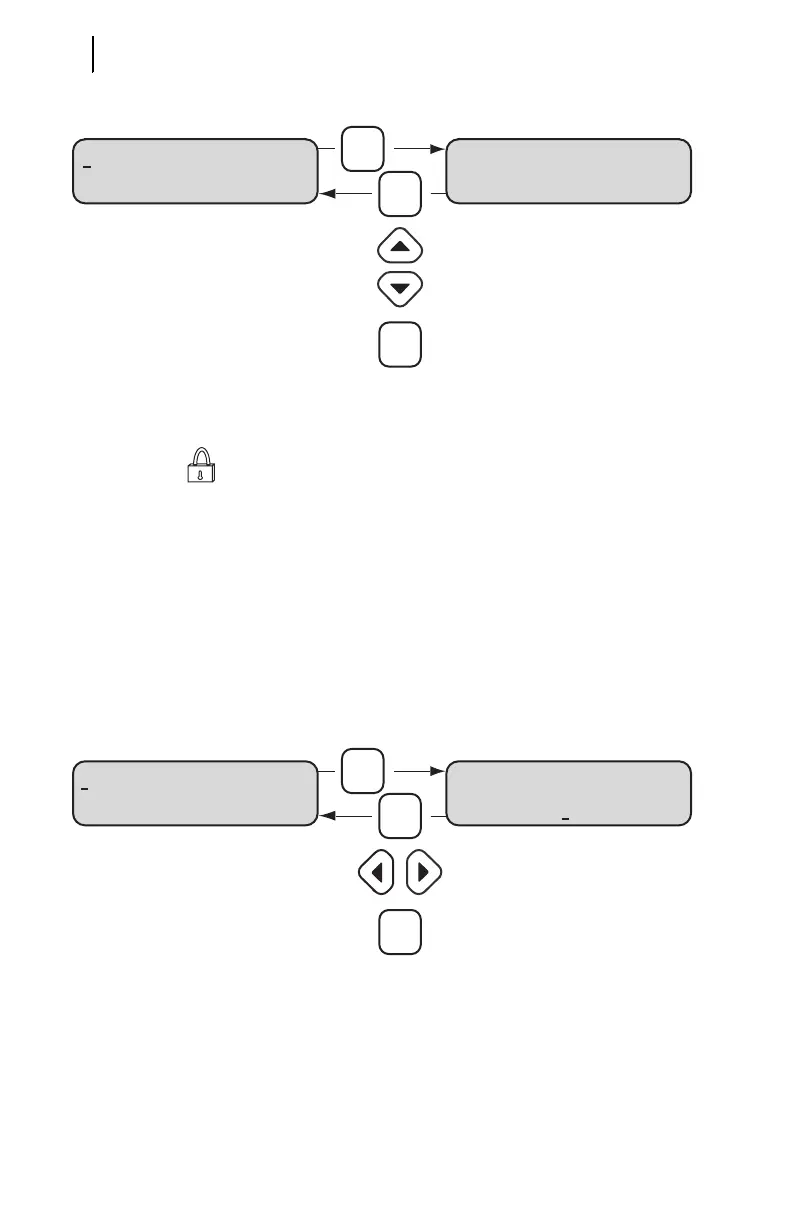

Figure 5.17 Set Relay\Rear Serial Port Settings.
Figure 5.18 Set Relay\Date Function.
Rear Port
Protocol (ASCII, MOD
Press these keys to
move within the list.
Press this key to
edit the displayed setting.
Set Relay Menu Item Rear Serial Port Settings
PROTO=ASCII
Press {ENTER} to select
and edit a displayed setting.
You must be in
Access Level 2 to edit
a setting. The relay will
request the Level 2 password
if you have not entered it during
this session or if input IN4 is not asserted.
ESC
ENTER
ENTER
To move between Yes and No.
Yes:Initiates action;
No: Returns to Set Relay Menu.
To select underlined option.
Date Date= 03/18/1999
Edit? Yes No
Set Relay Menu Item
Date Function
ESC
ENTER
ENTER
