Introduction & Specifications
SEL-701 Relay Models
1.4
SEL-701 Relay Models
This instruction manual covers the SEL-701 Relay models listed in Table 1. 2.
Table 1.2 SEL -701 Relay Mod els
Refer to Relay Part Number on page 1.8 for more information on creating an
SEL-701 Relay part number. When differences between the SEL-701 Relay models in
Table 1.2 are explained, model numbers are referenced for clarity.

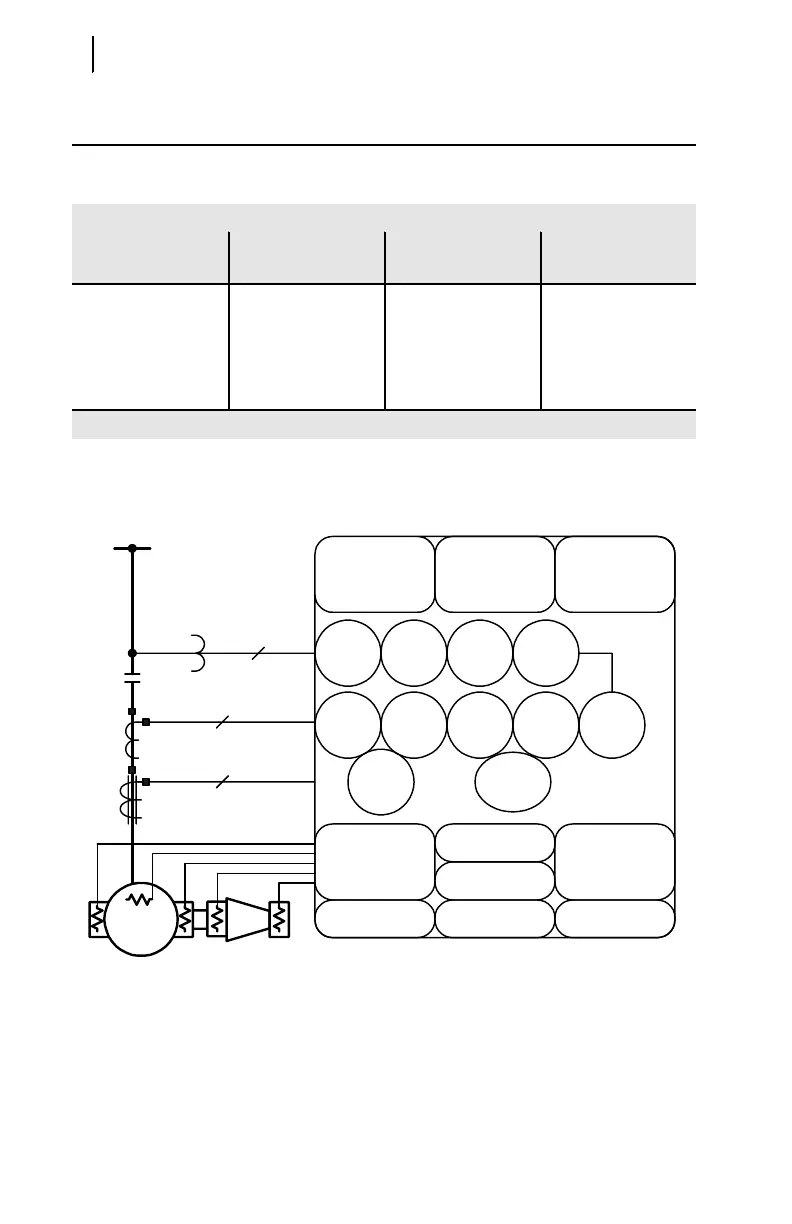

Figure 1.1 SEL-701 Relay Functional Description.
Table 1.2 SEL-701 Relay Models
SEL-701 Relay
Model Number
Internal
RTD Inputs Voltage Inputs Current Inputs
0701000X No No IA, IB, IC, IN
0701010X 11 No IA, IB, IC, IN
0701001X No Wye or Delta IA, IB, IC, IN
0701011X 11 Wye or Delta IA, IB, IC, IN
Motor
Load
Four Programmable
Contact Outputs,
Plus ALARM
Six Programmable
Contact Inputs
ASCII and MODBUS
Protocol Support
37 55 8127/59
Up to 11 Internal
or 12 Remote
RTD Inputs
Load Profile
Sequential Events
Operating Statistics Event Reports
Motor Start
Reports and Trending
Battery-Backed Clock
Load Jam
Load Loss
3
Optional
Voltage Input
3, 2, 1
1
46 49 6650 47
50N
