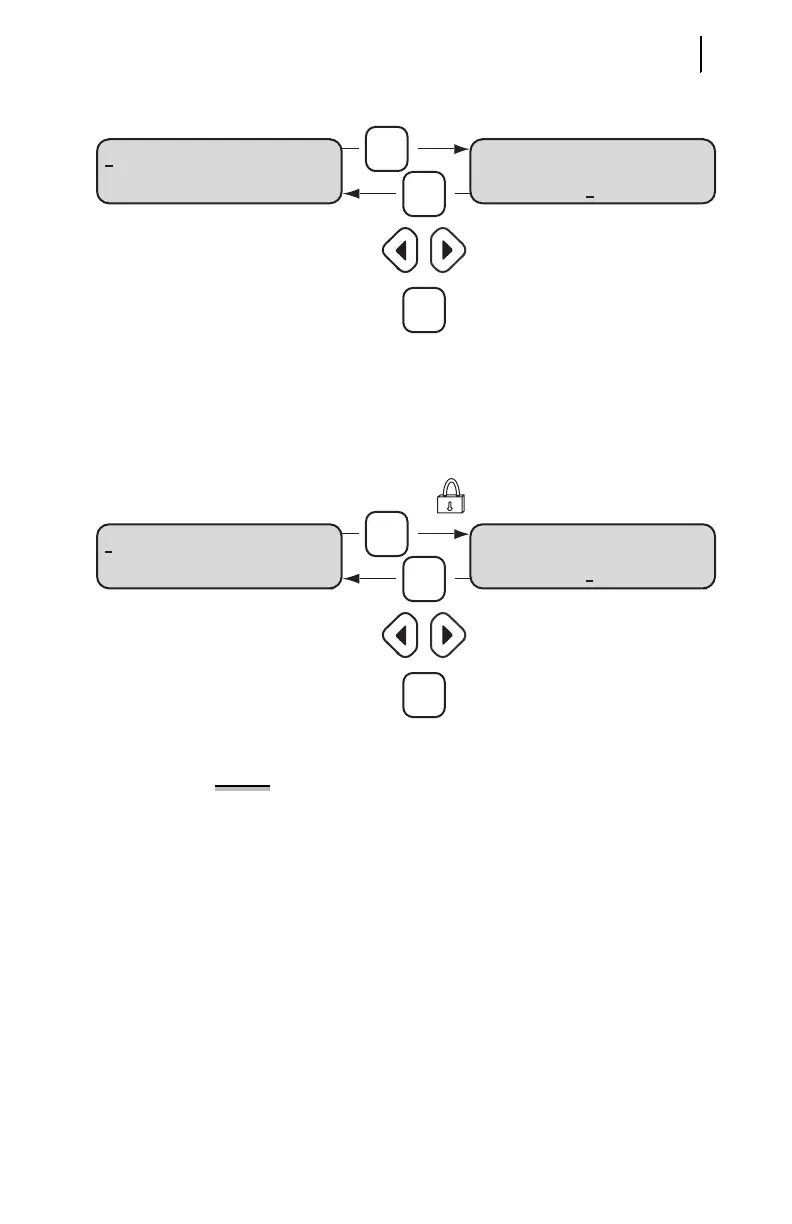

Figure 5.19 Set Relay\Time Function.
Figure 5.20 Set Relay\Password Function.
NOTE: Edit the Access Level 2 password using the steps
described in Access Level 2 Password Entry on page 5.6 for
password entry. Remember that the relay password is case
sensitive. To disable Access Level 2 password protection, set
Password = DISABLE.
To move between Yes and No.
Yes: Initiates action;
No: Returns to Set Relay Menu.
To select underlined option.
Time Time= 06:31:02
Edit? Yes No
Set Relay Menu Item
Time Function
ESC
ENTER
ENTER
To move between Yes and No.
Yes: Initiates action;
No: Returns to Set Relay Menu.
To select underlined option.
Password Password=701
Edit? Yes No
Set Relay Menu Item
ESC
Password Function
ESC
ENTER
ENTER
