Power Quality and Event Analysis
Example Standard 15-Cycle Event Report
Example Standard 15-Cycle Event Report

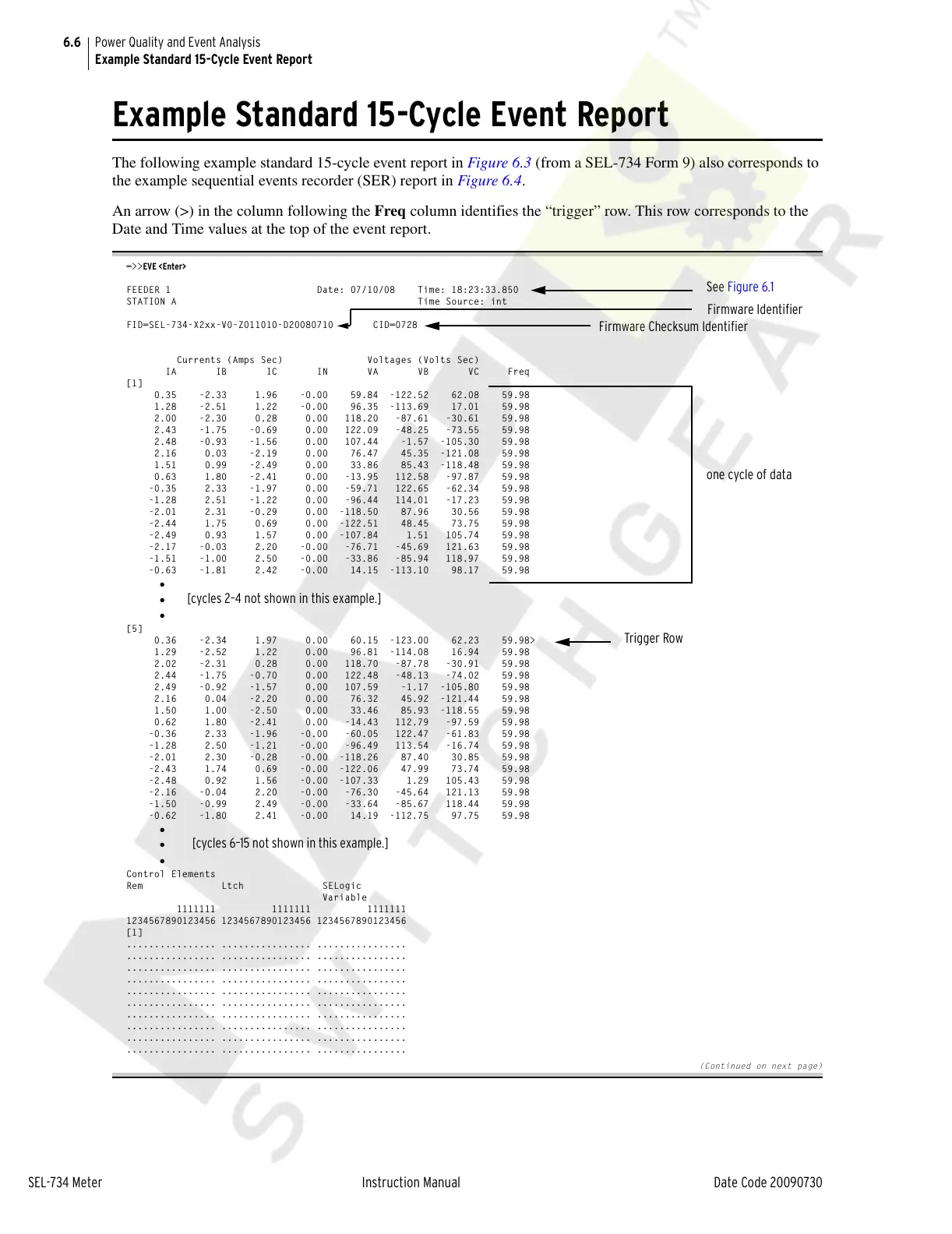

The following example standard 15-cycle event report in Figure 6.3 (from a SEL-734 Form 9) also corresponds to
the example sequential events recorder (SER) report in Figure 6.4.
An arrow (>) in the column following the Freq column identifies the “trigger” row. This row corresponds to the
Date and Time values at the top of the event report.
=>>EVE <Enter>
FEEDER 1 Date: 07/10/08 Time: 18:23:33.850
STATION A Time Source: int
FID=SEL-734-X2xx-V0-Z011010-D20080710 CID=0728
Currents (Amps Sec) Voltages (Volts Sec)
IA IB IC IN VA VB VC Freq
[1]
0.35 -2.33 1.96 -0.00 59.84 -122.52 62.08 59.98
1.28 -2.51 1.22 -0.00 96.35 -113.69 17.01 59.98
2.00 -2.30 0.28 0.00 118.20 -87.61 -30.61 59.98
2.43 -1.75 -0.69 0.00 122.09 -48.25 -73.55 59.98
2.48 -0.93 -1.56 0.00 107.44 -1.57 -105.30 59.98
2.16 0.03 -2.19 0.00 76.47 45.35 -121.08 59.98
1.51 0.99 -2.49 0.00 33.86 85.43 -118.48 59.98
0.63 1.80 -2.41 0.00 -13.95 112.58 -97.87 59.98
-0.35 2.33 -1.97 0.00 -59.71 122.65 -62.34 59.98
-1.28 2.51 -1.22 0.00 -96.44 114.01 -17.23 59.98
-2.01 2.31 -0.29 0.00 -118.50 87.96 30.56 59.98
-2.44 1.75 0.69 0.00 -122.51 48.45 73.75 59.98
-2.49 0.93 1.57 0.00 -107.84 1.51 105.74 59.98
-2.17 -0.03 2.20 -0.00 -76.71 -45.69 121.63 59.98
-1.51 -1.00 2.50 -0.00 -33.86 -85.94 118.97 59.98
-0.63 -1.81 2.42 -0.00 14.15 -113.10 98.17 59.98
•
•
•
[5]
0.36 -2.34 1.97 0.00 60.15 -123.00 62.23 59.98>
1.29 -2.52 1.22 0.00 96.81 -114.08 16.94 59.98
2.02 -2.31 0.28 0.00 118.70 -87.78 -30.91 59.98
2.44 -1.75 -0.70 0.00 122.48 -48.13 -74.02 59.98
2.49 -0.92 -1.57 0.00 107.59 -1.17 -105.80 59.98
2.16 0.04 -2.20 0.00 76.32 45.92 -121.44 59.98
1.50 1.00 -2.50 0.00 33.46 85.93 -118.55 59.98
0.62 1.80 -2.41 0.00 -14.43 112.79 -97.59 59.98
-0.36 2.33 -1.96 -0.00 -60.05 122.47 -61.83 59.98
-1.28 2.50 -1.21 -0.00 -96.49 113.54 -16.74 59.98
-2.01 2.30 -0.28 -0.00 -118.26 87.40 30.85 59.98
-2.43 1.74 0.69 -0.00 -122.06 47.99 73.74 59.98
-2.48 0.92 1.56 -0.00 -107.33 1.29 105.43 59.98
-2.16 -0.04 2.20 -0.00 -76.30 -45.64 121.13 59.98
-1.50 -0.99 2.49 -0.00 -33.64 -85.67 118.44 59.98
-0.62 -1.80 2.41 -0.00 14.19 -112.75 97.75 59.98
•
•
•
Control Elements
Rem Ltch SELogic
Variable
1111111 1111111 1111111
1234567890123456 1234567890123456 1234567890123456
[1]
................ ................ ................
................ ................ ................
................ ................ ................
................ ................ ................
................ ................ ................
................ ................ ................
................ ................ ................
................ ................ ................
................ ................ ................
................ ................ ................
(Continued on next page)
See Figure 6.1
Firmware Identifier
Firmware Checksum Identifier
one cycle of data
[cycles 2–4 not shown in this example.]
Trigger Row
[cycles 6–15 not shown in this example.]
