H.12
SEL-734 Meter Instruction Manual Date Code 20090730
Analog Quantities
Z_MVAH_x_REC 3-phase apparent energy
received for rate x
xx x
Z_MVARH_x_REC 3-phase reactive energy
received for rate x
xx x
Z_MWH_TOTAL_REC Total 3-phase reactive
received energy
xx x
Z-MVARH_TOTAL_REC Total 3-phase reactive
received energy
xx x
Z_MWH_AT_RESET Total 3-phase real energy
at the time of the last
demand reset
xx x
Z_MWH_SINCE_RESET Total 3-phase real energy
since the time of the last
demand reset
xx x
Z_MVAH_AT_RESET Total 3-phase apparent
energy at the time of the
last demand reset
xx x
Z_MVAH_SINCE_RESET Total 3-phase apparent
energy since the time of
the last demand reset
xx x
Z_MVARH _AT_RESET Total 3-phase reactive
energy at the time of the
last demand reset
xx x
Z_MVARH_SINCE_RESET Total 3-phase reactive
energy since the time of
the last demand reset
xx x
Z_MW_x_PD Value, time, and date of
3-phase peak real power
for rate x
xx x
Z_MVA_x_PD Value, time, and date of
3-phase peak apparent
power for rate x
xx x
Z_MVAR_x_PD Value, time, and date of
3-phase peak reactive
power for rate x
xx x
Z_MW_x_REC_PD Value, time, and date of
3-phase received peak real
power for rate x
xx x
Z_MVA_x_REC_PD Value, time, and date
of 3-phase received
peak apparent power
for rate x
xx x
Z_MVAR_x_REC_PD Value, time, and date
of 3-phase received
peak reactive power
for rate x
xx x
Z_PF_AT_MW_1_PD Power factor at the
highest peak real power
for rate x
xx x

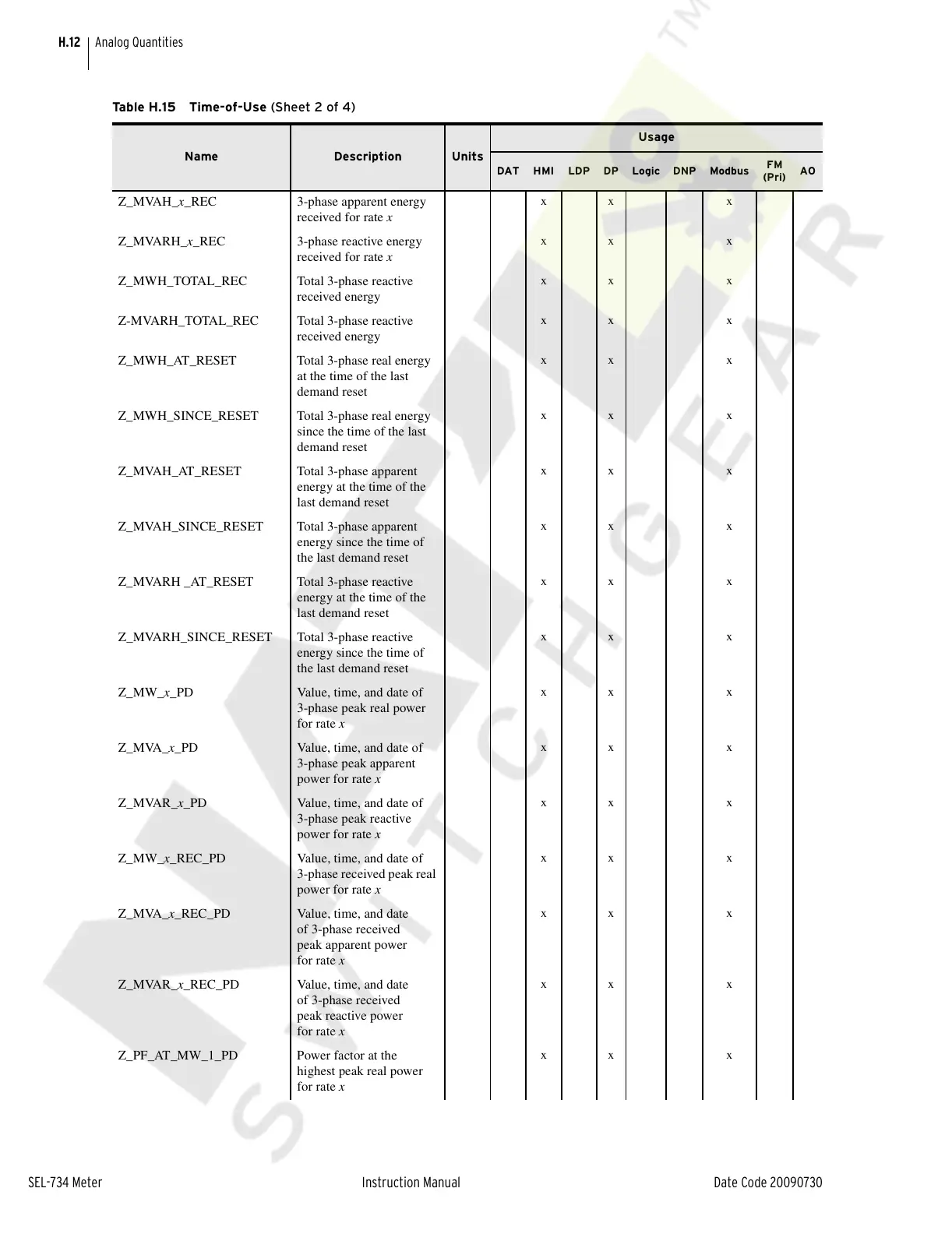

Table H.15 Time-of-Use (Sheet 2 of 4)
Name Description Units
Usage
DAT HMI LDP DP Logic DNP Modbus
FM
(Pri)
AO
