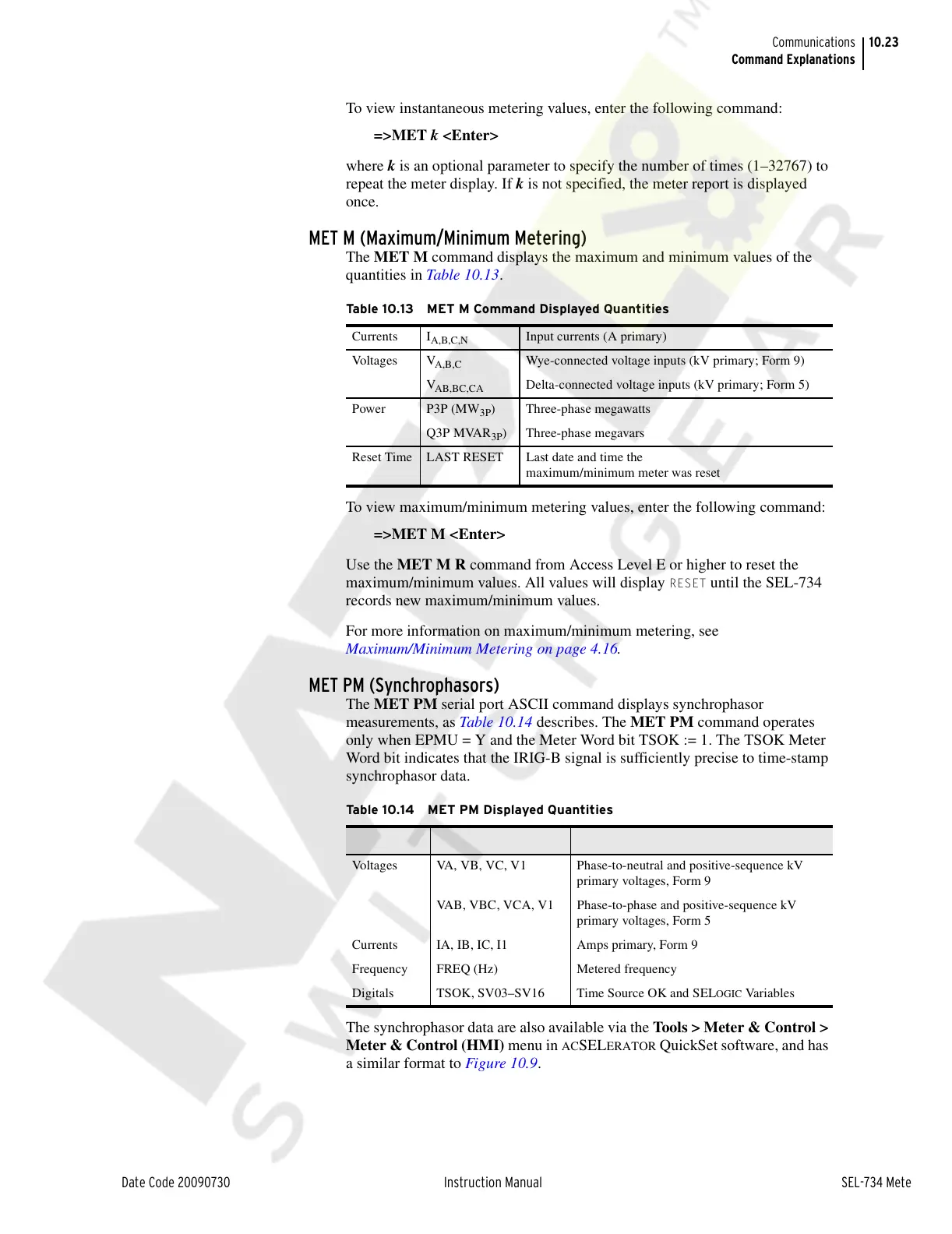

10.23
Date Code 20090730 Instruction Manual SEL-734 Meter
Communications
Command Explanations
To view instantaneous metering values, enter the following command:
=>MET k <Enter>
where k is an optional parameter to specify the number of times (1–32767) to
repeat the meter display. If k is not specified, the meter report is displayed
once.
MET M (Maximum/Minimum Metering)
The MET M command displays the maximum and minimum values of the
quantities in Table 10.13.
To view maximum/minimum metering values, enter the following command:
=>MET M <Enter>
Use the MET M R command from Access Level E or higher to reset the
maximum/minimum values. All values will display
RESET until the SEL-734
records new maximum/minimum values.
For more information on maximum/minimum metering, see
Maximum/Minimum Metering on page 4.16.
MET PM (Synchrophasors)
The MET PM serial port ASCII command displays synchrophasor
measurements, as Table 10.14 describes. The MET PM command operates
only when EPMU = Y and the Meter Word bit TSOK := 1. The TSOK Meter
Word bit indicates that the IRIG-B signal is sufficiently precise to time-stamp
synchrophasor data.
The synchrophasor data are also available via the Tools > Meter & Control >
Meter & Control (HMI) menu in
ACSELERATOR QuickSet software, and has
a similar format to Figure 10.9.
Table 10.13 MET M Command Displayed Quantities
Currents I
A,B,C,N
Input currents (A primary)
Voltages V
A,B,C
Wye-connected voltage inputs (kV primary; Form 9)
V
AB,BC,CA
Delta-connected voltage inputs (kV primary; Form 5)
Power P3P (MW
3P
) Three-phase megawatts
Q3P MVAR
3P
) Three-phase megavars
Reset Time LAST RESET Last date and time the
maximum/minimum meter was reset
Table 10.14 MET PM Displayed Quantities
Voltages VA, VB, VC, V1 Phase-to-neutral and positive-sequence kV
primary voltages, Form 9
VAB, VBC, VCA, V1 Phase-to-phase and positive-sequence kV
primary voltages, Form 5
Currents IA, IB, IC, I1 Amps primary, Form 9
Frequency FREQ (Hz) Metered frequency
Digitals TSOK, SV03–SV16 Time Source OK and SEL
OGIC Va ri ab le s
