Metering
Demand Metering
Comparison of
Thermal, Rolling, and
Block Demand Meters
The example in Figure 4.3 shows the response of thermal, rolling, and block
demand meters to a 1.0 per unit step energy input.

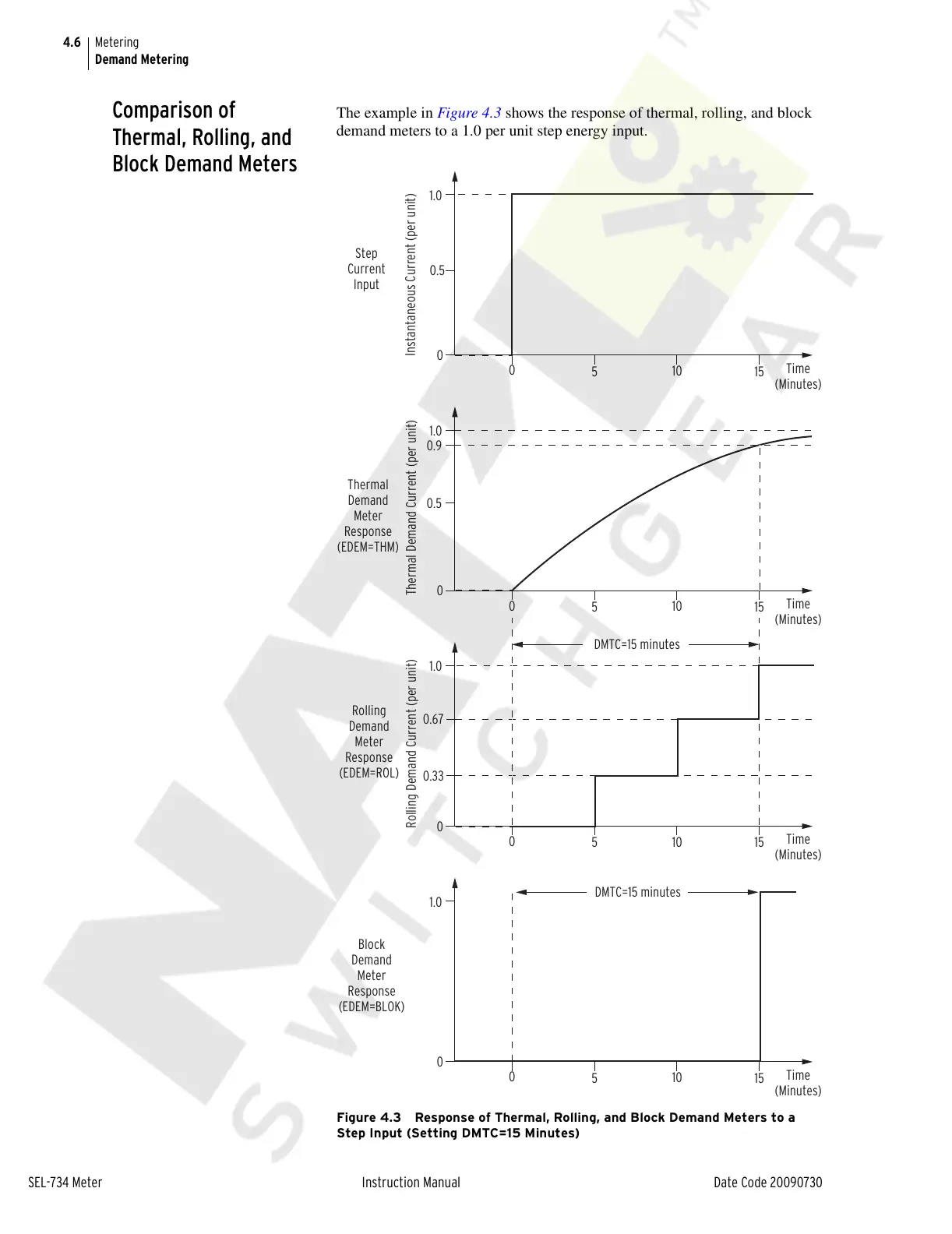

Figure 4.3 Response of Thermal, Rolling, and Block Demand Meters to a
Step Input (Setting DMTC=15 Minutes)
0
5
10
15
Time
(Minutes)
1.0
0.5
0
Instantaneous Current (per unit)
Step
Current
Input
0
5
10
15
Time
(Minutes)
1.0
0.9
0.5
0
Thermal Demand Current (per unit)
Thermal
Demand
Meter
Response
(EDEM=THM)
DMTC=15 minutes
0
5
10
15
Time
(Minutes)
1.0
0
0.67
0.33
Rolling Demand Current (per unit)
Rolling
Demand
Meter
Response
(EDEM=ROL)
DMTC=15 minutes
0
5
10
15
Time
(Minutes)
1.0
0
Block
Demand
Meter
Response
(EDEM=BLOK)
