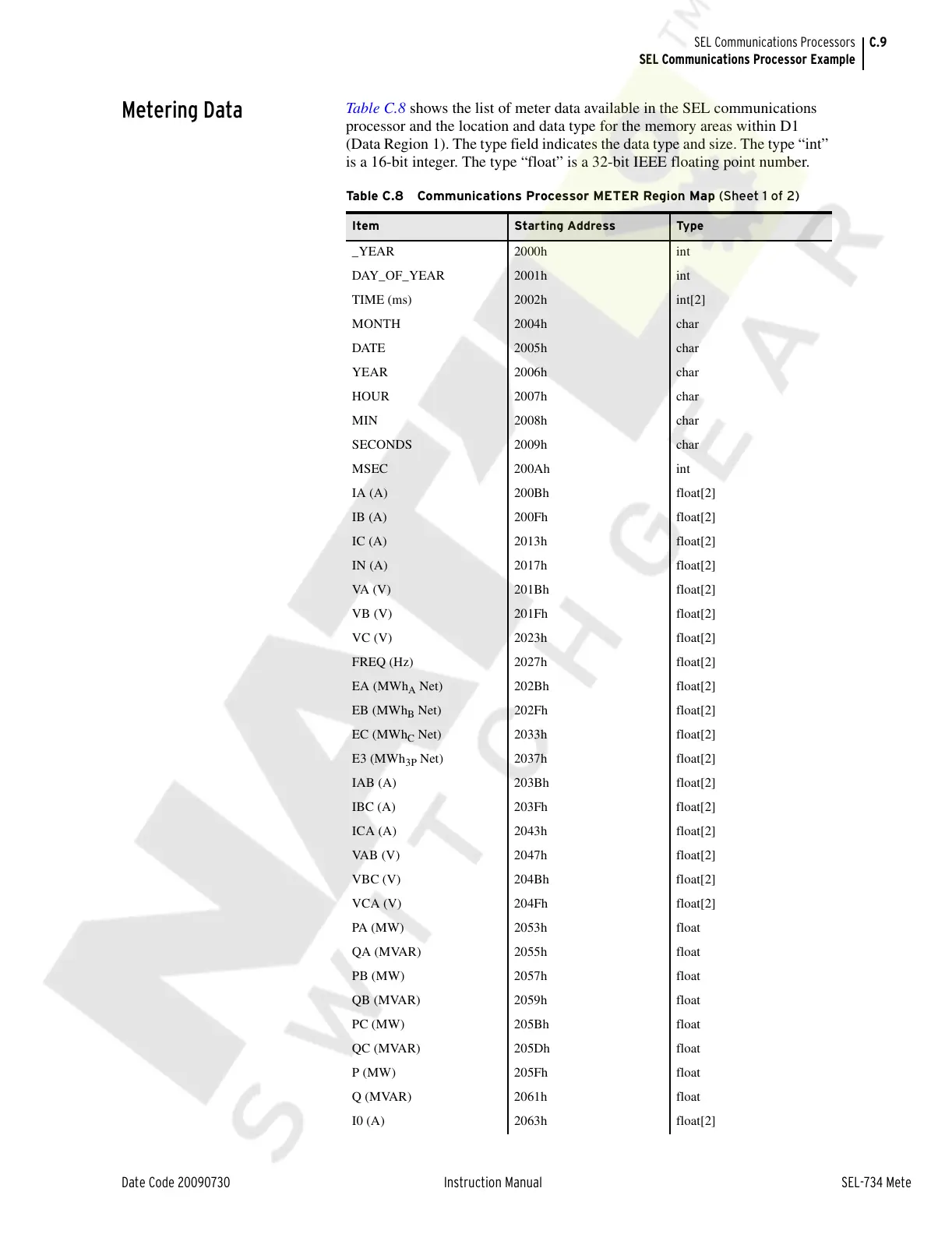

Table C.8 shows the list of meter data available in the SEL communications
processor and the location and data type for the memory areas within D1
(Data Region 1). The type field indicates the data type and size. The type “int”
is a 16-bit integer. The type “float” is a 32-bit IEEE floating point number.
Table C.8 Communications Processor METER Region Map (Sheet 1 of 2)
Item Starting Address Ty p e
_YEAR 2000h int
DAY_OF_YEAR 2001h int
TIME (ms) 2002h int[2]
MONTH 2004h char
DATE 2005h char
YEAR 2006h char
HOUR 2007h char
MIN 2008h char
SECONDS 2009h char
MSEC 200Ah int
IA (A) 200Bh float[2]
IB (A) 200Fh float[2]
IC (A) 2013h float[2]
IN (A) 2017h float[2]
VA (V) 201Bh float[2]
VB (V) 201Fh float[2]
VC (V) 2023h float[2]
FREQ (Hz) 2027h float[2]
EA (MWh
A
Net) 202Bh float[2]
EB (MWh
B
Net) 202Fh float[2]
EC (MWh
C
Net) 2033h float[2]
E3 (MWh
3P
Net) 2037h float[2]
IAB (A) 203Bh float[2]
IBC (A) 203Fh float[2]
ICA (A) 2043h float[2]
VAB (V) 2047h float[2]
VBC (V) 204Bh float[2]
VCA (V) 204Fh float[2]
PA (MW) 2053h float
QA (MVAR) 2055h float
PB (MW) 2057h float
QB (MVAR) 2059h float
PC (MW) 205Bh float
QC (MVAR) 205Dh float
P (MW) 205Fh float
Q (MVAR) 2061h float
I0 (A) 2063h float[2]
