no condensation. The power supply supports voltage fluctuations up to ±10
percent of nominal voltage. For IEC 61010 certification, the SEL-734 rating is
2000 meters (6560 feet) above mean sea level.
Connection Diagrams

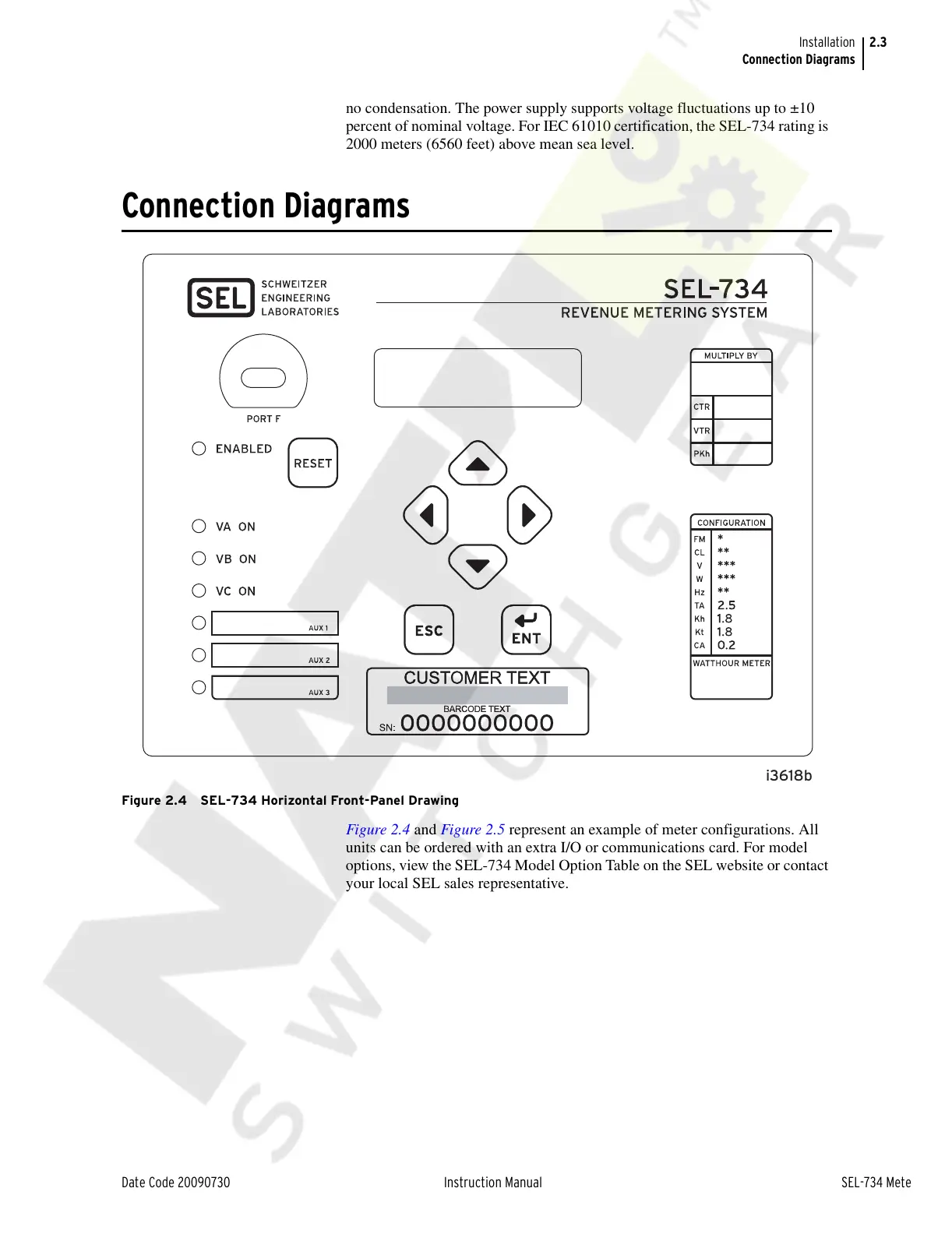

Figure 2.4 SEL-734 Horizontal Front-Panel Drawing
Figure 2.4 and Figure 2.5 represent an example of meter configurations. All
units can be ordered with an extra I/O or communications card. For model
options, view the SEL-734 Model Option Table on the SEL website or contact
your local SEL sales representative.
i3618b
