Date Code 20090730 Instruction Manual SEL-734 Meter

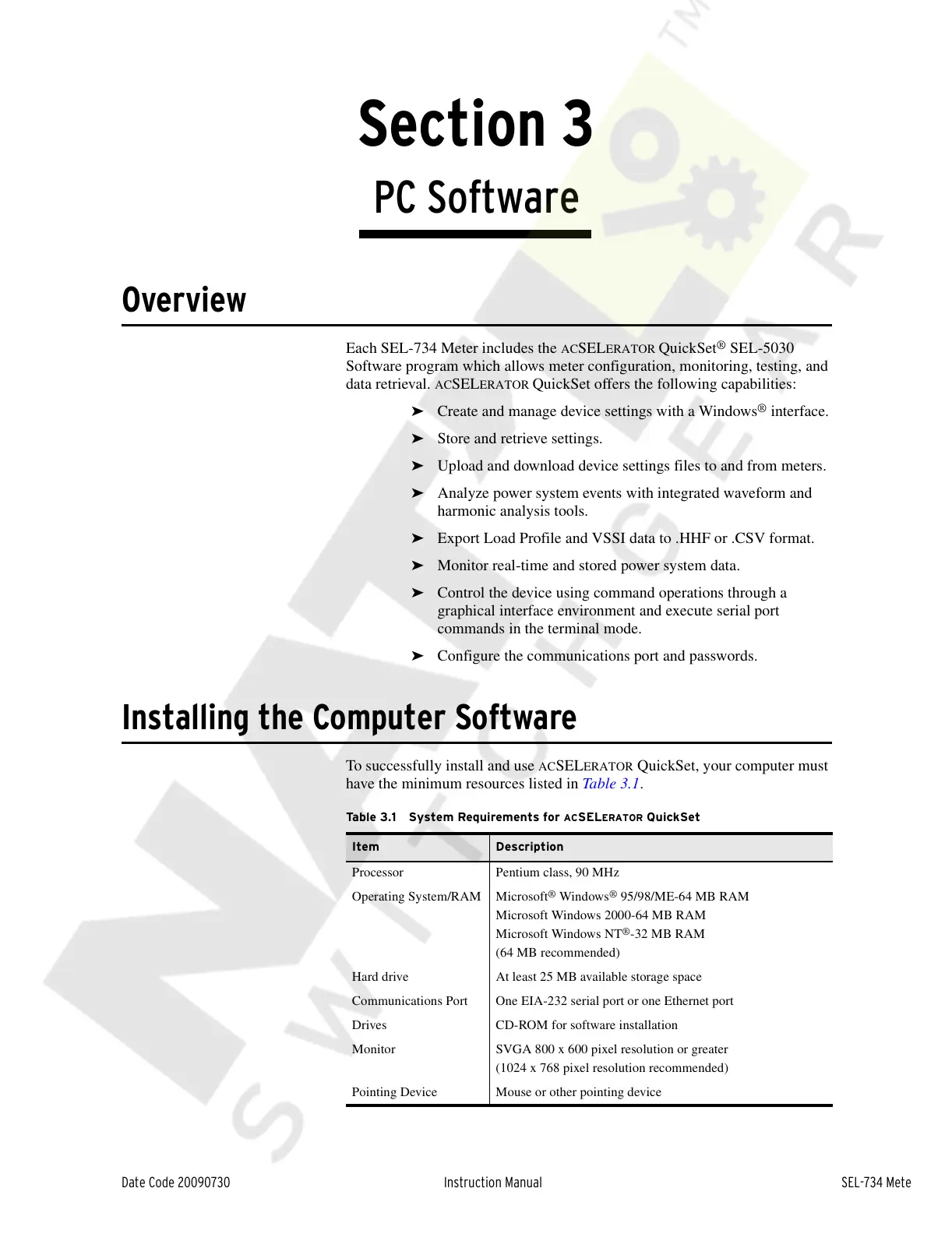

Section 3
PC Software
Overview
Each SEL-734 Meter includes the ACSELERATOR
QuickSet
®
SEL-5030
Software program which allows meter configuration, monitoring, testing, and
data retrieval.
ACSELERATOR
QuickSet offers the following capabilities:
➤ Create and manage device settings with a Windows
®
interface.
➤ Store and retrieve settings.
➤ Upload and download device settings files to and from meters.
➤ Analyze power system events with integrated waveform and
harmonic analysis tools.
➤ Export Load Profile and VSSI data to .HHF or .CSV format.
➤ Monitor real-time and stored power system data.
➤ Control the device using command operations through a
graphical interface environment and execute serial port
commands in the terminal mode.
➤ Configure the communications port and passwords.
Installing the Computer Software
To successfully install and use ACSELERATOR QuickSet, your computer must
have the minimum resources listed in Table 3.1.
Table 3.1 System Requirements for ACSELERATOR QuickSet
Item Description
Processor Pentium class, 90 MHz
Operating System/RAM Microsoft
®
Windows
®
95/98/ME-64 MB RAM
Microsoft Windows 2000-64 MB RAM
Microsoft Windows NT
®
-32 MB RAM
(64 MB recommended)
Hard drive At least 25 MB available storage space
Communications Port One EIA-232 serial port or one Ethernet port
Drives CD-ROM for software installation
Monitor SVGA 800 x 600 pixel resolution or greater
(1024 x 768 pixel resolution recommended)
Pointing Device Mouse or other pointing device
