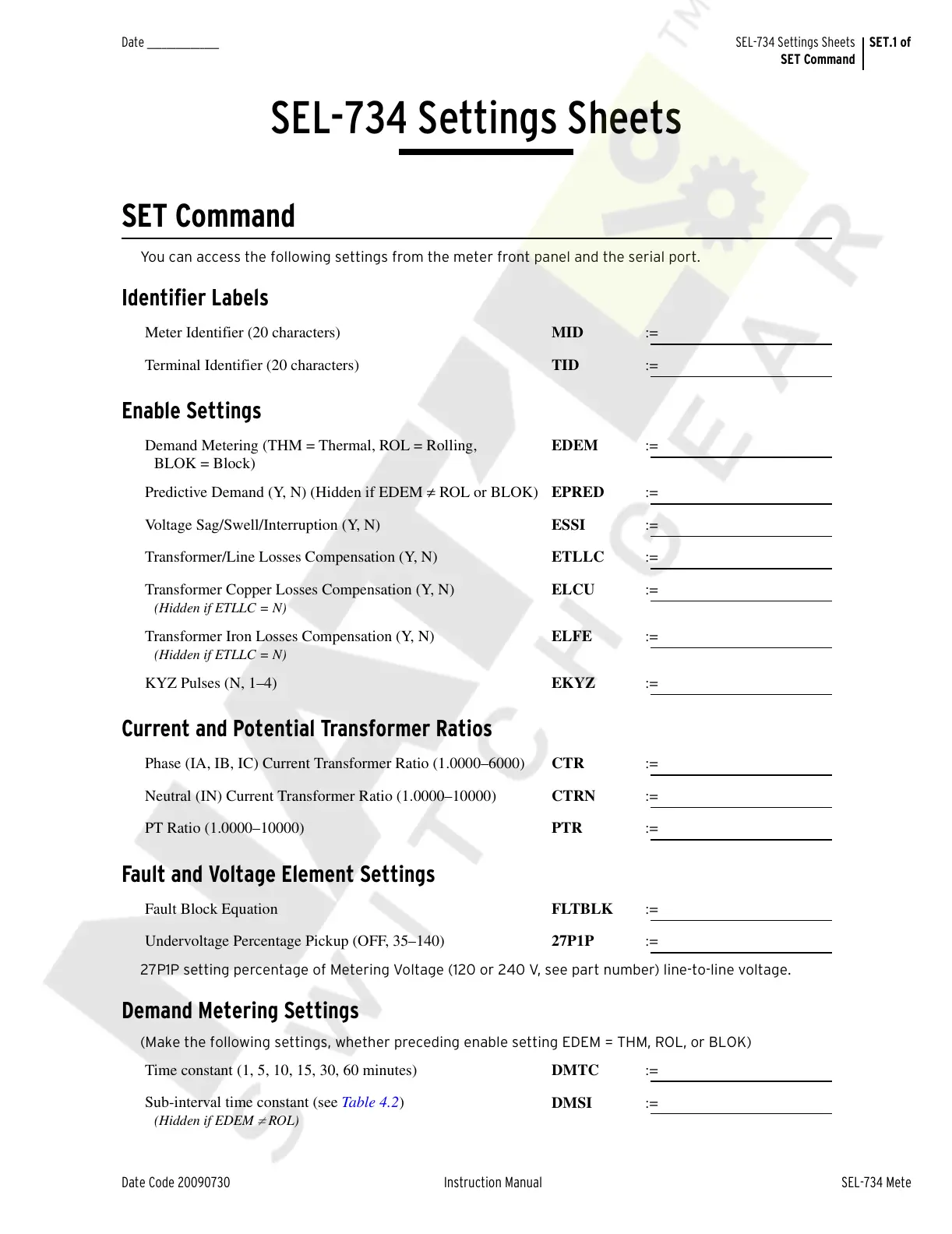

SET Command
Date _______________
SEL-734 Settings Sheets
SET Command
You can access the following settings from the meter front panel and the serial port.
Identifier Labels
Meter Identifier (20 characters) MID :=
Terminal Identifier (20 characters)
TID :=
Enable Settings
Demand Metering (THM = Thermal, ROL = Rolling,
BLOK = Block)
EDEM :=
Predictive Demand (Y, N) (Hidden if EDEM ≠ ROL or BLOK)
EPRED :=
Voltage Sag/Swell/Interruption (Y, N)
ESSI :=
Transformer/Line Losses Compensation (Y, N)
ETLLC :=
Transformer Copper Losses Compensation (Y, N)
(Hidden if ETLLC = N)
ELCU :=
Transformer Iron Losses Compensation (Y, N)
(Hidden if ETLLC = N)
ELFE :=
KYZ Pulses (N, 1–4)
EKYZ :=
Current and Potential Transformer Ratios
Phase (IA, IB, IC) Current Transformer Ratio (1.0000–6000) CTR :=
Neutral (IN) Current Transformer Ratio (1.0000–10000)
CTRN :=
PT Ratio (1.0000–10000)
PTR :=
Fault and Voltage Element Settings
Fault Block Equation FLTBLK :=
Undervoltage Percentage Pickup (OFF, 35–140)
27P1P :=
27P1P setting percentage of Metering Voltage (120 or 240 V, see part number) line-to-line voltage.
Demand Metering Settings
(Make the following settings, whether preceding enable setting EDEM = THM, ROL, or BLOK)
Time constant (1, 5, 10, 15, 30, 60 minutes) DMTC :=
Sub-interval time constant (see Table 4.2)
(Hidden if EDEM
≠
ROL)
DMSI :=
