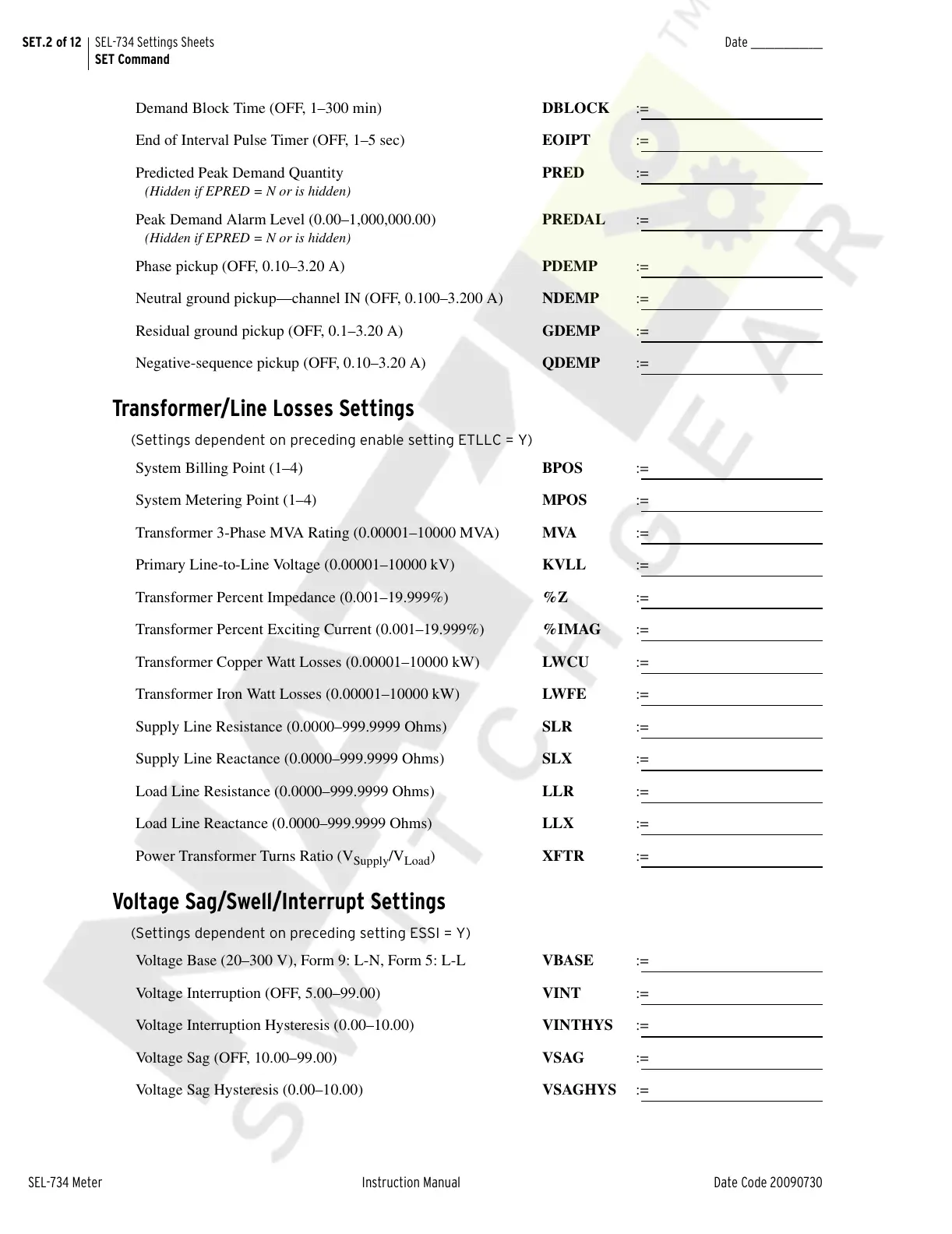

SET.2 of 12 SEL-734 Settings Sheets
SET Command
SEL-734 Meter Instruction Manual Date Code 20090730
Date _______________
Demand Block Time (OFF, 1–300 min) DBLOCK :=
End of Interval Pulse Timer (OFF, 1–5 sec)
EOIPT :=
Predicted Peak Demand Quantity
(Hidden if EPRED = N or is hidden)
PRED :=
Peak Demand Alarm Level (0.00–1,000,000.00)
(Hidden if EPRED = N or is hidden)
PREDAL :=
Phase pickup (OFF, 0.10–3.20 A)
PDEMP :=
Neutral ground pickup—channel IN (OFF, 0.100–3.200 A)
NDEMP :=
Residual ground pickup (OFF, 0.1–3.20 A)
GDEMP :=
Negative-sequence pickup (OFF, 0.10–3.20 A)
QDEMP :=
Transformer/Line Losses Settings
(Settings dependent on preceding enable setting ETLLC = Y)
System Billing Point (1–4) BPOS :=
System Metering Point (1–4)
MPOS :=
Transformer 3-Phase MVA Rating (0.00001–10000 MVA)
MVA :=
Primary Line-to-Line Voltage (0.00001–10000 kV)
KVLL :=
Transformer Percent Impedance (0.001–19.999%)
%Z :=
Transformer Percent Exciting Current (0.001–19.999%)
%IMAG :=
Transformer Copper Watt Losses (0.00001–10000 kW)
LWCU :=
Transformer Iron Watt Losses (0.00001–10000 kW)
LWFE :=
Supply Line Resistance (0.0000–999.9999 Ohms)
SLR :=
Supply Line Reactance (0.0000–999.9999 Ohms)
SLX :=
Load Line Resistance (0.0000–999.9999 Ohms)
LLR :=
Load Line Reactance (0.0000–999.9999 Ohms)
LLX :=
Power Transformer Turns Ratio (V
Supply
/V
Load
) XFTR :=
Voltage Sag/Swell/Interrupt Settings
(Settings dependent on preceding setting ESSI = Y)
Voltage Base (20–300 V), Form 9: L-N, Form 5: L-L VBASE :=
Voltage Interruption (OFF, 5.00–99.00)
VINT :=
Voltage Interruption Hysteresis (0.00–10.00)
VINTHYS :=
Voltage Sag (OFF, 10.00–99.00)
VSAG :=
Voltage Sag Hysteresis (0.00–10.00)
VSAGHYS :=
