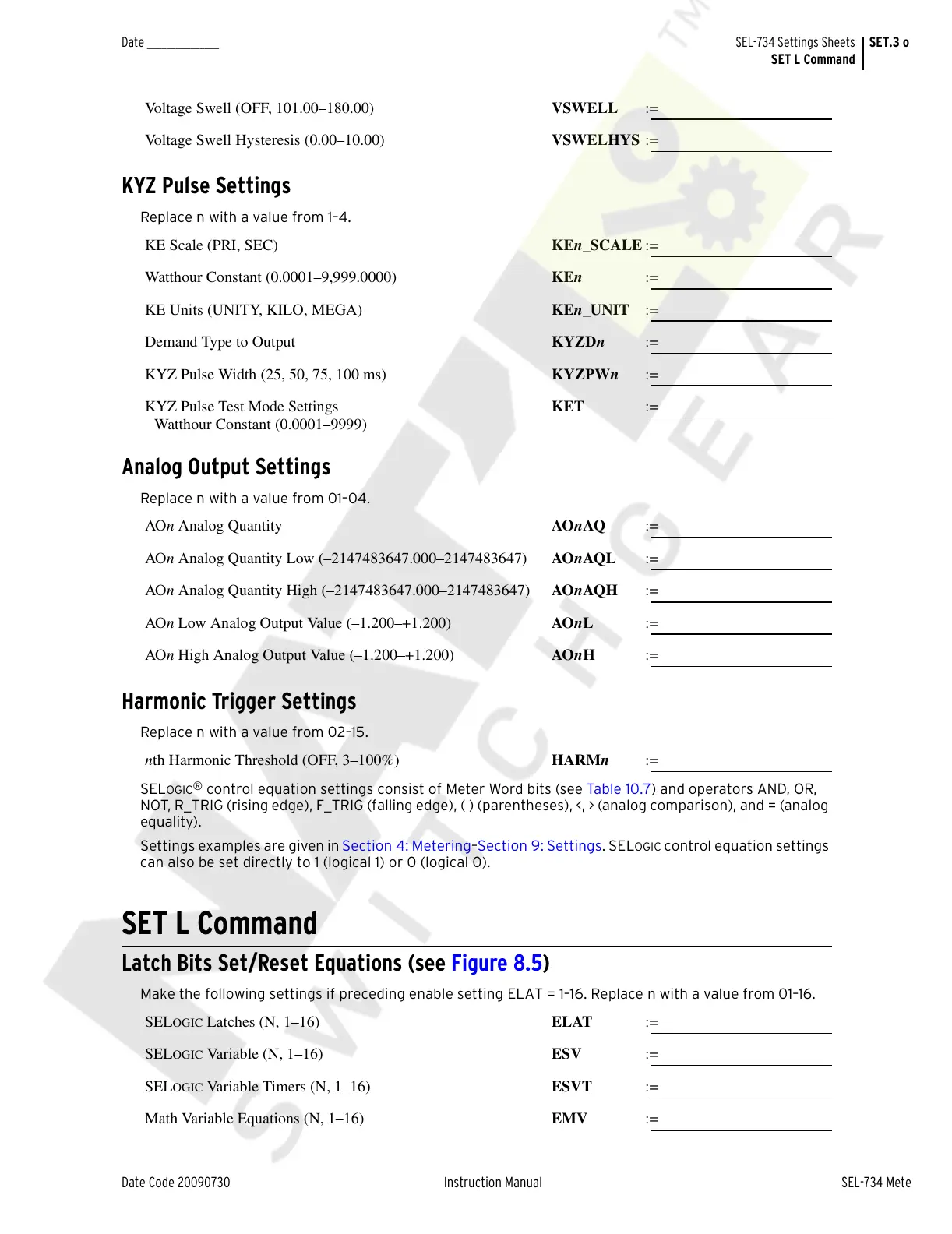

Date Code 20090730 Instruction Manual SEL-734 Meter
SET.3 of 12SEL-734 Settings Sheets
SET L Command
Date _______________
Voltage Swell (OFF, 101.00–180.00) VSWELL :=
Voltage Swell Hysteresis (0.00–10.00)
VSWELHYS :=
KYZ Pulse Settings
Replace n with a value from 1–4.
KE Scale (PRI, SEC) KEn_SCALE :=
Watthour Constant (0.0001–9,999.0000)
KEn :=
KE Units (UNITY, KILO, MEGA)
KEn_UNIT :=
Demand Type to Output
KYZDn :=
KYZ Pulse Width (25, 50, 75, 100 ms)
KYZPWn :=
KYZ Pulse Test Mode Settings
Watthour Constant (0.0001–9999)
KET :=
Analog Output Settings
Replace n with a value from 01–04.
AOn Analog Quantity AOnAQ :=
AOn Analog Quantity Low (–2147483647.000–2147483647)
AOnAQL :=
AOn Analog Quantity High (–2147483647.000–2147483647)
AOnAQH :=
AOn Low Analog Output Value (–1.200–+1.200)
AOnL :=
AOn High Analog Output Value (–1.200–+1.200)
AOnH :=
Harmonic Trigger Settings
Replace n with a value from 02–15.
nth Harmonic Threshold (OFF, 3–100%) HARMn :=
SELOGIC
®
control equation settings consist of Meter Word bits (see Table 10.7) and operators AND, OR,
NOT, R_TRIG (rising edge), F_TRIG (falling edge), ( ) (parentheses), <, > (analog comparison), and = (analog
equality).
Settings examples are given in Section 4: Metering–Section 9: Settings. SEL
OGIC control equation settings
can also be set directly to 1 (logical 1) or 0 (logical 0).
SET L Command
Latch Bits Set/Reset Equations (see Figure 8.5)
Make the following settings if preceding enable setting ELAT = 1–16. Replace n with a value from 01–16.
SELOGIC Latches (N, 1–16) ELAT :=
SEL
OGIC Variable (N, 1–16) ESV :=
SEL
OGIC Variable Timers (N, 1–16) ESVT :=
Math Variable Equations (N, 1–16)
EMV :=
