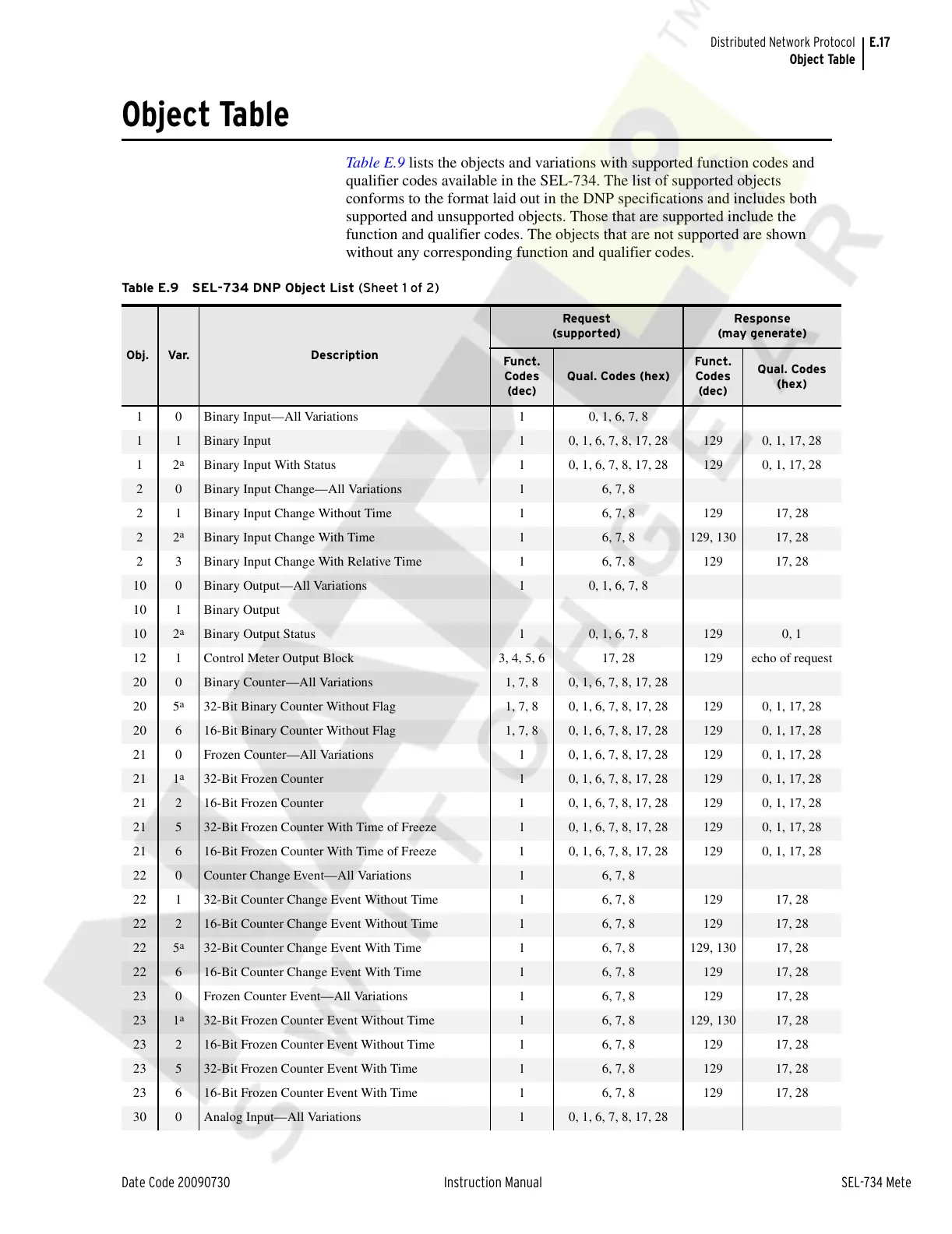

E.17
Date Code 20090730 Instruction Manual SEL-734 Meter
Distributed Network Protocol
Object Table
Object Table
Table E.9 lists the objects and variations with supported function codes and
qualifier codes available in the SEL-734. The list of supported objects
conforms to the format laid out in the DNP specifications and includes both
supported and unsupported objects. Those that are supported include the
function and qualifier codes. The objects that are not supported are shown
without any corresponding function and qualifier codes.
Ta b l e E .9 S EL - 734 DNP Object List (Sheet 1 of 2)
Obj. Var. Description
Request
(supported)
Response
(may generate)
Funct.
Codes
(dec)
Qual. Codes (hex)
Funct.
Codes
(dec)
Qual. Codes
(hex)
1 0 Binary Input—All Variations 1 0, 1, 6, 7, 8
1 1 Binary Input 1 0, 1, 6, 7, 8, 17, 28 129 0, 1, 17, 28
12
a
Binary Input With Status 1 0, 1, 6, 7, 8, 17, 28 129 0, 1, 17, 28
2 0 Binary Input Change—All Variations 1 6, 7, 8
2 1 Binary Input Change Without Time 1 6, 7, 8 129 17, 28
2 2
a
Binary Input Change With Time 1 6, 7, 8 129, 130 17, 28
2 3 Binary Input Change With Relative Time 1 6, 7, 8 129 17, 28
10 0 Binary Output—All Variations 1 0, 1, 6, 7, 8
10 1 Binary Output
10 2
a
Binary Output Status 1 0, 1, 6, 7, 8 129 0, 1
12 1 Control Meter Output Block 3, 4, 5, 6 17, 28 129 echo of request
20 0 Binary Counter—All Variations 1, 7, 8 0, 1, 6, 7, 8, 17, 28
20 5
a
32-Bit Binary Counter Without Flag 1, 7, 8 0, 1, 6, 7, 8, 17, 28 129 0, 1, 17, 28
20 6 16-Bit Binary Counter Without Flag 1, 7, 8 0, 1, 6, 7, 8, 17, 28 129 0, 1, 17, 28
21 0 Frozen Counter—All Variations 1 0, 1, 6, 7, 8, 17, 28 129 0, 1, 17, 28
21 1
a
32-Bit Frozen Counter 1 0, 1, 6, 7, 8, 17, 28 129 0, 1, 17, 28
21 2 16-Bit Frozen Counter 1 0, 1, 6, 7, 8, 17, 28 129 0, 1, 17, 28
21 5 32-Bit Frozen Counter With Time of Freeze 1 0, 1, 6, 7, 8, 17, 28 129 0, 1, 17, 28
21 6 16-Bit Frozen Counter With Time of Freeze 1 0, 1, 6, 7, 8, 17, 28 129 0, 1, 17, 28
22 0 Counter Change Event—All Variations 1 6, 7, 8
22 1 32-Bit Counter Change Event Without Time 1 6, 7, 8 129 17, 28
22 2 16-Bit Counter Change Event Without Time 1 6, 7, 8 129 17, 28
22 5
a
32-Bit Counter Change Event With Time 1 6, 7, 8 129, 130 17, 28
22 6 16-Bit Counter Change Event With Time 1 6, 7, 8 129 17, 28
23 0 Frozen Counter Event—All Variations 1 6, 7, 8 129 17, 28
23 1
a
32-Bit Frozen Counter Event Without Time 1 6, 7, 8 129, 130 17, 28
23 2 16-Bit Frozen Counter Event Without Time 1 6, 7, 8 129 17, 28
23 5 32-Bit Frozen Counter Event With Time 1 6, 7, 8 129 17, 28
23 6 16-Bit Frozen Counter Event With Time 1 6, 7, 8 129 17, 28
30 0 Analog Input—All Variations 1 0, 1, 6, 7, 8, 17, 28
