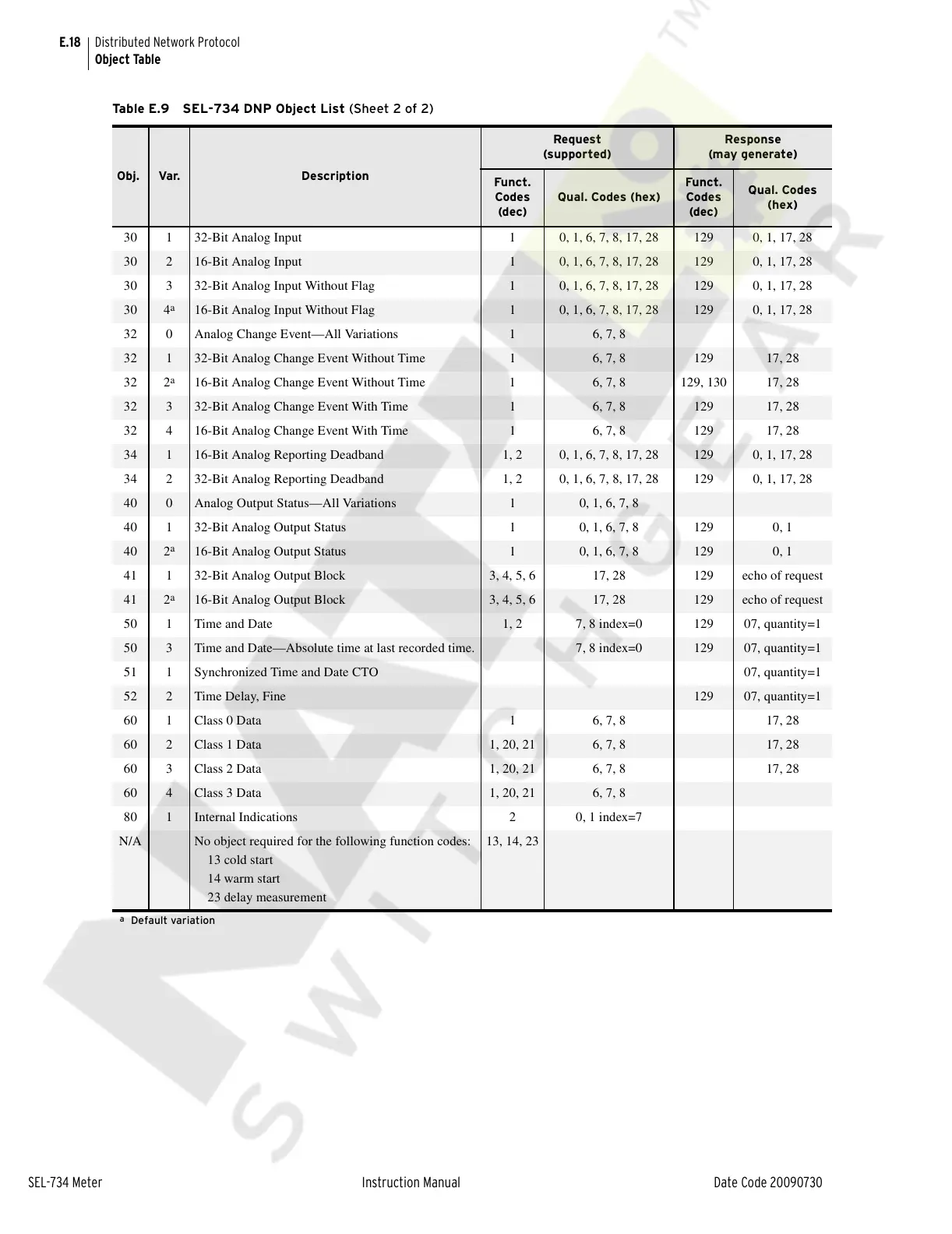

Distributed Network Protocol
Object Table
30 1 32-Bit Analog Input 1 0, 1, 6, 7, 8, 17, 28 129 0, 1, 17, 28
30 2 16-Bit Analog Input 1 0, 1, 6, 7, 8, 17, 28 129 0, 1, 17, 28
30 3 32-Bit Analog Input Without Flag 1 0, 1, 6, 7, 8, 17, 28 129 0, 1, 17, 28
30 4
a
16-Bit Analog Input Without Flag 1 0, 1, 6, 7, 8, 17, 28 129 0, 1, 17, 28
32 0 Analog Change Event—All Variations 1 6, 7, 8
32 1 32-Bit Analog Change Event Without Time 1 6, 7, 8 129 17, 28
32 2
a
16-Bit Analog Change Event Without Time 1 6, 7, 8 129, 130 17, 28
32 3 32-Bit Analog Change Event With Time 1 6, 7, 8 129 17, 28
32 4 16-Bit Analog Change Event With Time 1 6, 7, 8 129 17, 28
34 1 16-Bit Analog Reporting Deadband 1, 2 0, 1, 6, 7, 8, 17, 28 129 0, 1, 17, 28
34 2 32-Bit Analog Reporting Deadband 1, 2 0, 1, 6, 7, 8, 17, 28 129 0, 1, 17, 28
40 0 Analog Output Status—All Variations 1 0, 1, 6, 7, 8
40 1 32-Bit Analog Output Status 1 0, 1, 6, 7, 8 129 0, 1
40 2
a
16-Bit Analog Output Status 1 0, 1, 6, 7, 8 129 0, 1
41 1 32-Bit Analog Output Block 3, 4, 5, 6 17, 28 129 echo of request
41 2
a
16-Bit Analog Output Block 3, 4, 5, 6 17, 28 129 echo of request
50 1 Time and Date 1, 2 7, 8 index=0 129 07, quantity=1
50 3 Time and Date—Absolute time at last recorded time. 7, 8 index=0 129 07, quantity=1
51 1 Synchronized Time and Date CTO 07, quantity=1
52 2 Time Delay, Fine 129 07, quantity=1
60 1 Class 0 Data 1 6, 7, 8 17, 28
60 2 Class 1 Data 1, 20, 21 6, 7, 8 17, 28
60 3 Class 2 Data 1, 20, 21 6, 7, 8 17, 28
60 4 Class 3 Data 1, 20, 21 6, 7, 8
80 1 Internal Indications 2 0, 1 index=7
N/A No object required for the following function codes:
13 cold start
14 warm start
23 delay measurement
13, 14, 23
a
Default variation
Ta b l e E .9 S EL - 734 DNP Object List (Sheet 2 of 2)
