1.4

SEL-734 Meter Instruction Manual Date Code 20090730

Introduction and Specifications

Hardware Connection Features

See Specifications on page 1.7 and Section 2: Installation for more

information on hardware and connections.

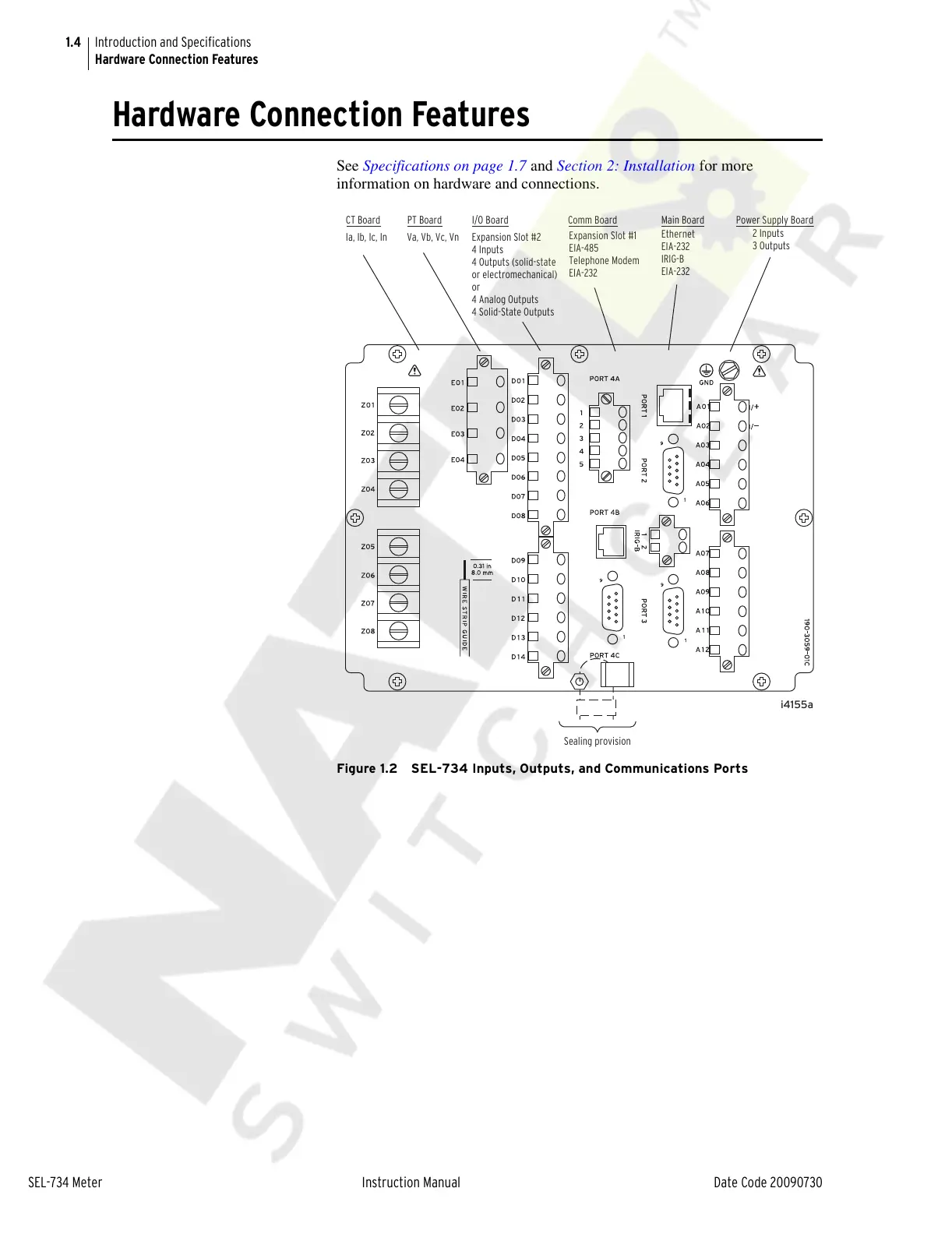

Figure 1.2 SEL-734 Inputs, Outputs, and Communications Ports

i4155a

CT Board

Ia, Ib, Ic, In

PT Board

Va, Vb, Vc, Vn

I/O Board

Expansion Slot #2

4 Inputs

4 Outputs (solid-state

or electromechanical)

4 Analog Outputs

4 Solid-State Outputs

Comm Board

Expansion Slot #1

EIA-485

Telephone Modem

EIA-232

Main Board

Ethernet

EIA-232

IRIG-B

EIA-232

Power Supply Board

2 Inputs

3 Outputs

Sealing provision
