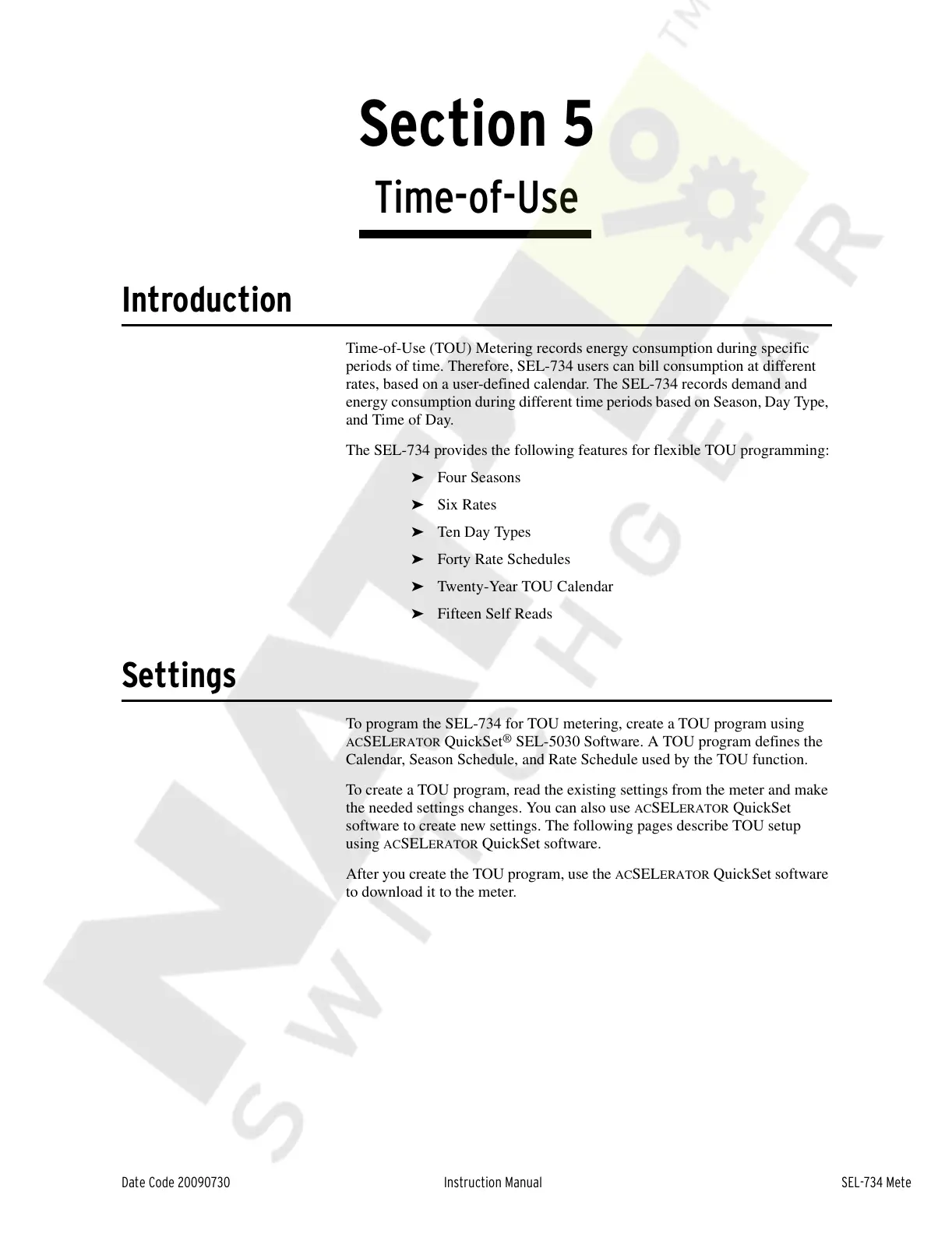

Date Code 20090730 Instruction Manual SEL-734 Meter
Section 5
R.Reference Manual
Time-of-Use
Introduction
Time-of-Use (TOU) Metering records energy consumption during specific
periods of time. Therefore, SEL-734 users can bill consumption at different
rates, based on a user-defined calendar. The SEL-734 records demand and
energy consumption during different time periods based on Season, Day Type,
and Time of Day.
The SEL-734 provides the following features for flexible TOU programming:
➤ Four Seasons
➤ Six Rates
➤ Ten Day Types
➤ Forty Rate Schedules
➤ Twenty-Year TOU Calendar
➤ Fifteen Self Reads
Settings
To program the SEL-734 for TOU metering, create a TOU program using
ACSELERATOR QuickSet
®
SEL-5030 Software. A TOU program defines the
Calendar, Season Schedule, and Rate Schedule used by the TOU function.
To create a TOU program, read the existing settings from the meter and make
the needed settings changes. You can also use
ACSELERATOR QuickSet
software to create new settings. The following pages describe TOU setup
using
ACSELERATOR QuickSet software.
After you create the TOU program, use the
ACSELERATOR QuickSet software
to download it to the meter.
