Distributed Network Protocol
Data Map
Data Map

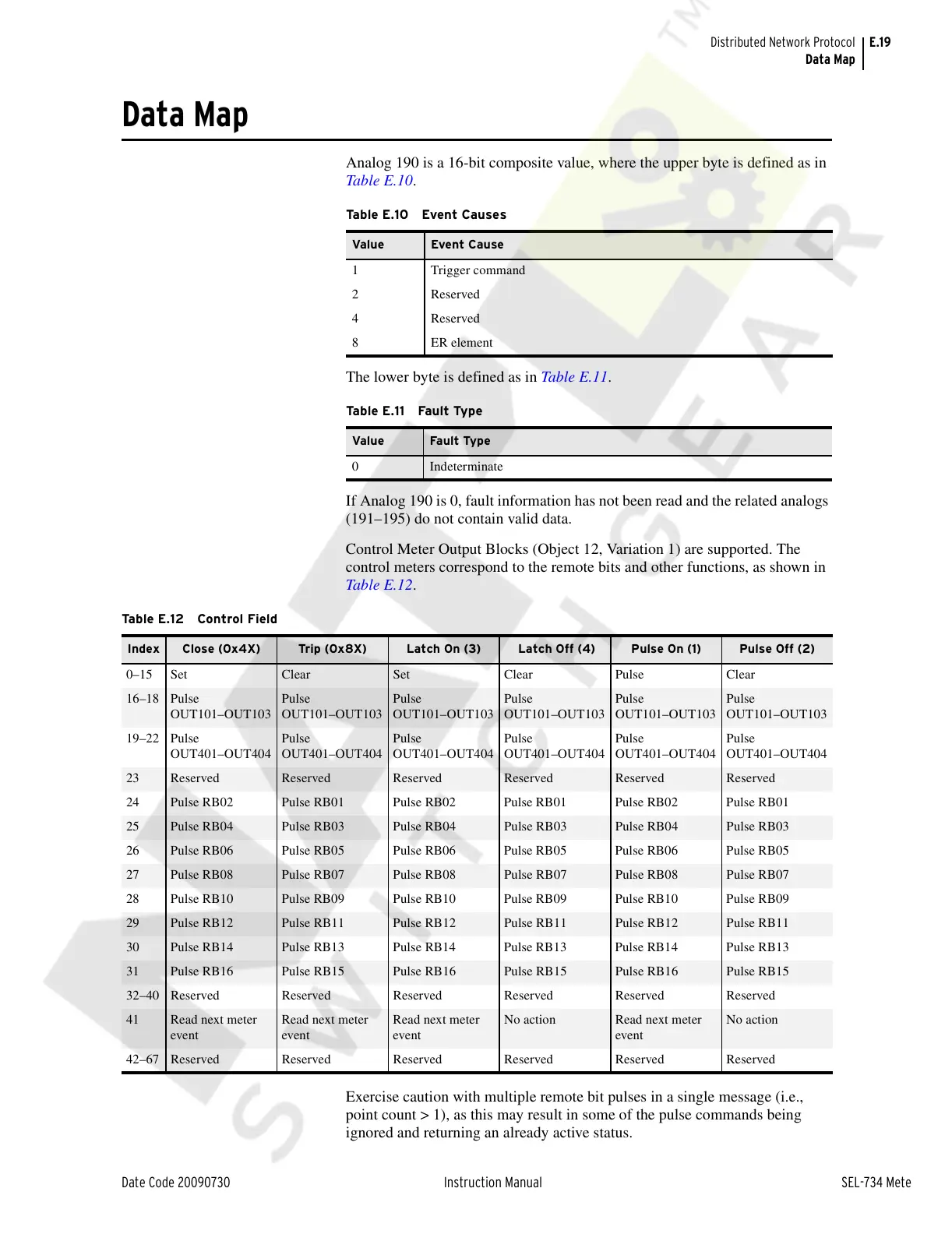

Analog 190 is a 16-bit composite value, where the upper byte is defined as in
Table E.10.
The lower byte is defined as in Table E. 11.
If Analog 190 is 0, fault information has not been read and the related analogs
(191–195) do not contain valid data.
Control Meter Output Blocks (Object 12, Variation 1) are supported. The
control meters correspond to the remote bits and other functions, as shown in
Table E.12.
Exercise caution with multiple remote bit pulses in a single message (i.e.,
point count > 1), as this may result in some of the pulse commands being
ignored and returning an already active status.
Table E.10 Event Causes
Value Event Cause
1 Trigger command
2 Reserved
4 Reserved
8 ER element
Table E.11 Fault Type
Value Fault Type
0 Indeterminate
Table E.12 Control Field
Index Close (0x4X) Trip (0x8X) Latch On (3) Latch Off (4) Pulse On (1) Pulse Off (2)
0–15 Set Clear Set Clear Pulse Clear
16–18 Pulse
OUT101–OUT103
Pulse
OUT101–OUT103
Pulse
OUT101–OUT103
Pulse
OUT101–OUT103
Pulse
OUT101–OUT103
Pulse
OUT101–OUT103
19–22 Pulse
OUT401–OUT404
Pulse
OUT401–OUT404
Pulse
OUT401–OUT404
Pulse
OUT401–OUT404
Pulse
OUT401–OUT404
Pulse
OUT401–OUT404
23 Reserved Reserved Reserved Reserved Reserved Reserved
24 Pulse RB02 Pulse RB01 Pulse RB02 Pulse RB01 Pulse RB02 Pulse RB01
25 Pulse RB04 Pulse RB03 Pulse RB04 Pulse RB03 Pulse RB04 Pulse RB03
26 Pulse RB06 Pulse RB05 Pulse RB06 Pulse RB05 Pulse RB06 Pulse RB05
27 Pulse RB08 Pulse RB07 Pulse RB08 Pulse RB07 Pulse RB08 Pulse RB07
28 Pulse RB10 Pulse RB09 Pulse RB10 Pulse RB09 Pulse RB10 Pulse RB09
29 Pulse RB12 Pulse RB11 Pulse RB12 Pulse RB11 Pulse RB12 Pulse RB11
30 Pulse RB14 Pulse RB13 Pulse RB14 Pulse RB13 Pulse RB14 Pulse RB13
31 Pulse RB16 Pulse RB15 Pulse RB16 Pulse RB15 Pulse RB16 Pulse RB15
32–40 Reserved Reserved Reserved Reserved Reserved Reserved
41 Read next meter
event
Read next meter
event
Read next meter
event
No action Read next meter
event
No action
42–67 Reserved Reserved Reserved Reserved Reserved Reserved
