Schweitzer Engineering Laboratories SEL-734 - Meter Word Bits (Used in SELOGIC Control Equations)

9.3
Date Code 20090730 Instruction Manual SEL-734 Meter
Settings
Meter Word Bits (Used in SEL
OGIC Control Equations)
Meter Word Bits (Used in SELOGIC Control
Equations)
Meter Word bits are used in SELOGIC control equation settings. Numerous
SEL
OGIC control equation settings examples are given in Section 3: PC
Software through Section 8: Logic. SEL
OGIC control equation settings can
also be set directly to 1 (logical 1) or 0 (logical 0). Appendix D: Setting
SEL
OGIC Control Equations gives SELOGIC control equation details,
examples, and limitations.
The Meter Word bit row numbers correspond to the row numbers used in the
TAR command (see TAR Command (Display Meter Element Status) on
page 10.26).

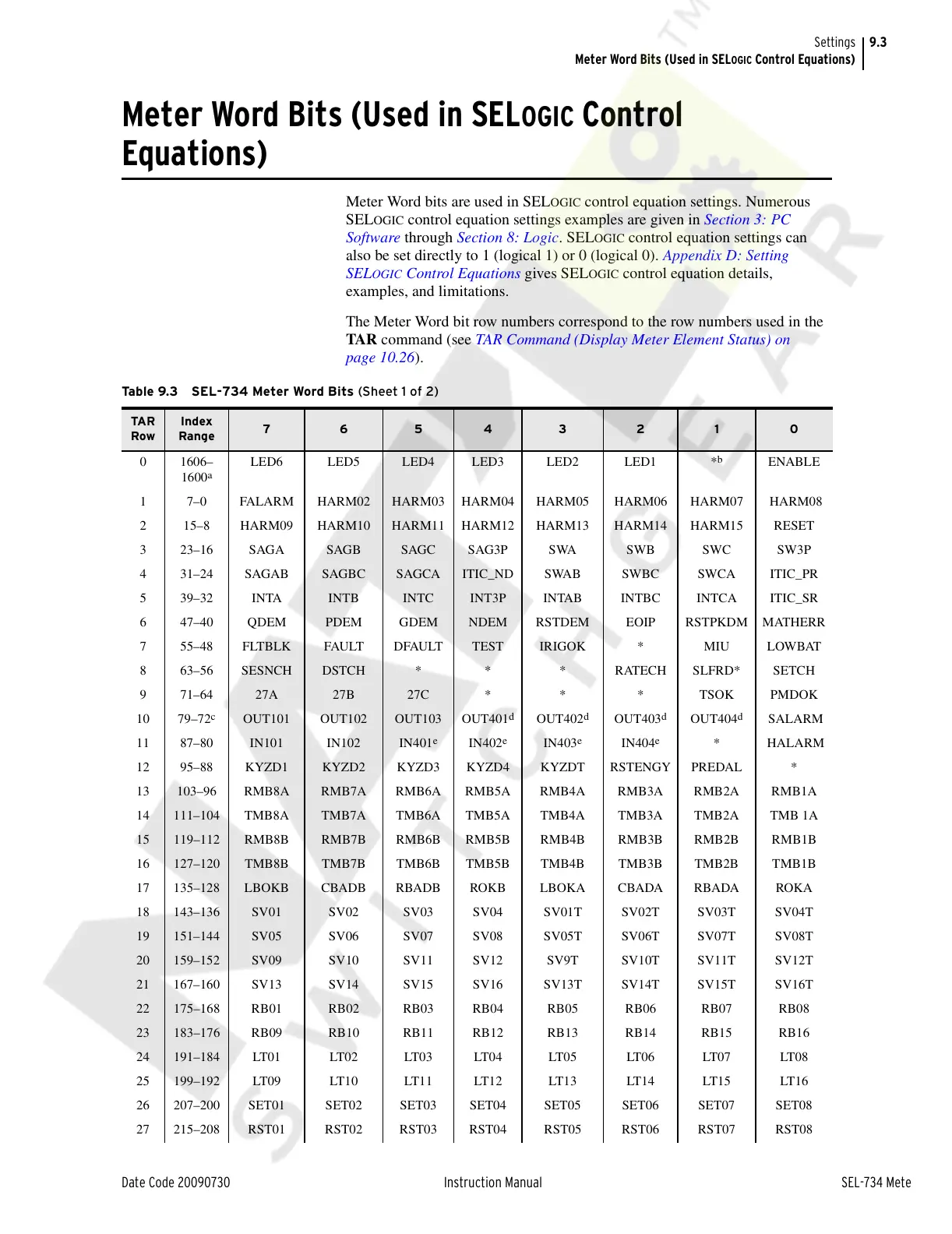

Ta b l e 9. 3 S E L - 7 3 4 M e t e r Wo rd B i t s (Sheet 1 of 2)
TAR
Row
Index
Range
7 6 5 4 3 2 1 0
0 1606–
1600
a
LED6 LED5 LED4 LED3 LED2 LED1 *
b
ENABLE
1 7–0 FALARM HARM02 HARM03 HARM04 HARM05 HARM06 HARM07 HARM08
2 15–8 HARM09 HARM10 HARM11 HARM12 HARM13 HARM14 HARM15 RESET
3 23–16 SAGA SAGB SAGC SAG3P SWA SWB SWC SW3P
4 31–24 SAGAB SAGBC SAGCA ITIC_ND SWAB SWBC SWCA ITIC_PR
5 39–32 INTA INTB INTC INT3P INTAB INTBC INTCA ITIC_SR
6 47–40 QDEM PDEM GDEM NDEM RSTDEM EOIP RSTPKDM MATHERR
7 55–48 FLTBLK FAULT DFAULT TEST IRIGOK * MIU LOWBAT
8 63–56 SESNCH DSTCH * * * RATECH SLFRD* SETCH
9 71–64 27A 27B 27C * * * TSOK PMDOK
10 79–72
c
OUT101 OUT102 OUT103 OUT401
d
OUT402
d
OUT403
d
OUT404
d
SALARM
11 87–80 IN101 IN102 IN401
e
IN402
e
IN403
e
IN404
e
* HALARM
12 95–88 KYZD1 KYZD2 KYZD3 KYZD4 KYZDT RSTENGY PREDAL *
13 103–96 RMB8A RMB7A RMB6A RMB5A RMB4A RMB3A RMB2A RMB1A
14 111–104 TMB8A TMB7A TMB6A TMB5A TMB4A TMB3A TMB2A TMB 1A
15 119–112 RMB8B RMB7B RMB6B RMB5B RMB4B RMB3B RMB2B RMB1B
16 127–120 TMB8B TMB7B TMB6B TMB5B TMB4B TMB3B TMB2B TMB1B
17 135–128 LBOKB CBADB RBADB ROKB LBOKA CBADA RBADA ROKA
18 143–136 SV01 SV02 SV03 SV04 SV01T SV02T SV03T SV04T
19 151–144 SV05 SV06 SV07 SV08 SV05T SV06T SV07T SV08T
20 159–152 SV09 SV10 SV11 SV12 SV9T SV10T SV11T SV12T
21 167–160 SV13 SV14 SV15 SV16 SV13T SV14T SV15T SV16T
22 175–168 RB01 RB02 RB03 RB04 RB05 RB06 RB07 RB08
23 183–176 RB09 RB10 RB11 RB12 RB13 RB14 RB15 RB16
24 191–184 LT01 LT02 LT03 LT04 LT05 LT06 LT07 LT08
25 199–192 LT09 LT10 LT11 LT12 LT13 LT14 LT15 LT16
26 207–200 SET01 SET02 SET03 SET04 SET05 SET06 SET07 SET08
27 215–208 RST01 RST02 RST03 RST04 RST05 RST06 RST07 RST08
