9.4
SEL-734 Meter Instruction Manual Date Code 20090730
Settings
Meter Word Bits (Used in SEL
OGIC Control Equations)
28 223–216 SET09 SET10 SET11 SET12 SET13 SET14 SET15 SET16
29 231–224 RST09 RST10 RST11 RST12 RST13 RST14 RST15 RST16
30 239–232 SC01QU SC02QU SC03QU SC04QU SC05QU SC06QU SC07QU SC08QU
31 247–240 SC01QD SC02QD SC03QD SC04QD SC05QD SC06QD SC07QD SC08QD
32 255–248 SC09QU SC10QU SC11QU SC12QU SC13QU SC14QU SC15QU SC16QU
33 263–256 SC09QD SC10QD SC11QD SC12QD SC13QD SC14QD SC15QD SC16QD
34 271–264 T06_LED T05_LED T04_LED T03_LED T02_LED T01_LED * *
35 279–272 ER1 ER2 ER3 FREQY NEWEVNT * * *
36 287–280 DP01 DP02 DP03 DP04 DP05 DP06 DP07 DP08
37 295–288 DP09 DP10 DP11 DP12 DP13 DP14 DP15 DP16
38 303–296 SC01R SC02R SC03R SC04R SC05R SC06R SC07R SC08R
39 311–304 SC01LD SC02LD SC03LD SC04LD SC05LD SC06LD SC07LD SC08LD
40 319–312 SC01CU SC02CU SC03CU SC04CU SC05CU SC06CU SC07CU SC08CU
41 327–320 SC01CD SC02CD SC03CD SC04CD SC05CD SC06CD SC07CD SC08CD
42 335–328 SC09R SC10R SC11R SC12R SC13R SC14R SC15R SC16R
43 343–329 SC09LD SC10LD SC11LD SC12LD SC13LD SC14LD SC15LD SC16LD
44 351–344 SC09CU SC10CU SC11CU SC12CU SC13CU SC14CU SC15CU SC16CU
45 359–352 SC09CD SC10CD SC11CD SC12CD SC13CD SC14CD SC15CD SC16CD
46 367–360 EQA1 EQA2 EQA3 EQA4 EQB1 EQB2 EQB3 EQB4
47 375–368 EQC1 EQC2 EQC3 EQC4 EQ3P1 EQ3P2 EQ3P3 EQ3P4
a
The asterisk in column 1 is not mapped in this case only; therefore, index 1601 corresponds to LED1.
b
Not used.
c
All contact outputs can be type a or type b. See Figure 8.15 for more information on the operation of output contacts OUT101–OUT103 and
OUT401–OUT404.
d
OUT401–OUT404 and IN401–IN404 are available only on model 0734ES2-6X.
e
See Figure 8.1 and Figure 8.2 for more information on the operation of optoisolated inputs.

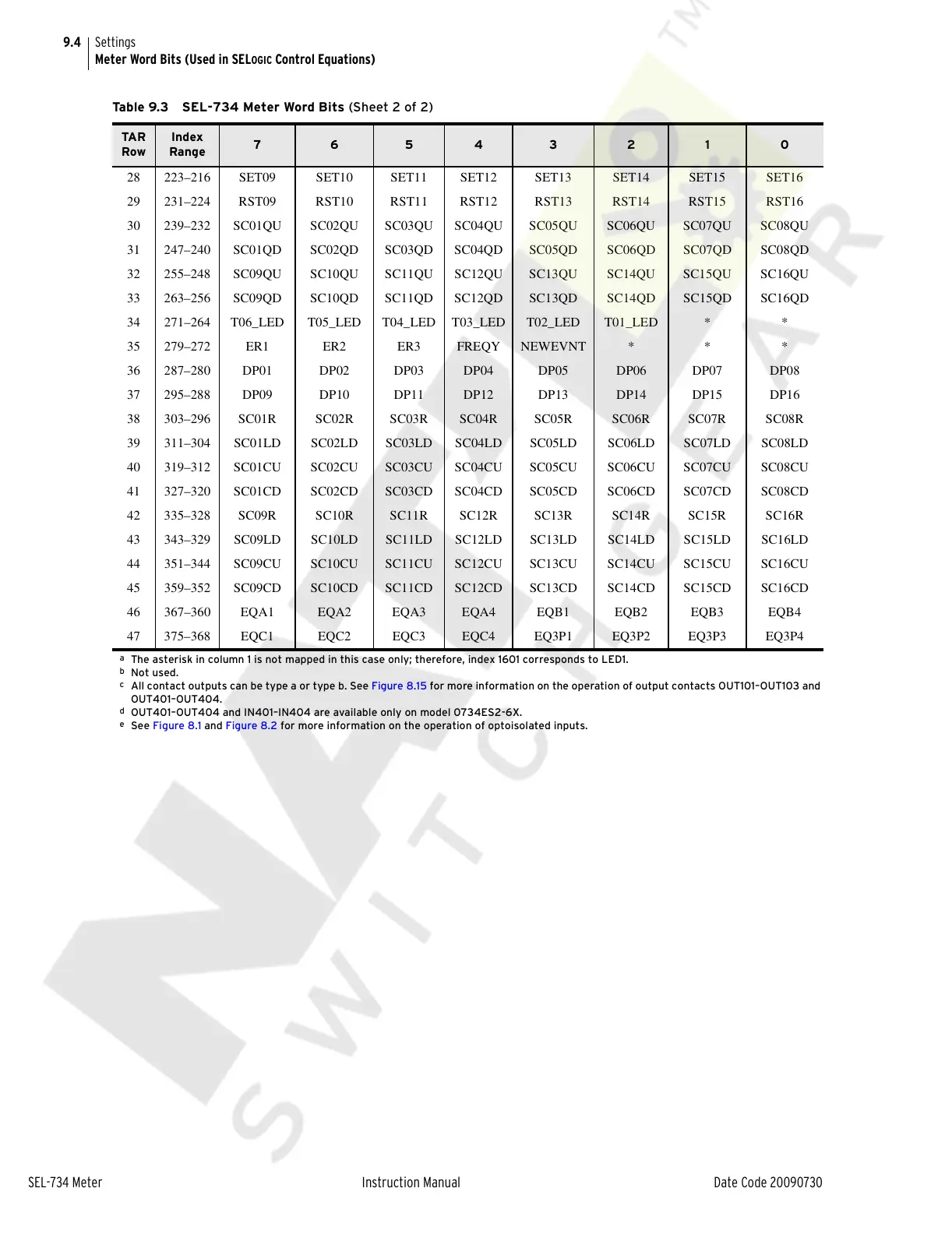

Ta b l e 9. 3 S E L - 7 3 4 M e t e r Wo rd B i t s (Sheet 2 of 2)
TAR
Row
Index
Range
7 6 5 4 3 2 1 0
