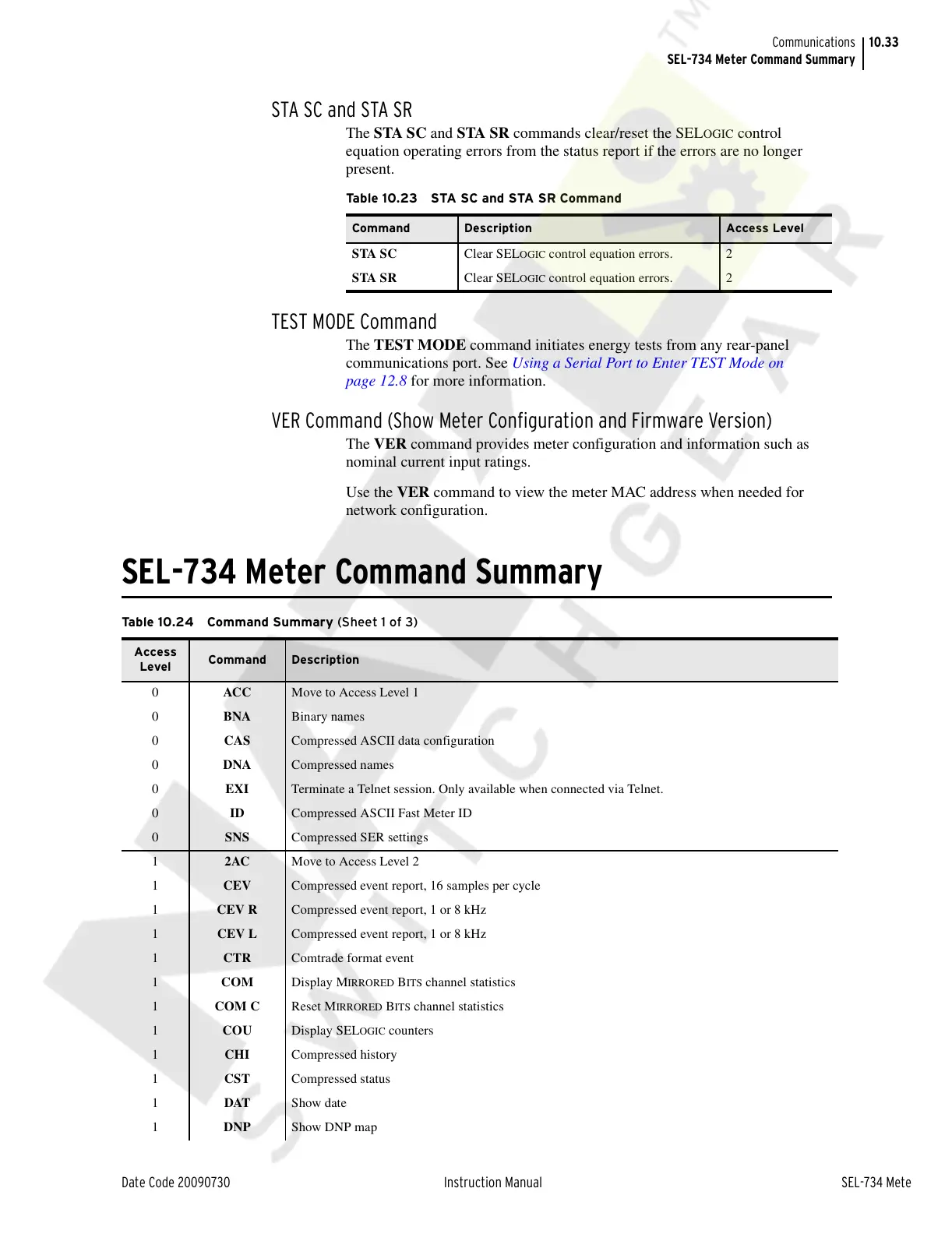

10.33
Date Code 20090730 Instruction Manual SEL-734 Meter
Communications
SEL-734 Meter Command Summary
STA SC and STA SR
The STA SC and STA SR commands clear/reset the SELOGIC control
equation operating errors from the status report if the errors are no longer
present.
TEST MODE Command
The TEST MODE command initiates energy tests from any rear-panel
communications port. See Using a Serial Port to Enter TEST Mode on
page 12.8 for more information.
VER Command (Show Meter Configuration and Firmware Version)
The VER command provides meter configuration and information such as
nominal current input ratings.
Use the VER command to view the meter MAC address when needed for
network configuration.
SEL-734 Meter Command Summary
Table 10.23 STA SC and STA SR Command
Command Description Access Level
STA SC Clear SELOGIC control equation errors. 2
STA SR Clear SEL
OGIC control equation errors. 2
Table 10.24 Command Summary (Sheet 1 of 3)
Access
Level
Command Description
0 ACC Move to Access Level 1
0 BNA Binary names
0 CAS Compressed ASCII data configuration
0 DNA Compressed names
0 EXI Terminate a Telnet session. Only available when connected via Telnet.
0 ID Compressed ASCII Fast Meter ID
0 SNS Compressed SER settings
1 2AC Move to Access Level 2
1 CEV Compressed event report, 16 samples per cycle
1 CEV R Compressed event report, 1 or 8 kHz
1 CEV L Compressed event report, 1 or 8 kHz
1 CTR Comtrade format event
1 COM Display M
IRRORED BITS channel statistics
1 COM C Reset M
IRRORED BITS channel statistics
1 COU Display SEL
OGIC counters
1 CHI Compressed history
1 CST Compressed status
1 DAT Show date
1 DNP Show DNP map
