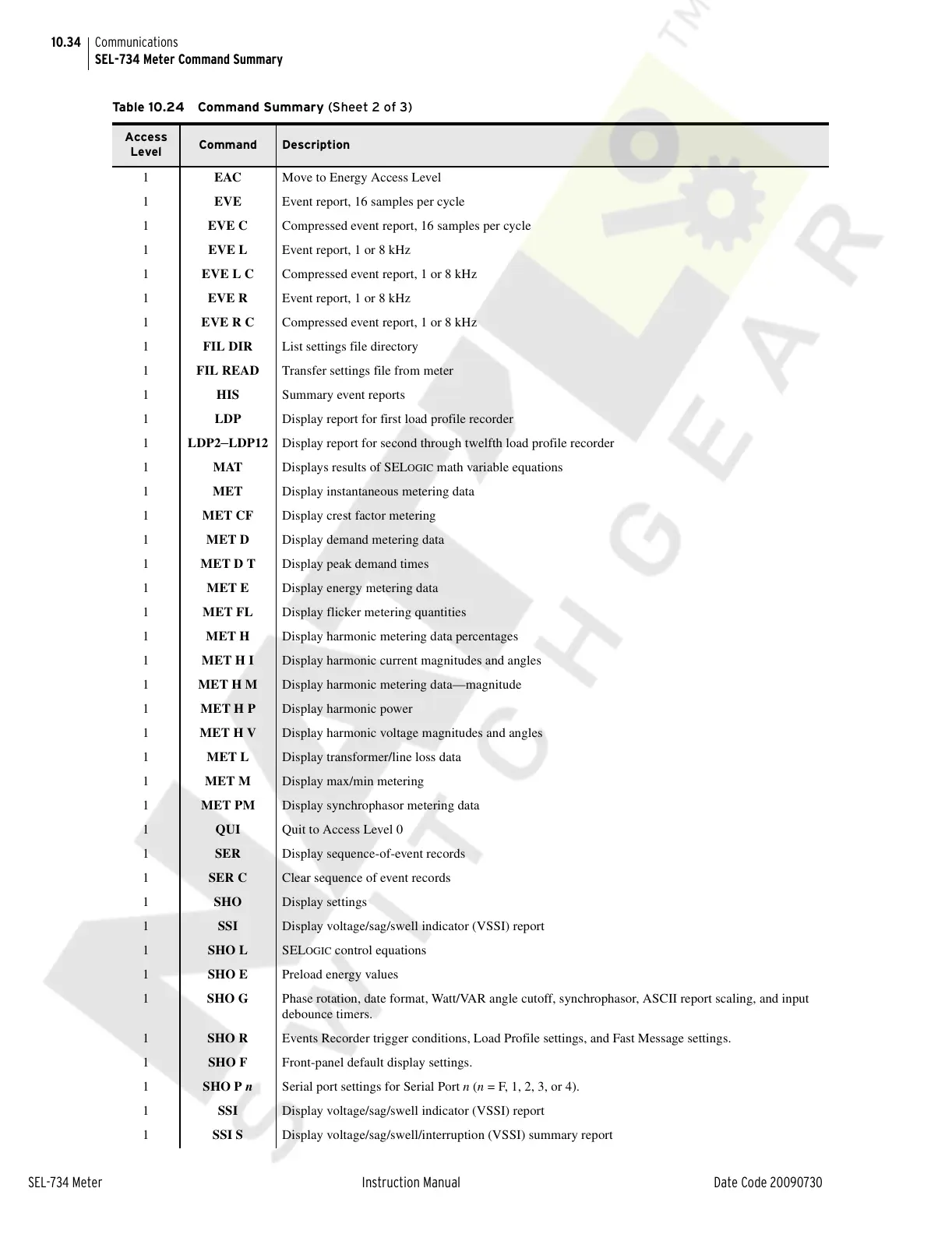

SEL-734 Meter Instruction Manual Date Code 20090730
Communications
SEL-734 Meter Command Summary
1 EAC Move to Energy Access Level
1 EVE Event report, 16 samples per cycle
1 EVE C Compressed event report, 16 samples per cycle
1 EVE L Event report, 1 or 8 kHz
1 EVE L C Compressed event report, 1 or 8 kHz
1 EVE R Event report, 1 or 8 kHz
1 EVE R C Compressed event report, 1 or 8 kHz
1 FIL DIR List settings file directory
1 FIL READ Transfer settings file from meter
1 HIS Summary event reports
1 LDP Display report for first load profile recorder
1 LDP2
–LDP12 Display report for second through twelfth load profile recorder
1 MAT Displays results of SEL
OGIC math variable equations
1 MET Display instantaneous metering data
1 MET CF Display crest factor metering
1 MET D Display demand metering data
1 MET D T Display peak demand times
1 MET E Display energy metering data
1 MET FL Display flicker metering quantities
1 MET H Display harmonic metering data percentages
1 MET H I Display harmonic current magnitudes and angles
1 MET H M Display harmonic metering data—magnitude
1 MET H P Display harmonic power
1 MET H V Display harmonic voltage magnitudes and angles
1 MET L Display transformer/line loss data
1 MET M Display max/min metering
1 MET PM Display synchrophasor metering data
1 QUI Quit to Access Level 0
1 SER Display sequence-of-event records
1 SER C Clear sequence of event records
1 SHO Display settings
1 SSI Display voltage/sag/swell indicator (VSSI) report
1 SHO L SEL
OGIC control equations
1 SHO E Preload energy values
1 SHO G Phase rotation, date format, Watt/VAR angle cutoff, synchrophasor, ASCII report scaling, and input
debounce timers.
1 SHO R Events Recorder trigger conditions, Load Profile settings, and Fast Message settings.
1 SHO F Front-panel default display settings.
1 SHO P n Serial port settings for Serial Port n (n = F, 1, 2, 3, or 4).
1 SSI Display voltage/sag/swell indicator (VSSI) report
1 SSI S Display voltage/sag/swell/interruption (VSSI) summary report
