4.22
SEL-734 Meter Instruction Manual Date Code 20090730
Metering
Transformer/Line Loss Compensation
View and Set
Transformer/Line
Loss Compensation
Use the MET L and SET commands to view and set the transformer/line
losses calculated by the meter (see MET L (Transformer/Line Loss Metering)
on page 10.21). Values shown in the MET report are uncompensated.
Calculations are performed every second to compensate the average power,
demand, peak demand, and energy values, as shown in Tab le 4.11 .

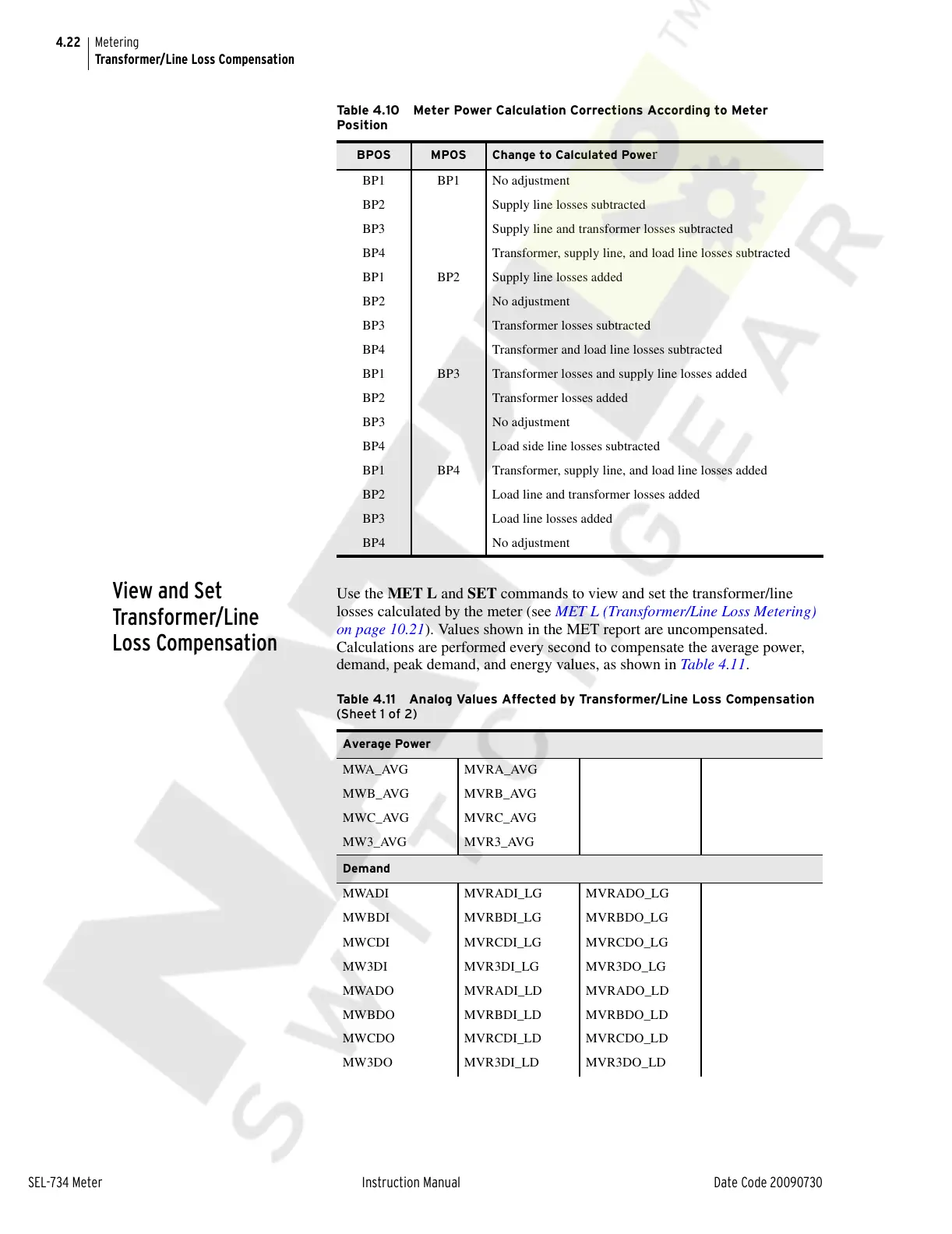

Table 4.10 Meter Power Calculation Corrections According to Meter
Position
BPOS MPOS Change to Calculated Power
BP1 BP1 No adjustment
BP2 Supply line losses subtracted
BP3 Supply line and transformer losses subtracted
BP4 Transformer, supply line, and load line losses subtracted
BP1 BP2 Supply line losses added
BP2 No adjustment
BP3 Transformer losses subtracted
BP4 Transformer and load line losses subtracted
BP1 BP3 Transformer losses and supply line losses added
BP2 Transformer losses added
BP3 No adjustment
BP4 Load side line losses subtracted
BP1 BP4 Transformer, supply line, and load line losses added
BP2 Load line and transformer losses added
BP3 Load line losses added
BP4 No adjustment
Table 4.11 Analog Values Affected by Transformer/Line Loss Compensation
(Sheet 1 of 2)
Average Power
MWA_AVG MVRA_AVG
MWB_AVG MVRB_AVG
MWC_AVG MVRC_AVG
MW3_AVG MVR3_AVG
Demand
MWADI MVRADI_LG MVRADO_LG
MWBDI MVRBDI_LG MVRBDO_LG
MWCDI MVRCDI_LG MVRCDO_LG
MW3DI MVR3DI_LG MVR3DO_LG
MWADO MVRADI_LD MVRADO_LD
MWBDO MVRBDI_LD MVRBDO_LD
MWCDO MVRCDI_LD MVRCDO_LD
MW3DO MVR3DI_LD MVR3DO_LD
