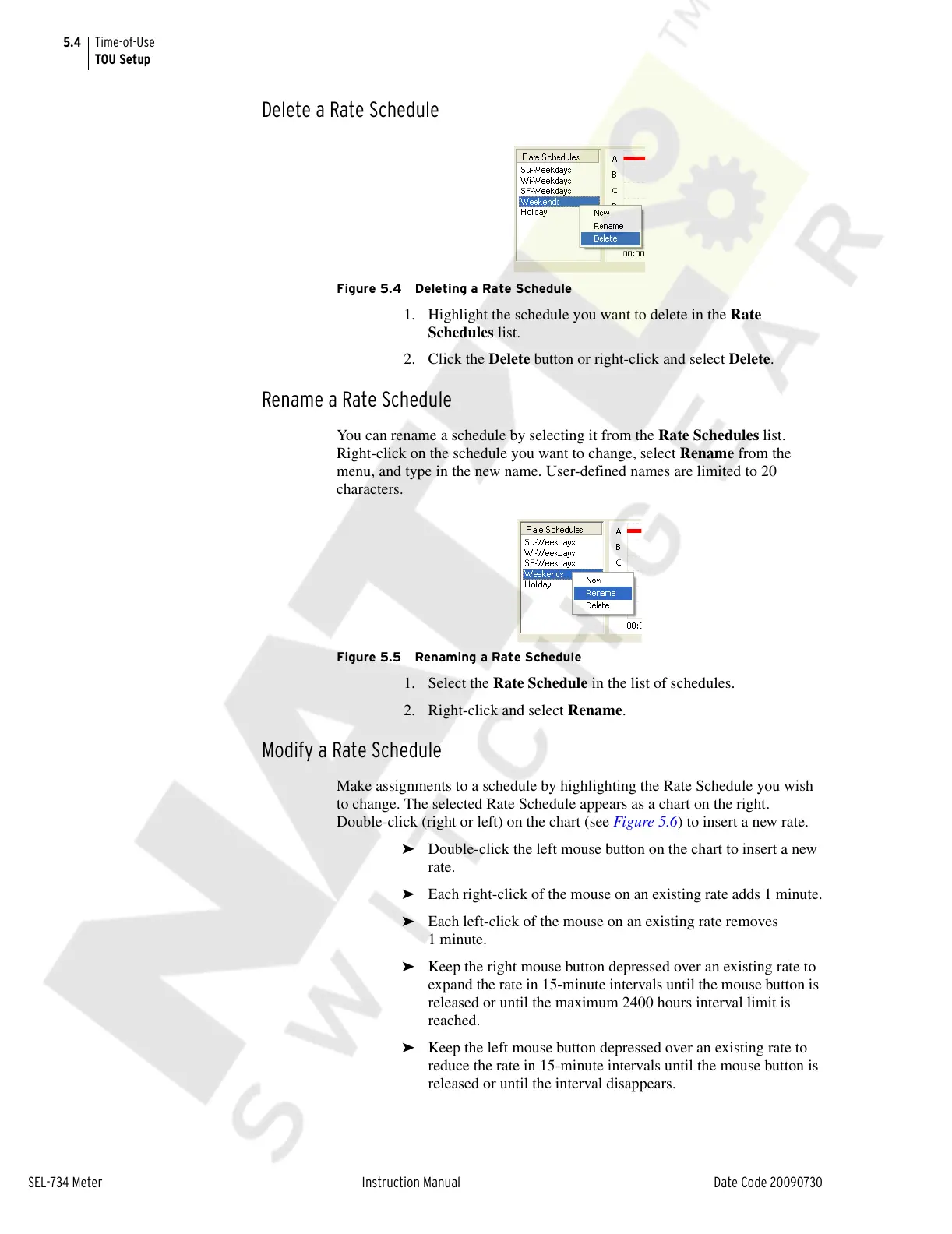

Time-of-Use
TOU Setup
Delete a Rate Schedule
Figure 5.4 Deleting a Rate Schedule
1. Highlight the schedule you want to delete in the Rate
Schedules list.
2. Click the Delete button or right-click and select Delete.
Rename a Rate Schedule
You can rename a schedule by selecting it from the Rate Schedules list.
Right-click on the schedule you want to change, select Rename from the
menu, and type in the new name. User-defined names are limited to 20
characters.
Figure 5.5 Renaming a Rate Schedule
1. Select the Rate Schedule in the list of schedules.
2. Right-click and select Rename.
Modify a Rate Schedule
Make assignments to a schedule by highlighting the Rate Schedule you wish
to change. The selected Rate Schedule appears as a chart on the right.
Double-click (right or left) on the chart (see Figure 5.6) to insert a new rate.
➤ Double-click the left mouse button on the chart to insert a new
rate.
➤ Each right-click of the mouse on an existing rate adds 1 minute.
➤ Each left-click of the mouse on an existing rate removes
1 minute.
➤ Keep the right mouse button depressed over an existing rate to
expand the rate in 15-minute intervals until the mouse button is
released or until the maximum 2400 hours interval limit is
reached.
➤ Keep the left mouse button depressed over an existing rate to
reduce the rate in 15-minute intervals until the mouse button is
released or until the interval disappears.
