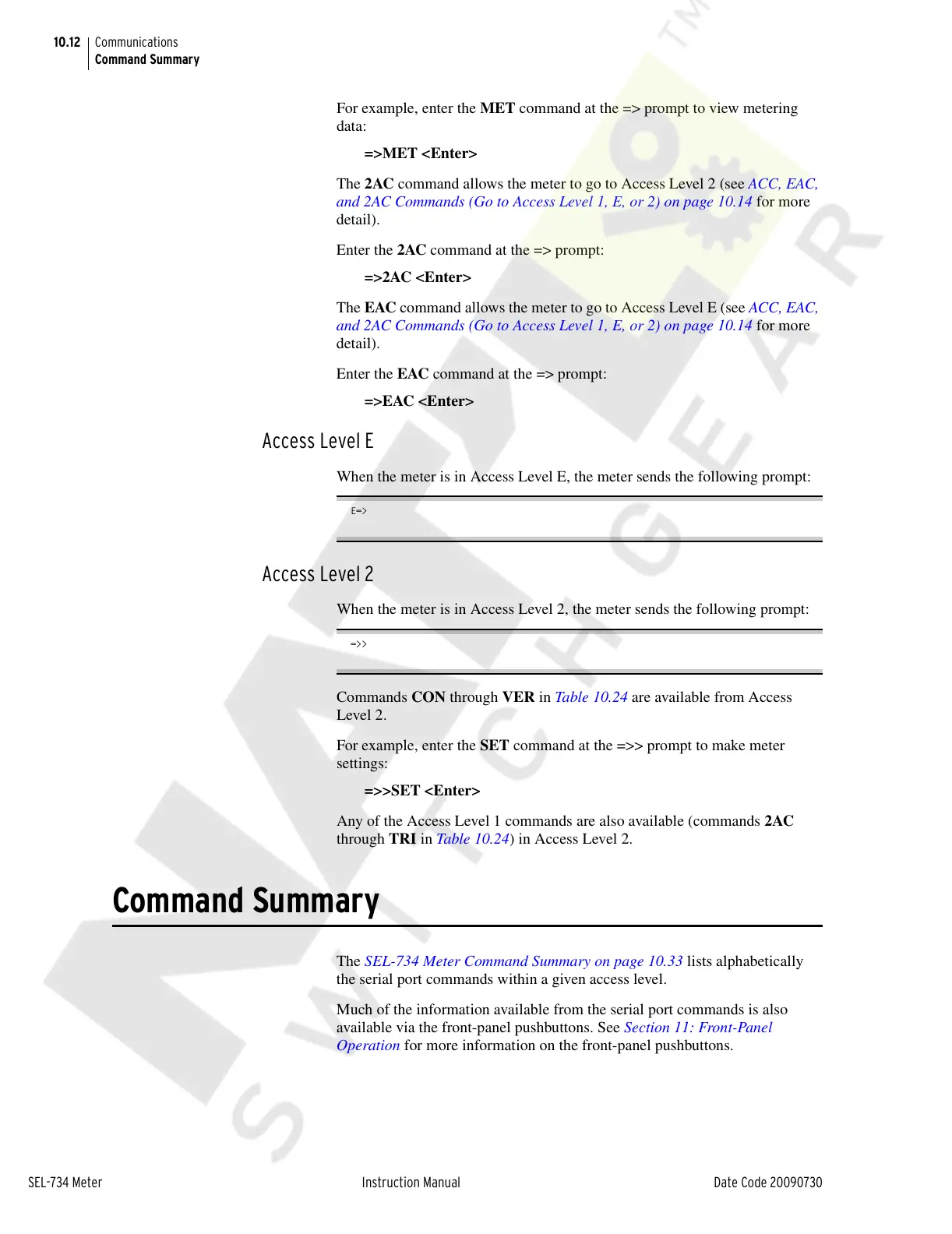

10.12
SEL-734 Meter Instruction Manual Date Code 20090730
Communications
Command Summary
For example, enter the MET command at the => prompt to view metering
data:
=>MET <Enter>
The 2AC command allows the meter to go to Access Level 2 (see ACC, EAC,
and 2AC Commands (Go to Access Level 1, E, or 2) on page 10.14 for more
detail).
Enter the 2AC command at the => prompt:
=>2AC <Enter>
The EAC command allows the meter to go to Access Level E (see ACC, EAC,
and 2AC Commands (Go to Access Level 1, E, or 2) on page 10.14 for more
detail).
Enter the EAC command at the => prompt:
=>EAC <Enter>
Access Level E
When the meter is in Access Level E, the meter sends the following prompt:
E=>
Access Level 2
When the meter is in Access Level 2, the meter sends the following prompt:
=>>
Commands CON through VER in Table 10.24 are available from Access
Level 2.
For example, enter the SET command at the =>> prompt to make meter
settings:
=>>SET <Enter>
Any of the Access Level 1 commands are also available (commands 2AC
through TRI in Table 10.24) in Access Level 2.
Command Summary
The SEL-734 Meter Command Summary on page 10.33 lists alphabetically
the serial port commands within a given access level.
Much of the information available from the serial port commands is also
available via the front-panel pushbuttons. See Section 11: Front-Panel
Operation for more information on the front-panel pushbuttons.
