Schweitzer Engineering Laboratories SEL-734 - SET L Command

SET.4 of 12 SEL-734 Settings Sheets

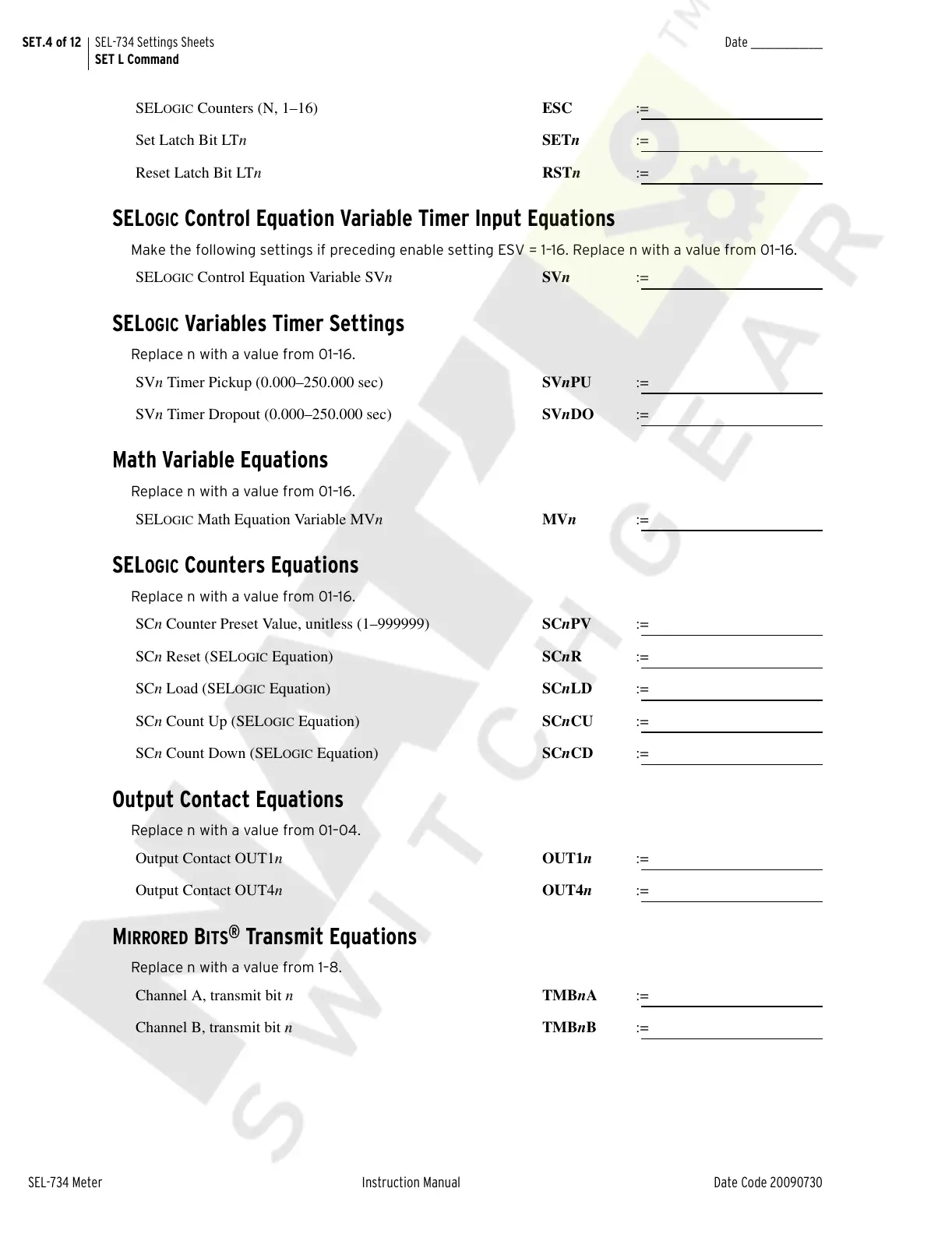

SET L Command
SEL-734 Meter Instruction Manual Date Code 20090730
Date _______________
SELOGIC Counters (N, 1–16) ESC :=
Set Latch Bit LTn
SETn :=
Reset Latch Bit LTn
RSTn :=
SELOGIC Control Equation Variable Timer Input Equations
Make the following settings if preceding enable setting ESV = 1–16. Replace n with a value from 01–16.
SELOGIC Control Equation Variable SVn SVn :=
SELOGIC Variables Timer Settings
Replace n with a value from 01–16.
SVn Timer Pickup (0.000–250.000 sec) SVnPU :=
SVn Timer Dropout (0.000–250.000 sec)
SVnDO :=
Math Variable Equations
Replace n with a value from 01–16.
SELOGIC Math Equation Variable MVn MVn :=
SELOGIC Counters Equations
Replace n with a value from 01–16.
SCn Counter Preset Value, unitless (1–999999) SCnPV :=
SCn Reset (SEL
OGIC Equation) SCnR :=
SCn Load (SEL
OGIC Equation) SCnLD :=
SCn Count Up (SEL
OGIC Equation) SCnCU :=
SCn Count Down (SEL
OGIC Equation) SCnCD :=
Output Contact Equations
Replace n with a value from 01–04.
Output Contact OUT1n OUT1n :=
Output Contact OUT4n
OUT4n :=
MIRRORED BITS
®
Transmit Equations
Replace n with a value from 1–8.
Channel A, transmit bit n TMBnA :=
Channel B, transmit bit n
TMBnB :=
