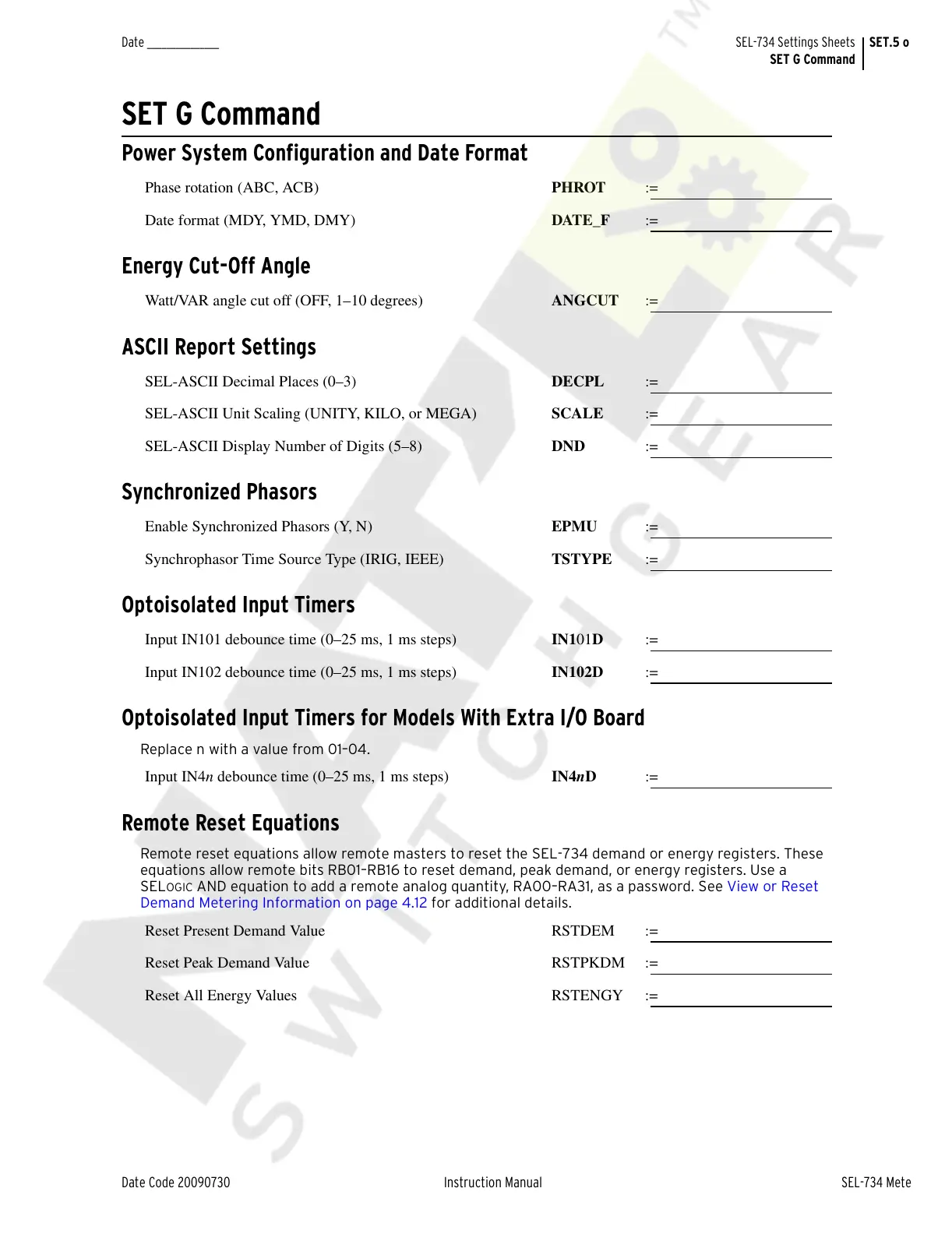

SET.5 of 12SEL-734 Settings Sheets
SET G Command
Date _______________
SET G Command
Power System Configuration and Date Format
Phase rotation (ABC, ACB) PHROT :=
Date format (MDY, YMD, DMY)
DATE_F :=
Energy Cut-Off Angle
Watt/VAR angle cut off (OFF, 1–10 degrees) ANGCUT :=
ASCII Report Settings
SEL-ASCII Decimal Places (0–3) DECPL :=
SEL-ASCII Unit Scaling (UNITY, KILO, or MEGA)
SCALE :=
SEL-ASCII Display Number of Digits (5–8)
DND :=
Synchronized Phasors
Enable Synchronized Phasors (Y, N) EPMU :=
Synchrophasor Time Source Type (IRIG, IEEE)
TSTYPE :=
Optoisolated Input Timers
Input IN101 debounce time (0–25 ms, 1 ms steps) IN101D :=
Input IN102 debounce time (0–25 ms, 1 ms steps)
IN102D :=
Optoisolated Input Timers for Models With Extra I/O Board
Replace n with a value from 01–04.
Input IN4n debounce time (0–25 ms, 1 ms steps) IN4nD :=
Remote Reset Equations
Remote reset equations allow remote masters to reset the SEL-734 demand or energy registers. These
equations allow remote bits RB01–RB16 to reset demand, peak demand, or energy registers. Use a
SEL
OGIC AND equation to add a remote analog quantity, RA00–RA31, as a password. See View or Reset
Demand Metering Information on page 4.12 for additional details.
Reset Present Demand Value RSTDEM :=
Reset Peak Demand Value
RSTPKDM :=
Reset All Energy Values
RSTENGY :=
