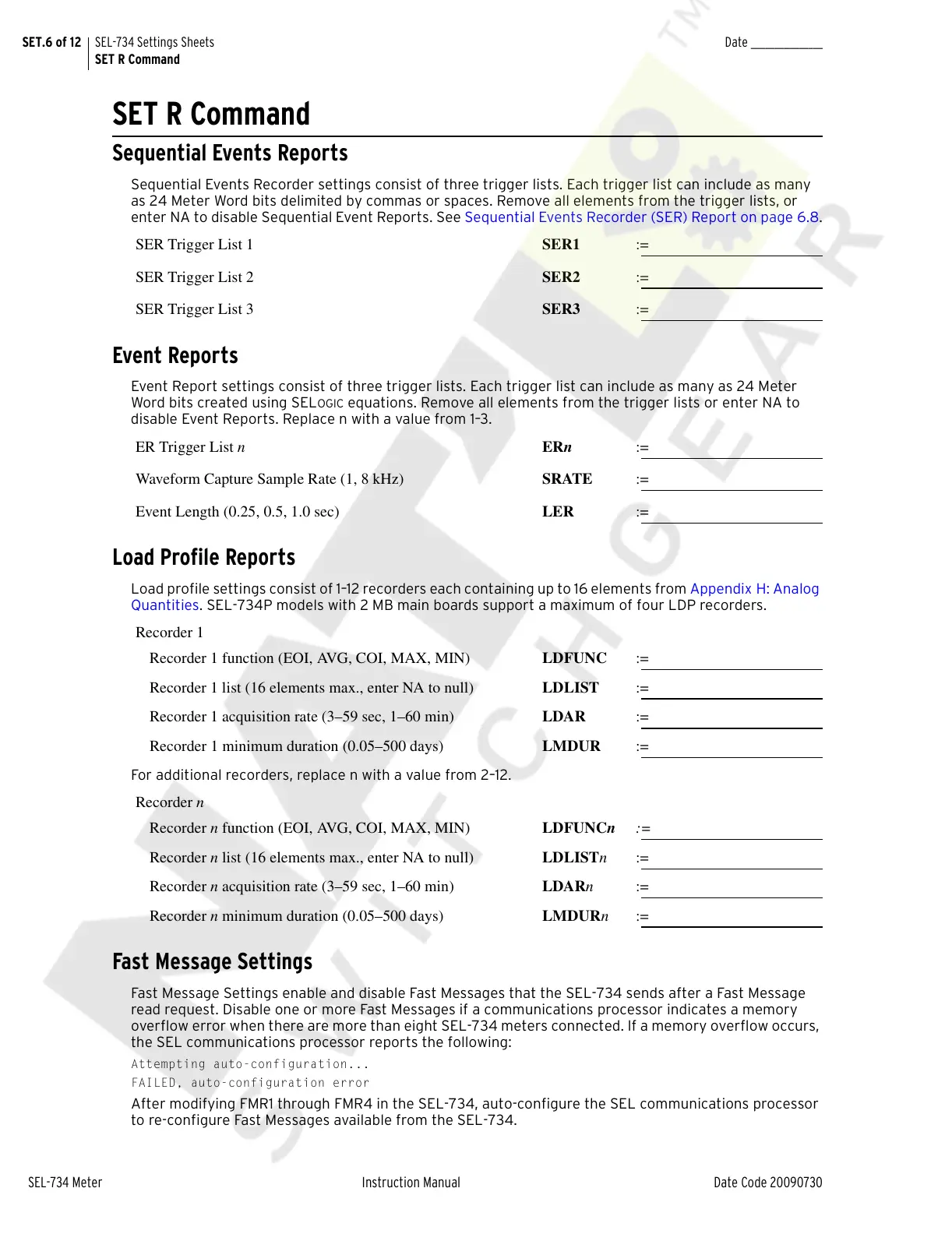

SET.6 of 12 SEL-734 Settings Sheets
SET R Command
SEL-734 Meter Instruction Manual Date Code 20090730
Date _______________
SET R Command
Sequential Events Reports
Sequential Events Recorder settings consist of three trigger lists. Each trigger list can include as many
as 24 Meter Word bits delimited by commas or spaces. Remove all elements from the trigger lists, or
enter NA to disable Sequential Event Reports. See Sequential Events Recorder (SER) Report on page 6.8.
SER Trigger List 1 SER1 :=
SER Trigger List 2
SER2 :=
SER Trigger List 3
SER3 :=
Event Reports
Event Report settings consist of three trigger lists. Each trigger list can include as many as 24 Meter
Word bits created using SEL
OGIC equations. Remove all elements from the trigger lists or enter NA to
disable Event Reports. Replace n with a value from 1–3.
ER Trigger List n ERn :=
Waveform Capture Sample Rate (1, 8 kHz)
SRATE :=
Event Length (0.25, 0.5, 1.0 sec)
LER :=
Load Profile Reports
Load profile settings consist of 1–12 recorders each containing up to 16 elements from Appendix H: Analog
Quantities. SEL-734P models with 2 MB main boards support a maximum of four LDP recorders.
Recorder 1
Recorder 1 function (EOI, AVG, COI, MAX, MIN)
LDFUNC :=
Recorder 1 list (16 elements max., enter NA to null)
LDLIST :=
Recorder 1 acquisition rate (3–59 sec, 1–60 min)
LDAR :=
Recorder 1 minimum duration (0.05–500 days)
LMDUR :=
For additional recorders, replace n with a value from 2–12.
Recorder n
Recorder n function (EOI, AVG, COI, MAX, MIN)
LDFUNCn :=
Recorder n list (16 elements max., enter NA to null)
LDLISTn :=
Recorder n acquisition rate (3–59 sec, 1–60 min)
LDARn :=
Recorder n minimum duration (0.05–500 days)
LMDURn :=
Fast Message Settings
Fast Message Settings enable and disable Fast Messages that the SEL-734 sends after a Fast Message
read request. Disable one or more Fast Messages if a communications processor indicates a memory
overflow error when there are more than eight SEL-734 meters connected. If a memory overflow occurs,
the SEL communications processor reports the following:
Attempting auto-configuration...
FAILED, auto-configuration error
After modifying FMR1 through FMR4 in the SEL-734, auto-configure the SEL communications processor
to re-configure Fast Messages available from the SEL-734.
