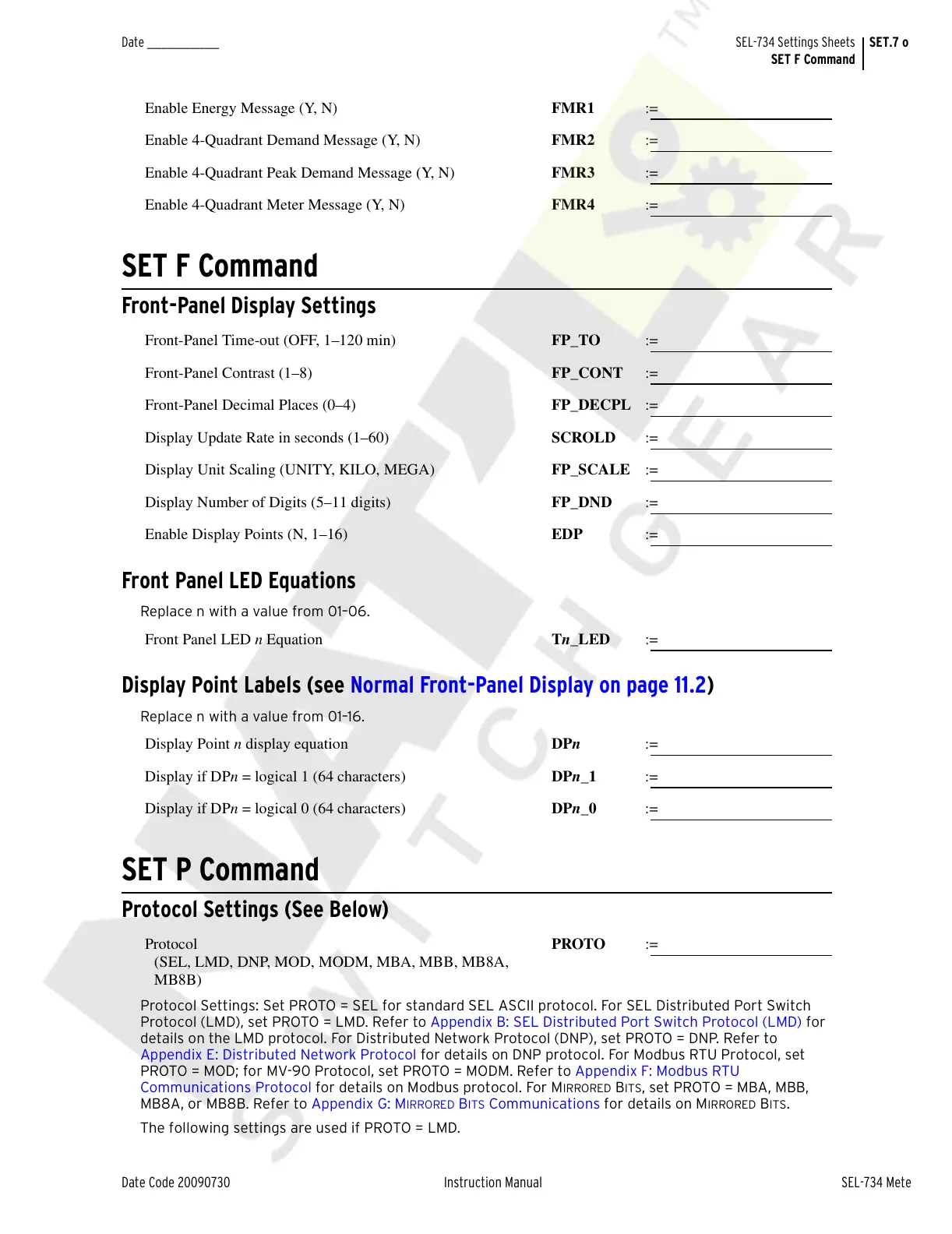

Date Code 20090730 Instruction Manual SEL-734 Meter
SET.7 of 12SEL-734 Settings Sheets
SET F Command
Date _______________
Enable Energy Message (Y, N) FMR1 :=
Enable 4-Quadrant Demand Message (Y, N)
FMR2 :=
Enable 4-Quadrant Peak Demand Message (Y, N)
FMR3 :=
Enable 4-Quadrant Meter Message (Y, N)
FMR4 :=
SET F Command
Front-Panel Display Settings
Front-Panel Time-out (OFF, 1–120 min) FP_TO :=
Front-Panel Contrast (1–8)
FP_CONT :=
Front-Panel Decimal Places (0–4)
FP_DECPL :=
Display Update Rate in seconds (1–60)
SCROLD :=
Display Unit Scaling (UNITY, KILO, MEGA)
FP_SCALE :=
Display Number of Digits (5–11 digits)
FP_DND :=
Enable Display Points (N, 1–16)
EDP :=
Front Panel LED Equations
Replace n with a value from 01–06.
Front Panel LED n Equation Tn_LED :=
Display Point Labels (see Normal Front-Panel Display on page 11.2)
Replace n with a value from 01–16.
Display Point n display equation DPn :=
Display if DPn = logical 1 (64 characters)
DPn_1 :=
Display if DPn = logical 0 (64 characters) DPn_0 :=
SET P Command
Protocol Settings (See Below)
Protocol
(SEL, LMD, DNP, MOD, MODM, MBA, MBB, MB8A,
MB8B)
PROTO :=
Protocol Settings: Set PROTO = SEL for standard SEL ASCII protocol. For SEL Distributed Port Switch
Protocol (LMD), set PROTO = LMD. Refer to Appendix B: SEL Distributed Port Switch Protocol (LMD) for
details on the LMD protocol. For Distributed Network Protocol (DNP), set PROTO = DNP. Refer to
Appendix E: Distributed Network Protocol for details on DNP protocol. For Modbus RTU Protocol, set
PROTO = MOD; for MV-90 Protocol, set PROTO = MODM. Refer to Appendix F: Modbus RTU
Communications Protocol for details on Modbus protocol. For M
IRRORED BITS, set PROTO = MBA, MBB,
MB8A, or MB8B. Refer to Appendix G: M
IRRORED BITS Communications for details on MIRRORED BITS.
The following settings are used if PROTO = LMD.
