H.13
Date Code 20090730 Instruction Manual SEL-734 Meter
Analog Quantities
Z_PF_AT_MVA_1_PD Power factor at the
highest peak apparent
power for rate x
xx x
Z_PF_AT_MVAR_1_PD Power factor at the
highest peak reactive
power for rate x
xx x
Z_PF_AT_MW_1_REC_PD Power factor at the
highest received peak real
power for rate x
xx x
Z_PF_AT_MVA_1_REC_PD Power factor at the
highest received peak
apparent power for rate x
xx x
Z_PF_AT_MVAR_1_REC_PD Power factor at the
received peak reactive
power for rate x
xx x
Z_MW_n_PD Value, time, and date of
3-phase peak real power
number n
xx x
Z_MVA_n_PD Value, time, and date of
3-phase peak apparent
power number n
xx x
Z_MVAR_n_PD Value, time, and date of
3-phase peak reactive
power number n
xx x
Z_MW_n_REC_PD Value, time, and date of
3-phase received peak real
power number n
xx x
Z_MVA_n_REC_PD Value, time, and date
of 3-phase received
peak apparent power num-
ber n
xx x
Z_MVAR_n_REC_PD Value, time, and date
of 3-phase received
peak reactive power num-
ber n
xx x
Z_PF_AT_MW_n_PD Power factor at the num-
ber n peak real power
xx x
Z_PF_AT_MVA_n_PD Power factor at the num-
ber n peak apparent power
xx x
Z_PF_AT_MVAR_n_PD Power factor at the
number n peak reactive
power
xx x
Z_PF_AT_MW_n_REC_PD Power factor at the num-
ber n received peak real
power
xx x
Z_PF_AT_MVA_n_REC_PD Power factor at the num-
ber n received peak appar-
ent power
xx x
Z_PF_AT_MVAR_n_REC_PD Power factor at the num-
ber n received peak reac-
tive power
xx x

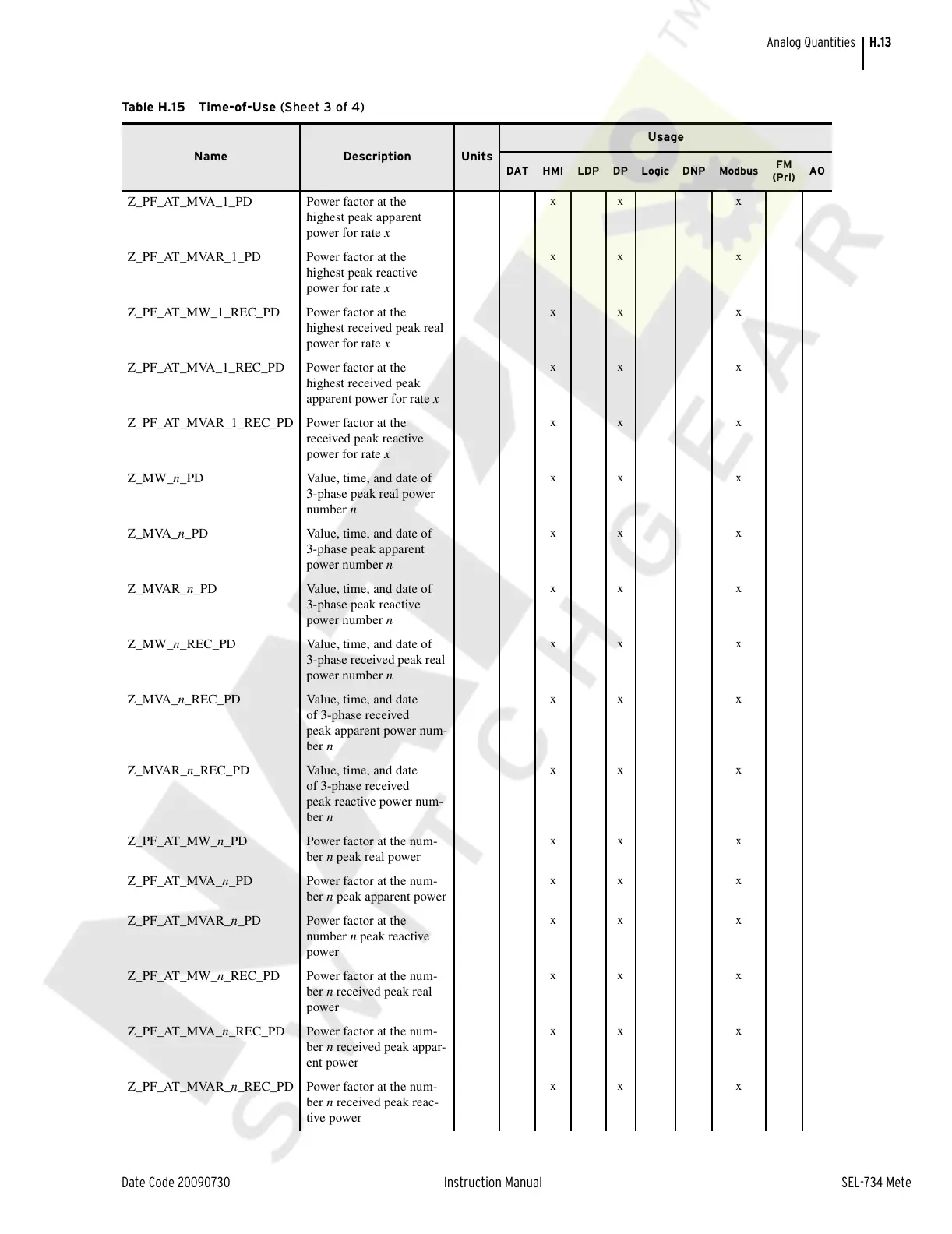

Table H.15 Time-of-Use (Sheet 3 of 4)
Name Description Units
Usage
DAT HMI LDP DP Logic DNP Modbus
FM
(Pri)
AO
