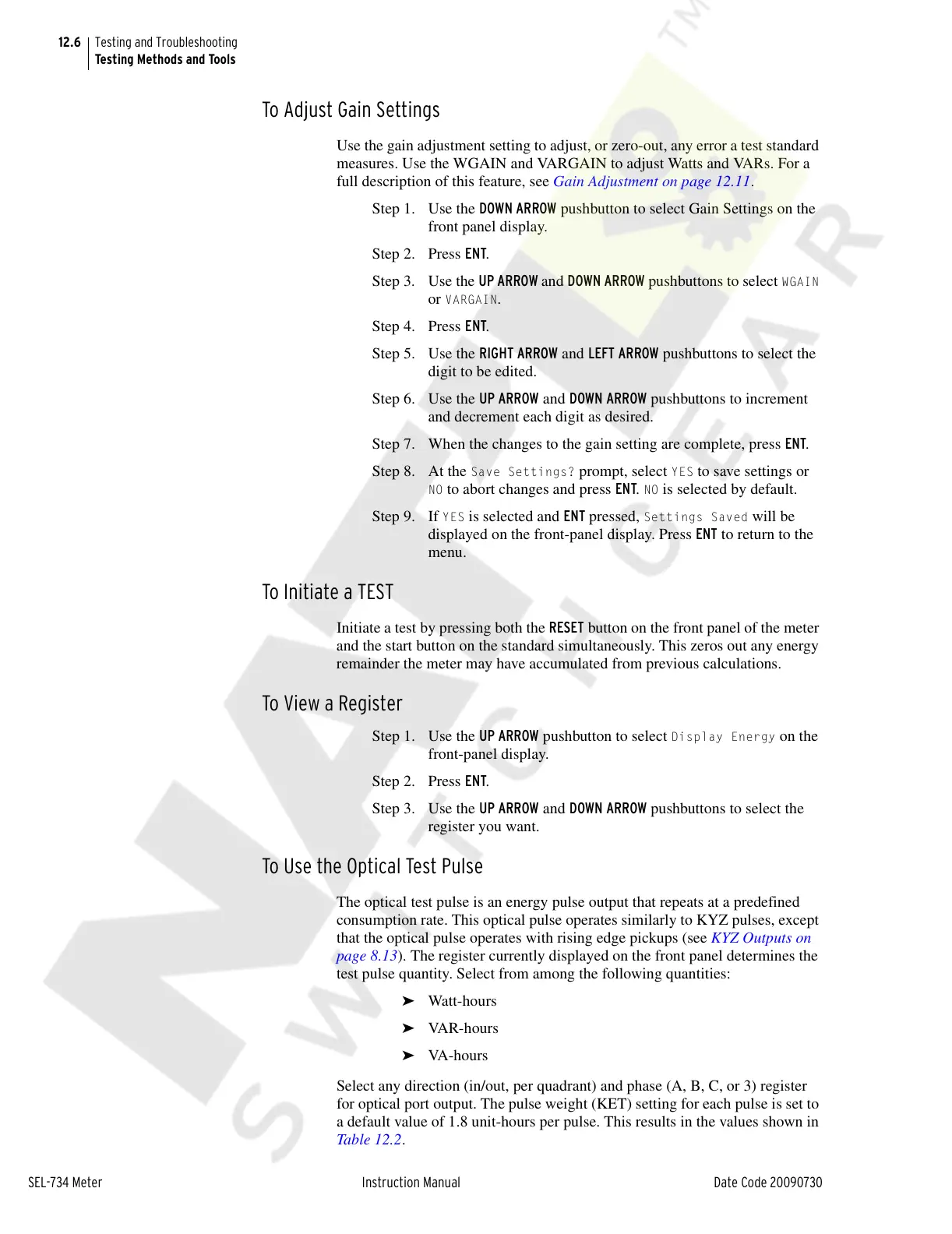

12.6
SEL-734 Meter Instruction Manual Date Code 20090730
Testing and Troubleshooting
Testing Methods and Tools
To Adjust Gain Settings
Use the gain adjustment setting to adjust, or zero-out, any error a test standard
measures. Use the WGAIN and VARGAIN to adjust Watts and VARs. For a
full description of this feature, see Gain Adjustment on page 12.11.
Step 1. Use the DOWN ARROW pushbutton to select Gain Settings on the
front panel display.
Step 2. Press ENT.
Step 3. Use the UP ARROW and DOWN ARROW pushbuttons to select
WGAIN
or
VARGAIN.
Step 4. Press ENT.
Step 5. Use the RIGHT ARROW and LEFT ARROW pushbuttons to select the
digit to be edited.
Step 6. Use the UP ARROW and DOWN ARROW pushbuttons to increment
and decrement each digit as desired.
Step 7. When the changes to the gain setting are complete, press ENT.
Step 8. At the
Save Settings? prompt, select YES to save settings or
NO to abort changes and press ENT. NO is selected by default.
Step 9. If
YES is selected and ENT pressed, Settings Saved will be
displayed on the front-panel display. Press ENT to return to the
menu.
To Initiate a TEST
Initiate a test by pressing both the RESET button on the front panel of the meter
and the start button on the standard simultaneously. This zeros out any energy
remainder the meter may have accumulated from previous calculations.
To View a Register
Step 1. Use the UP ARROW pushbutton to select Display Energy on the
front-panel display.
Step 2. Press ENT.
Step 3. Use the UP ARROW and DOWN ARROW pushbuttons to select the
register you want.
To Use the Optical Test Pulse
The optical test pulse is an energy pulse output that repeats at a predefined
consumption rate. This optical pulse operates similarly to KYZ pulses, except
that the optical pulse operates with rising edge pickups (see KYZ Outputs on
page 8.13). The register currently displayed on the front panel determines the
test pulse quantity. Select from among the following quantities:
➤ Watt-hours
➤ VAR-hours
➤ VA-hours
Select any direction (in/out, per quadrant) and phase (A, B, C, or 3) register
for optical port output. The pulse weight (KET) setting for each pulse is set to
a default value of 1.8 unit-hours per pulse. This results in the values shown in
Table 12.2.
