E.12
SEL-734 Meter Instruction Manual Date Code 20090730
Distributed Network Protocol
Configuration
30,32 774–822 Harmonics—IN Magnitudes (2nd . . . 50th) DECPLA, ANADBA
30,32 823–871 Harmonics—IN Angles (2nd . . . 50th) (In 1/100ths of a degree) ANADBM
30,32 872–920 Harmonics—VA Magnitudes (VAB if Delta) (2nd . . . 50th) DECPLV, ANADBV
30,32 921–969 Harmonics–VA Angles (VAB if Delta) (2nd . . . 50th) (In ANADBM
30,32 970–1018 Harmonics—VB Magnitudes (VBC if Delta) (2nd . . . 50th) DECPLV, ANADBV
30,32 1019–1067 Harmonics–VB Angles (VBC if Delta) (2nd . . . 50th)
(In 1/100ths of a degree)
ANADBM
30,32 1068–1116 Harmonics—VC Magnitudes (VCA if Delta) (2nd . . . 50th) DECPLV, ANADBV
30,32 1117–1165 Harmonics—VC Angles (VCA if Delta) (2nd . . . 50th)
(In 1/100ths of a degree)
ANADBM
30,32 1166–1214 Harmonics—MWA Magnitudes (set to 0 if Delta)
(2nd . . . 50th)
DECPLM, ANADBM
30,32 1215–1263 Harmonics—MWB Magnitudes (set to 0 if Delta)
(2nd . . . 50th)
DECPLM, ANADBM
30,32 1264–1312 Harmonics—MWC Magnitudes (set to 0 if Delta)
(2nd . . . 50th)
DECPLM, ANADBM
30,32 1313–1361 Harmonics—MW3Magnitudes (2nd . . . 50th) DECPLM, ANADBM
30,32 1362–1369 Reserved
30,32 1370–1385 SEL
OGIC Math Variables (1 . . . 16) DECPLM, ANADBM
30,32 1386–1389 Reserved
30,32 1390–1392 Flicker—P
ST
VA, P
ST
VB, P
ST
VC (if WYE), P
ST
VA B ,
P
ST
VBC, P
ST
VCA (if Delta)
DECPLM, ANADBM
30,32 1393–1395 Flicker—P
LT
VA, P
LT
VB, P
LT
VC (if WYE), P
LT
VA B ,
P
LT
VBC, P
LT
VCA (if Delta)
DECPLM, ANADBM
30,32 1398–1399 Reserved
30,32 1400–1402 E Voltage Deviation (% of nominal in 1/100ths of a Volt)—
Va, Vb, Vc (Vab, Vbc, Vca if Delta)
DECPLM, ANADBM
30,32 1403 E Frequency Deviation (% of nominal in 1/100ths of a Hertz) DECPLM, ANADBM
30,32 1410 I_IMB (Current Imbalance) DECPLE
30,32 1411 V_IMB (Voltage Imbalance) DECPLE
30,32 1412 I_AVE (Average Current, 3-phase) DECPLE
30,32 1413 V_AVE (Average Voltage, 3-phase) DECPLE
Analog Outputs
40,41 00–31 Remote Analog Outputs 0–31 (RAxx)
40,41 32–38 Reserved
40,41 39 Load Profile Recorder Selection
NOTE:
Write a 0–11 to Object 40, 41, index 39 to select between LDP1 and LDP12. See Load Profile on page E.2 for details.

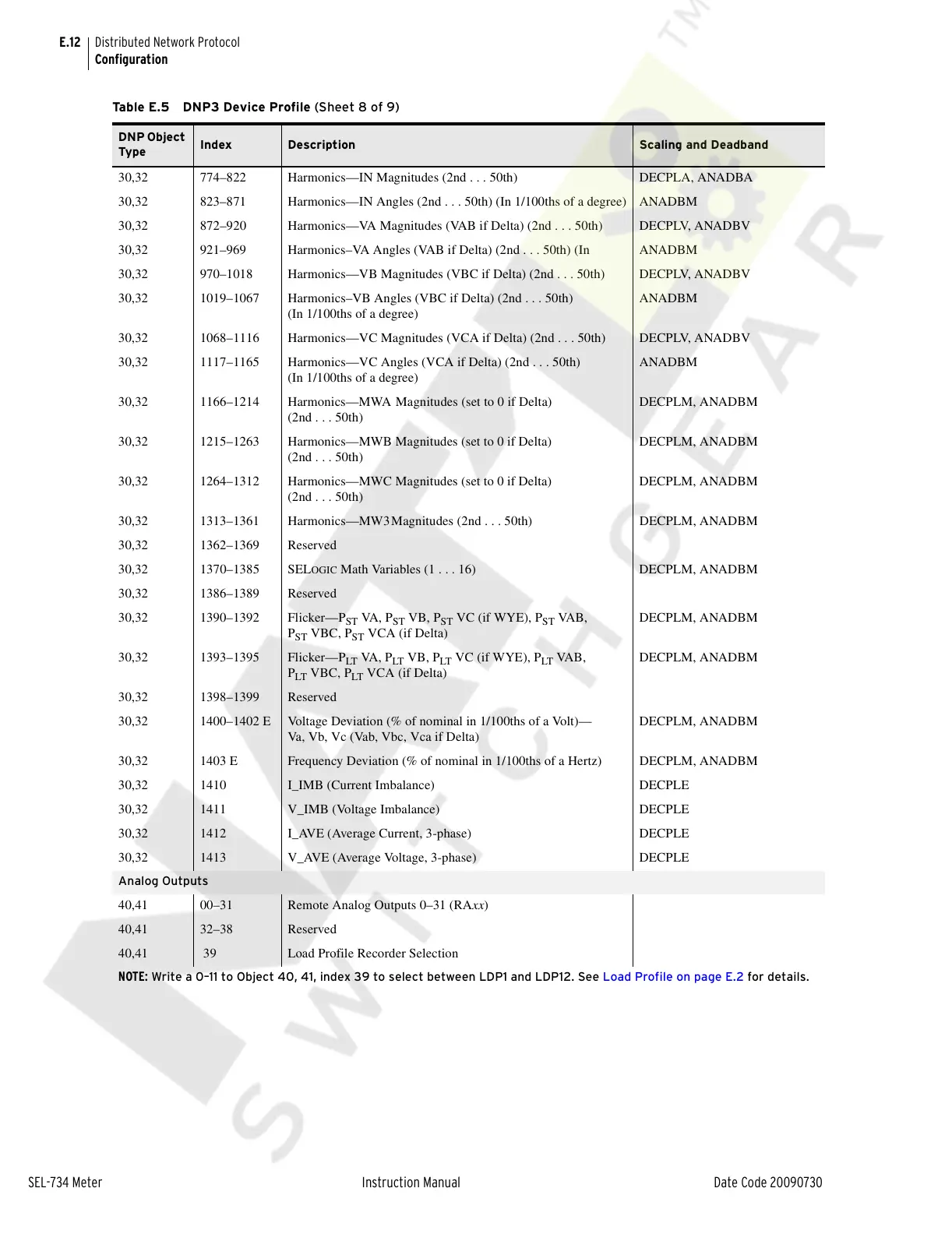

Table E.5 DNP3 Device Profile (Sheet 8 of 9)
DNP Object
Type
Index Description Scaling and Deadband
