F.14
SEL-734 Meter Instruction Manual Date Code 20090730
Modbus RTU Communications Protocol
Modbus RTU Communications Protocol
456 01C8 Selected Record type See SER Triggering on
page 6.8
ENUM
457 01C9 Selected Record Time seconds, ss.sss 0 59999 UINT1000
458 01CA minutes 0 59 UINT
459 01CB hour 0 23 UINT
460 01CC Selected Record Date day 1 31 UINT
461 01CD month 1 12 UINT
462 01CE year 2000 9999 UINT
463 01CF Selected Record +1 type ENUM
464–469 01D0–01D5 Selected Record +1 Time and Date
470 01D6 Selected Record +2 type ENUM
471–476 01D7–01DC Selected Record +2 Time and Date
477 01DD Selected Record +3 type ENUM
478–483 01DE–01E3 Selected Record +3 Time and Date
484 01E4 Selected Record +4 type ENUM
485–490 01E5–01EA Selected Record +4 Time and Date
491 01EB Selected Record +5 type ENUM
492–497 01EC–01F1 Selected Record +5 Time and Date
498 01F2 Selected Record +6 type ENUM
499–504 01F3–01F8 Selected Record +6 Time and Date
505 01F9 Selected Record +7 type ENUM
506–511 01FA–01FF Selected Record +7 Time and Date
512 0200 Selected Record +8 type ENUM
513–518 0201–0206 Selected Record +8 Time and Date
519 0207 Selected Record +9 type ENUM
520–525 0208–020D Selected Record +9 Time and Date
526–767 020E–02FF Reserved
Metering
Instantaneous Metering
Analog values are in secondary.
768 0300 IA Current Magnitude Fundamental UINT1000
769 0301 IA Current Angle –1800 1800 INT10
770 0302 IB Current Magnitude Fundamental UINT1000
771 0303 IB Current Angle –1800 1800 INT10
772 0304 IC Current Magnitude Fundamental UINT1000
773 0305 IC Current Angle –1800 1800 INT10
774 0306 IN Current Magnitude Fundamental UINT1000
775 0307 IN Current Angle –1800 1800 INT10
776 0308 IG Current Magnitude UINT1000
777 0309 IG Current Angle –1800 1800 INT10
778 030A I1 Current Magnitude UINT1000
779 030B I1 Current Angle –1800 1800 INT10

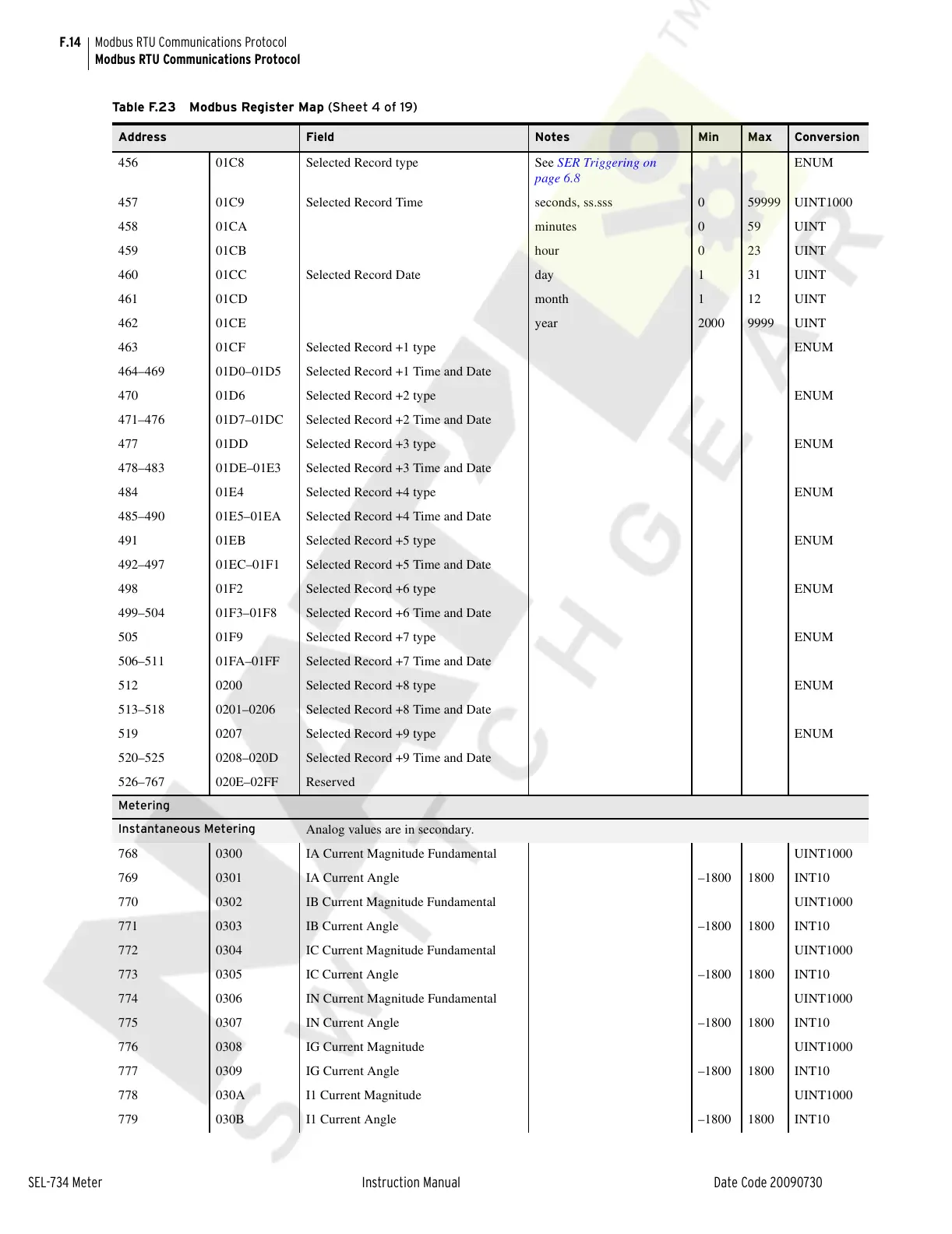

Table F.23 Modbus Register Map (Sheet 4 of 19)
Address Field Notes Min Max Conversion
