F.26
SEL-734 Meter Instruction Manual Date Code 20090730
Modbus RTU Communications Protocol
Modbus RTU Communications Protocol
12828–12829 321C–321D Rate A Max MVA Received Peak Demand LONG
12830–12831 321E–321F PF at Rate A MVA Received Peak Demand LONG1000
12832–12833 3220–3221 Rate B Max MW Received Peak Demand LONG
12834–12835 3222–3223 PF at Rate B Max MW Received Peak Demand LONG1000
12836–12837 3224–3225 Rate B Max MVAR Received Peak Demand LONG
12838–12839 3226–3227 PF at Rate B Max MVAR Received Peak Demand LONG1000
12840–12841 3228–3229 Rate B Max MVA Received Peak Demand LONG
12842–12843 322A–322B PF at Rate B MVA Received Peak Demand LONG1000
12844–12845 322C–322D Rate C Max MW Received Peak Demand LONG
12846–12847 322E–322F PF at Rate C Max MW Received Peak Demand LONG1000
12848–12849 3230–3231 Rate C Max MVAR Received Peak Demand LONG
12850–12851 3232–3233 PF at Rate C Max MVAR Received Peak Demand LONG1000
12852–12853 3234–3235 Rate C Max MVA Received Peak Demand LONG
12854–12855 3236–3237 PF at Rate C MVA Received Peak Demand LONG1000
12856–12857 3238–3239 Rate D Max MW Received Peak Demand LONG
12858–12859 323A–323B PF at Rate D Max MW Received Peak Demand LONG1000
12860–12861 323C–323D Rate D Max MVAR Received Peak Demand LONG
12862–12863 323E–323F PF at Rate D Max MVAR Received Peak Demand LONG1000
12864–12865 3240–3241 Rate D Max MVA Received Peak Demand LONG
12866–12867 3242–3243 PF at Rate D MVA Received Peak Demand LONG1000
12868–12869 3244–3245 Rate E Max MW Received Peak Demand LONG
12870–12871 3246–3247 PF at Rate E Max MW Received Peak Demand LONG1000
12872–12873 3248–3249 Rate E Max MVAR Received Peak Demand LONG
12874–12875 324A–324B PF at Rate E Max MVAR Received Peak Demand LONG1000
12876–12877 324C–324D Rate E Max MVA Received Peak Demand LONG
12878–12879 324E–324F PF at Rate E MVA Received Peak Demand LONG1000
12880–12881 3250–3251 Rate F Max MW Received Peak Demand LONG
12882–12883 3252–3253 PF at Rate F Max MW Received Peak Demand LONG1000
12884–12885 3254–3255 Rate F Max MVAR Received Peak Demand LONG
12886–12887 3256–3257 PF at Rate F Max MVAR Received Peak Demand LONG1000
12888–12889 3258–3259 Rate F Max MVA Received Peak Demand LONG
12890–12891 325A–325B PF at Rate F MVA Received Peak Demand LONG1000
12892–12909 325C–326D 1st Max MW, MVAR, MVA Rcvd Peak Demand Time and Date UINT
12910–12927 326E–327F 2nd Max MW, MVAR, MVA Rcvd Peak Demand Time and Date UINT
12928–12945 3280–328B 3rd Max MW, MVAR, MVA Rcvd Peak Demand Time and Date UINT
12946–12963 3292–32A3 4th Max MW, MVAR, MVA Rcvd Peak Demand Time and Date UINT
12964–12981 32A4–32B5 5th Max MW, MVAR, MVA Rcvd Peak Demand Time and Date UINT
12982–12999 32B6–32C7 Rate A Max MW, MVAR, MVA Rcvd Peak Demand Time and Date UINT
13000–13017 32C8–32D9 Rate B Max MW, MVAR, MVA Rcvd Peak Demand Time and Date UINT
13018–13035 32DA–32EB Rate C Max MW, MVAR, MVA Rcvd Peak Demand Time and Date UINT
13036–13053 32EC–32FD Rate D Max MW, MVAR, MVA Rcvd Peak Demand Time and Date UINT

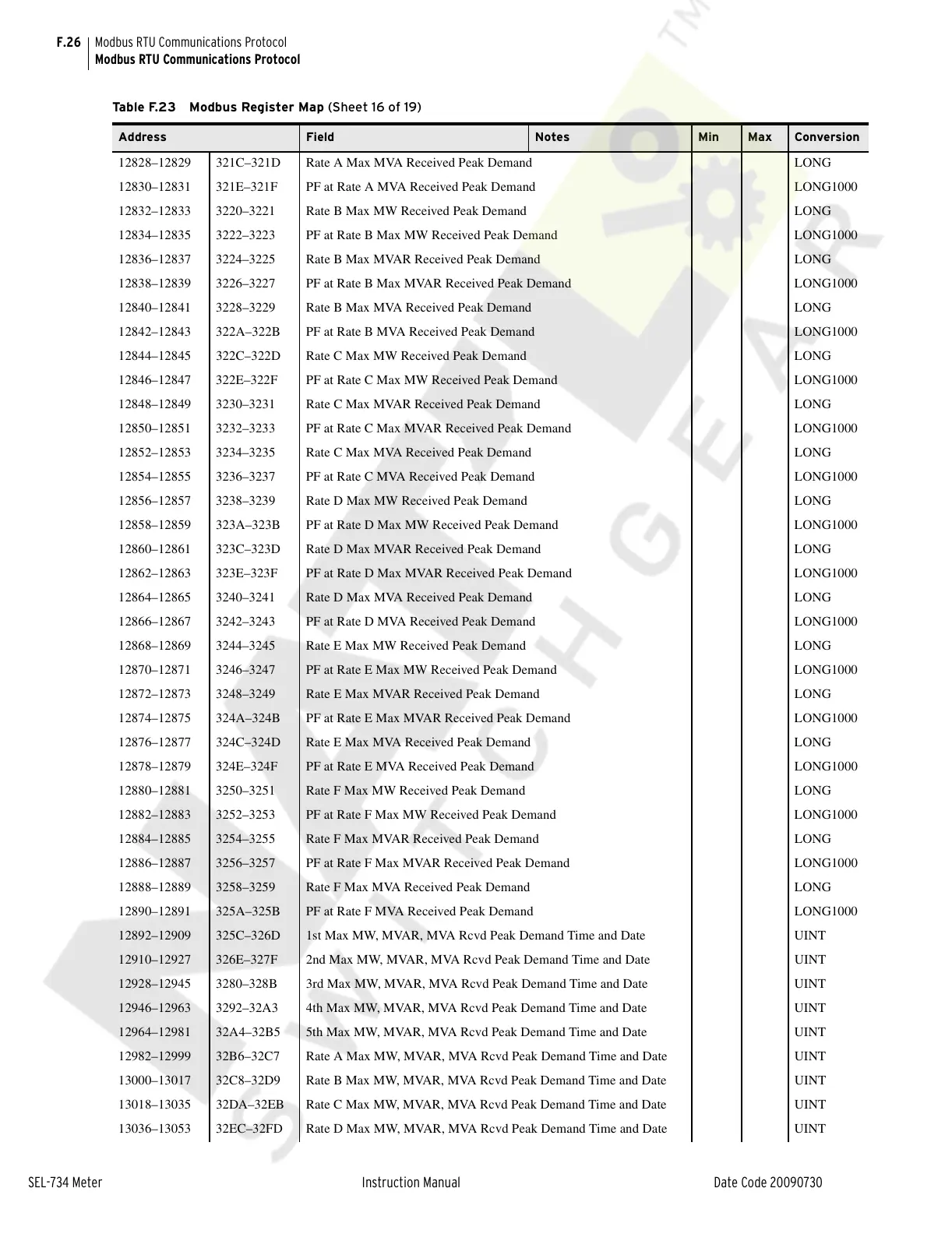

Table F.23 Modbus Register Map (Sheet 16 of 19)
Address Field Notes Min Max Conversion
