F.28
SEL-734 Meter Instruction Manual Date Code 20090730
Modbus RTU Communications Protocol
Modbus RTU Communications Protocol
24613–24619 6025–602B Load Profile Value 4 Name STRING
24620–24626 602C–6032 Load Profile Value 5 Name STRING
24627–24633 6033–6039 Load Profile Value 6 Name STRING
24634–24640 603A–6040 Load Profile Value 7 Name STRING
24641–24647 6041–6047 Load Profile Value 8 Name STRING
24648–24654 6048–604E Load Profile Value 9 Name STRING
24655–24661 604F–6055 Load Profile Value 10 Name STRING
24662–24668 6056–605C Load Profile Value 11 Name STRING
24669–24675 605D–6063 Load Profile Value 12 Name STRING
24676–246682 6064–606A Load Profile Value 13 Name STRING
24683–24689 606B–6071 Load Profile Value 14 Name STRING
24690–24696 6072–6078 Load Profile Value 15 Name STRING
24697–24703 6079–607F Load Profile Value 16 Name STRING
24704–25087 6080–61FF Reserved
25088 6200 Starting Record Time sec 0 59 UINT
25089 6201 min 0 59 UINT
25090 6202 hour 0 23 UINT
25091 6203 Starting Record Date day 1 31 UINT
25092 6204 month 1 12 UINT
25093 6205 year 2000 9999 UINT
25094 6206 Record 1 Status ENUM
25095–25100 6206–620C Record 1 Time and Date UINT
25101–25102 620D–620E Value 1 LONG100
25103–25104 620F–6210 Value 2 LONG100
25105–25106 6211–6212 Value 3 LONG100
25107–25108 6213–6214 Value 4 LONG100
25109–25110 6215–6216 Value 5 LONG100
25111–25112 6217–6218 Value 6 LONG100
25113–25114 6219–621A Value 7 LONG100
25115–25116 621B–621C Value 8 LONG100
25117–25118 621D–621E Value 9 LONG100
25119–25120 621F–6220 Value 10 LONG100
25121–25122 6221–6222 Value 11 LONG100
25123–25124 6223–6224 Value 12 LONG100
25125–25126 6225–6226 Value 13 LONG100
25127–25128 6227–6228 Value 14 LONG100
25129–25130 6229–622A Value 15 LONG100
25131–25132 622B–622C Value 16 LONG100
25133 6622D Record 2 Status ENUM
25134–25139 622E–6233 Record 2 Time and Date UINT
25140–25171 6234–6253 Record 2 Value 1–16 LONG100

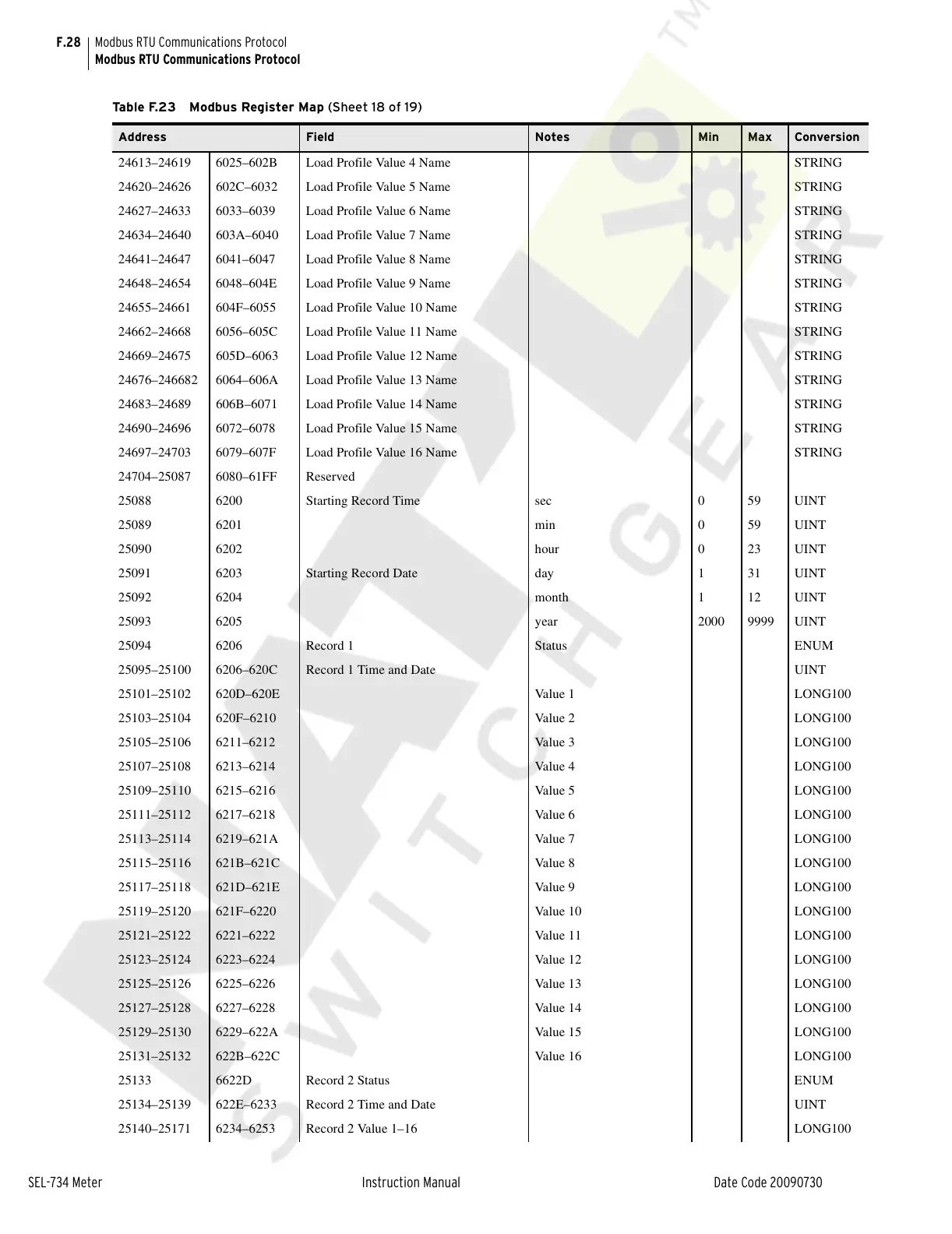

Table F.23 Modbus Register Map (Sheet 18 of 19)
Address Field Notes Min Max Conversion
