5.10
SEL-734 Meter Instruction Manual Date Code 20090730
Time-of-Use
TOU Setup
Rated Peak Demand Block
5 Max MW “Total” Peak Demands
5 Max MVAR “Total” Peak Demands
5 Max MVA “Total” Peak Demands
Rate X MW “Total” Peak Demand
a
PF at Max MW “Total” Peak Demand
a
PF at Rate X MW “Total” Peak Demand
a
Rate X MVAR “Total” Peak Demand
a
PF at Max MVAR “Total” Peak Demand
PF at Rate X MVAR “Total” Peak Demand
a
Rate X MVA “Total” Peak Demand
a
PF at Max MVA “Total” Peak Demand
PF at Rate X MVA “Total” Peak Demand
a
Rated Peak Demand Time Block
Timestamps of 5 Max MW “Total” Peak Demands
Timestamps of 5 Max MVAR “Total” Peak Demands
Timestamps of 5 Max MVA “Total” Peak Demands
Timestamp of Rate X MW “Total” Peak Demand
a
Timestamp of Rate X MVAR “Total” Peak Demand
a
Timestamp of Rate X MVA “Total” Peak Demand
a
Rated Cumulative Demand Block
MW “Total” Cumulative Peak Demand
Rate X MW “Total” Cumulative Peak Demand
a
MVAR “Total” Cumulative Peak Demand
Rate X MVAR “Total” Cumulative Peak Demand
a
MVA “Total” Cumulative Peak Demand
Rate X MVA “Total” Cumulative Peak Demand
a
Demand Reset Block
Max MW “Total” Peak Demand at last demand reset
Max MVAR “Total” Peak Demand at last demand reset
MW “Total” Peak Demand at Min Total PF at last demand reset
MW “Total” Peak Demand at Min Total PF since last demand reset
Min “Total” PF at last demand reset
Min “Total” PF since last demand reset
Average “Total” PF at last demand reset
Average “Total” PF since last demand reset
Number of demand resets

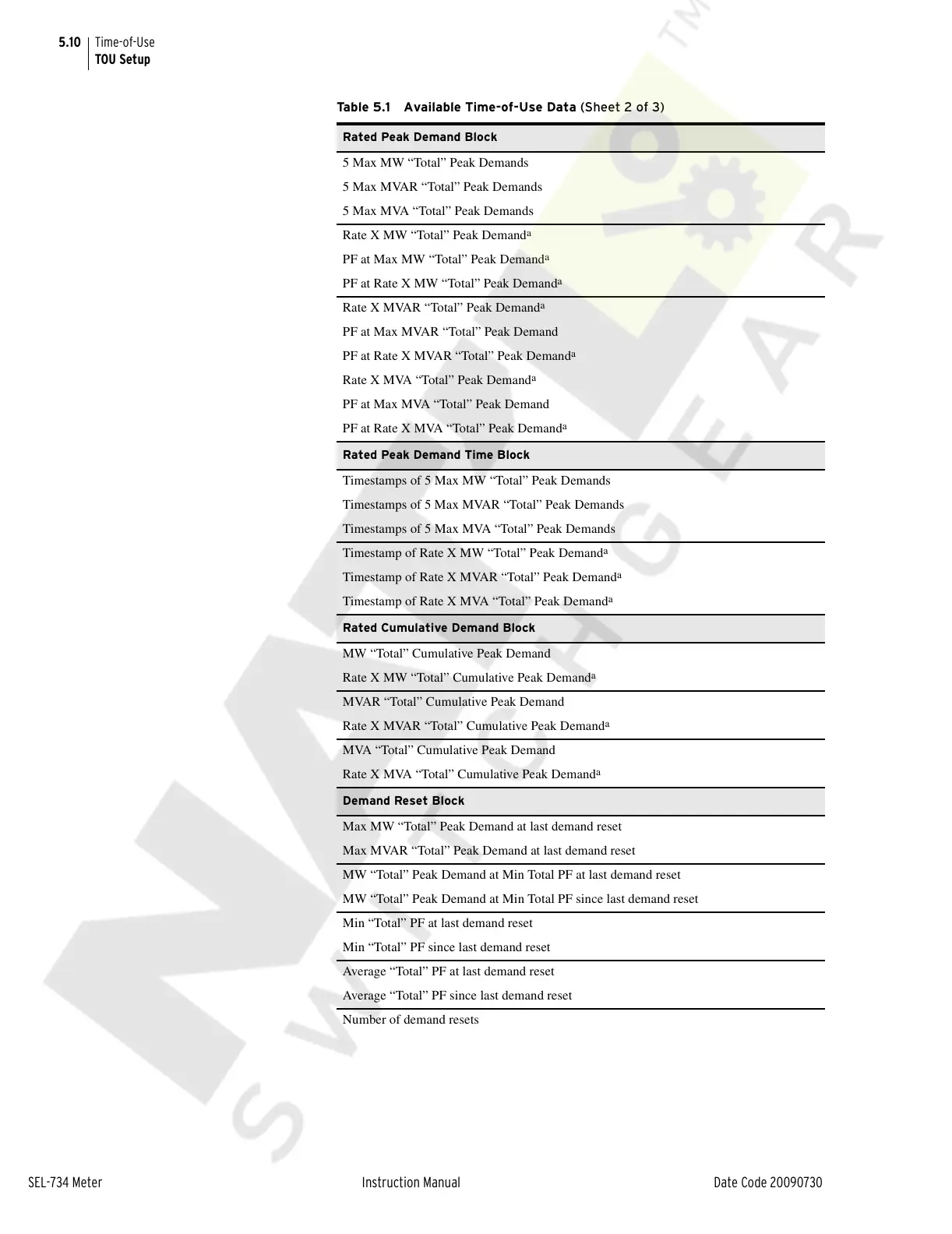

Table 5.1 Available Time-of-Use Data (Sheet 2 of 3)
